Toyota Yaris/hybrid(frp) NSP130 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
YARIS/HYBRID(FRP)
NSP130L-CHXGKW (2014)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

NSP130L-CHXGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017

Engine 1NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

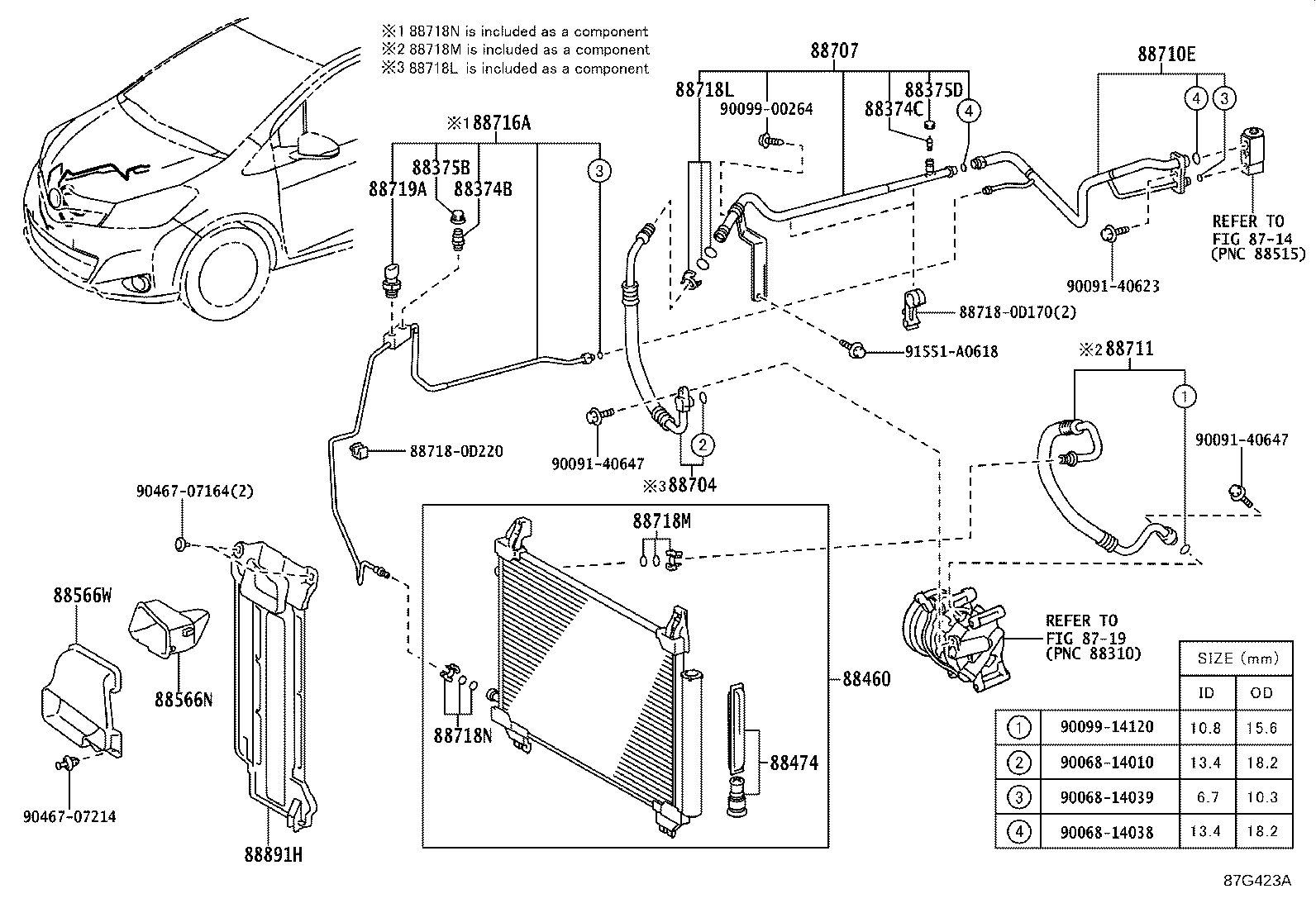

(1407-1505)NSP130

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30280	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30320	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88375-30320	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30280	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30320	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30310	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30310	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130	07/2014 - 05/2015	1
88460-0D200	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D200	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D510	KSP130,NSP130	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474 - DRYER, COOLER
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12010	KSP130,NSP130	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2014 - 05/2015	1
88474-17010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88566N - DUCT, COOLER AIR, NO.1
88566-0D010	NSP130..N,R;NSP130..5D..(G,S)	07/2014 - 03/2017	1
88566W - DUCT, COOLER AIR, NO.2
88566-0D060	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
88706 - PIPE SUB-ASSY, LIQUID
88706-0D640	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88706-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88706-0D640	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88706-0D400	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88706-0D640	KSP130,NSP130	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0D230	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D320	NSP130	07/2014 - 05/2015	1
88711-0D320	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 03/2017	1
88711-0D530	NSP130	05/2015 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D320	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D320	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D530	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88712-0D410	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712-0D410	NSP130	07/2014 - 07/2016	1
88712-0D410	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88891H - COVER, COOLER, NO.1
88891-0D190	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14009
90068-14010
90068-14038
90068-14039
90105-W0033
90105-W0152
90467-07164
90467-07214
94151-80641
Linked diagrams
8714
8719

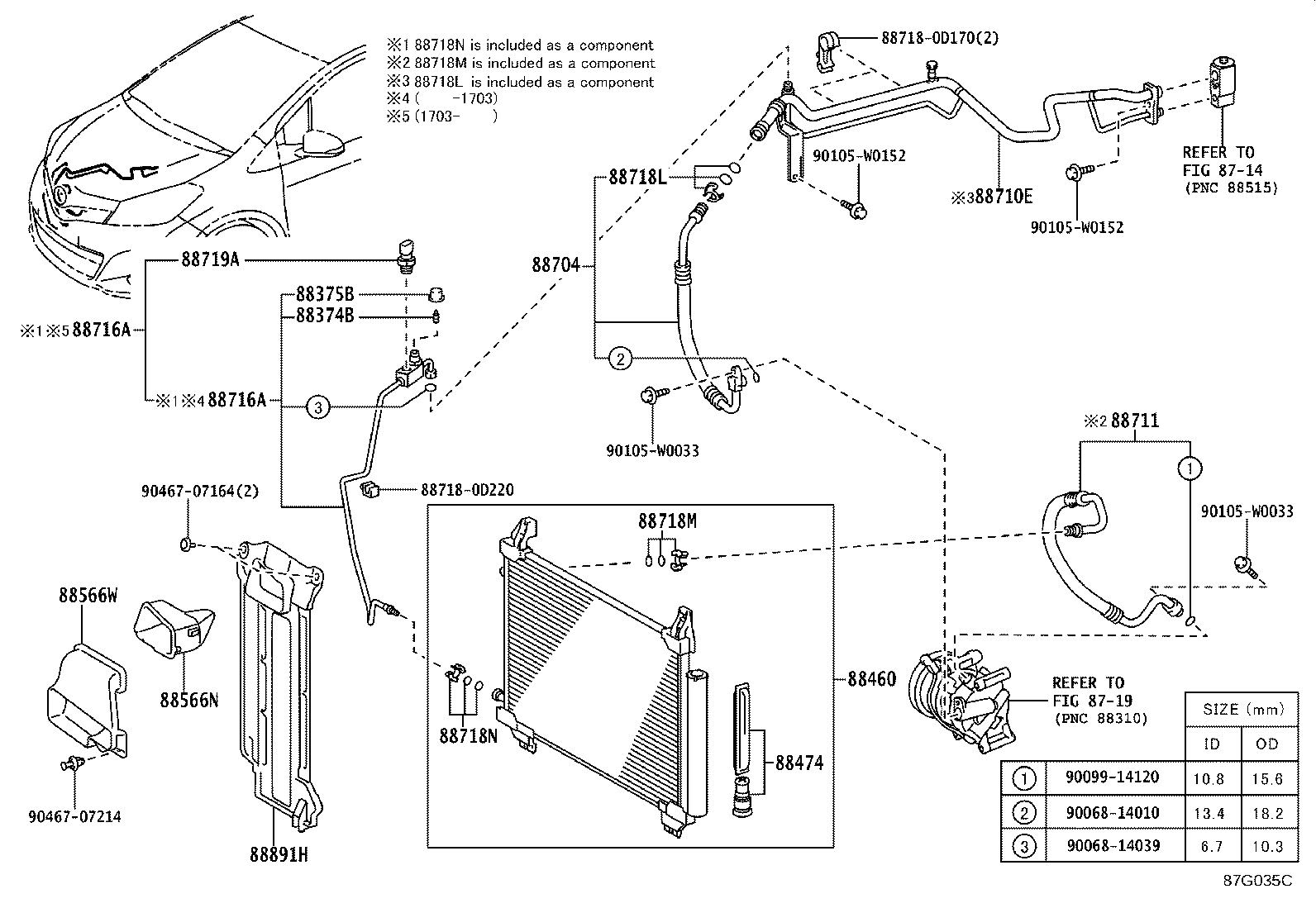

(1407- )NSP130

Click highlighted areas on diagram

DEALER OPTION,REFRIGERANT:R-134A

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NHP130,NSP130	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374C - VALVE, SERVICE, NO.2
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30280	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30320	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88375-30320	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30280	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30320	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30310	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130	07/2014 - 05/2015	1
88460-0D200	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D200	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D510	KSP130,NSP130	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474 - DRYER, COOLER
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12010	KSP130,NSP130	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2014 - 05/2015	1
88474-17010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88566N - DUCT, COOLER AIR, NO.1
88566-0D010	NSP130..N,R;NSP130..5D..(G,S)	07/2014 - 03/2017	1
88566W - DUCT, COOLER AIR, NO.2
88566-0D060	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0D440	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0D440	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0D440	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88706-0D440	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0D230	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D320	NSP130	07/2014 - 05/2015	1
88711-0D320	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 03/2017	1
88711-0D530	NSP130	05/2015 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D320	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D320	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D530	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88712-0D410	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712-0D410	NSP130	07/2014 - 07/2016	1
88712-0D410	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D450	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0DB50	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88706-0DB50	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88891H - COVER, COOLER, NO.1
88891-0D190	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14038
90091-40623
90091-40647
90099-14119
90099-14120
90099-14121
90179-06274
90467-07164
90467-07214
91551-A0618
Linked diagrams
8714
8719

(1505- )NSP130

Click highlighted areas on diagram

REFRIGERANT:R-134A

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NHP130,NSP130	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374C - VALVE, SERVICE, NO.2
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30280	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30320	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88375-30320	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30280	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30320	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30310	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30310	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130	07/2014 - 05/2015	1
88460-0D200	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D200	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D510	KSP130,NSP130	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474 - DRYER, COOLER
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12010	KSP130,NSP130	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2014 - 05/2015	1
88474-17010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88566N - DUCT, COOLER AIR, NO.1
88566-0D010	NSP130..N,R;NSP130..5D..(G,S)	07/2014 - 03/2017	1
88566W - DUCT, COOLER AIR, NO.2
88566-0D060	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
88706 - PIPE SUB-ASSY, LIQUID
88706-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130	07/2014 - 05/2015	1
88706-0D400	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88706-0D640	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88706-0D400	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88706-0D640	KSP130,NSP130	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88706-0D640	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88706-0D640	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0D230	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D320	NSP130	07/2014 - 05/2015	1
88711-0D320	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 03/2017	1
88711-0D530	NSP130	05/2015 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D320	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D320	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D530	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88712-0D410	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88712-0D410	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88712-0D410	NSP130	07/2014 - 07/2016	1
88712-0D410	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88718M - CLAMP, PIPING
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130	05/2015 - 03/2017	1
88718N - CLAMP, PIPING
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E150	KSP130,NSP130	05/2015 - 03/2017	1
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88891H - COVER, COOLER, NO.1
88891-0D190	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14010
90068-14038
90068-14039
90099-14120
90105-W0033
90105-W0152
90467-07164
90467-07214
94151-80641
Linked diagrams
8714
8719

(1607- )NSP130

Click highlighted areas on diagram

REFRIGERANT:R-1234YF

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NHP130,NSP130	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30280	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30320	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88375-30320	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30280	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30320	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130	07/2014 - 05/2015	1
88460-0D200	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D200	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D510	KSP130,NSP130	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474 - DRYER, COOLER
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12010	KSP130,NSP130	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2014 - 05/2015	1
88474-17010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88566N - DUCT, COOLER AIR, NO.1
88566-0D010	NSP130..N,R;NSP130..5D..(G,S)	07/2014 - 03/2017	1
88566W - DUCT, COOLER AIR, NO.2
88566-0D060	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D130	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88704-0D130	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88704-0D130	NSP130	07/2016 - 03/2017	1
88704-0D130	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0D340	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130	07/2016 - 03/2017	1
88710-0D360	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D360	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D320	NSP130	07/2014 - 05/2015	1
88711-0D320	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 03/2017	1
88711-0D530	NSP130	05/2015 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D320	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D320	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D530	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D450	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0DB50	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88706-0DB50	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D450	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0DB50	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88706-0DB50	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88718L - CLAMP, PIPING
88718-52280	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88718M - CLAMP, PIPING
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130	05/2015 - 03/2017	1
88718N - CLAMP, PIPING
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E150	KSP130,NSP130	05/2015 - 03/2017	1
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88891H - COVER, COOLER, NO.1
88891-0D190	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14010
90068-14039
90099-14120
90105-W0033
90105-W0152
90467-07164
90467-07214
Linked diagrams
8714
8719

(1607- )NSP130

Click highlighted areas on diagram

DEALER OPTION,REFRIGERANT:R-1234YF

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NHP130,NSP130	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88374-30010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88374-30020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30020	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374C - VALVE, SERVICE, NO.2
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88374-30010	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88374-30010	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88374-30010	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30280	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30280	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30320	KSP130,NHP130,NLP130,NSP130	07/2016 - 03/2017	1
88375-30320	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30280	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88375-30280	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30320	NLP130..LHD;KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30320	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88375-30310	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	NLP130..LHD;KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	NLP130..LHD;KSP130,NHP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30310	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88375-30290	KSP130,NLP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460 - CONDENSER ASSY, COOLER
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130	07/2014 - 05/2015	1
88460-0D200	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88460-0D400	KSP130,NSP130	05/2015 - 07/2016	1
88460-0D200	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D200	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88460-0D510	KSP130,NSP130	07/2016 - 03/2017	1
88460-0D400	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474 - DRYER, COOLER
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88474-12010	KSP130,NSP130	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2014 - 05/2015	1
88474-17010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88474-17010	KSP130,NSP130	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-12010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88474-17010	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88566N - DUCT, COOLER AIR, NO.1
88566-0D010	NSP130..N,R;NSP130..5D..(G,S)	07/2014 - 03/2017	1
88566W - DUCT, COOLER AIR, NO.2
88566-0D060	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D130	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88704-0D130	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88704-0D130	NSP130	07/2016 - 03/2017	1
88704-0D130	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0D230	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130	07/2014 - 07/2016	1
88707-0D230	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D570	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88707-0D230	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)	07/2016 - 03/2017	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0D340	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D340	KSP130,NSP130	07/2016 - 03/2017	1
88710-0D360	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88710-0D360	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D320	NSP130	07/2014 - 05/2015	1
88711-0D320	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 05/2015	1
88711-0D320	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 05/2015	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	05/2015 - 03/2017	1
88711-0D530	NSP130	05/2015 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D320	NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D320	NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88711-0D530	NSP130..N,R;NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	05/2015 - 03/2017	1
88711-0D530	NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0D450	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88706-0DB50	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88706-0DB50	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88716-0D860	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88716-0D450	KSP130,NSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88718L - CLAMP, PIPING
88718-52280	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130	07/2016 - 03/2017	1
88718-52280	KSP130,NSP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2016 - 03/2017	1
88718M - CLAMP, PIPING
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88718-1E140	KSP130,NSP130	05/2015 - 03/2017	1
88718N - CLAMP, PIPING
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	05/2015 - 07/2016	1
88718-1E150	KSP130,NSP130	05/2015 - 03/2017	1
88718-1E150	KSP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION	05/2015 - 07/2016	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY	07/2014 - 03/2017	1
88719-33020	KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&FRONTAIR CONDITIONER-DEALER OPTION	07/2014 - 07/2016	1
88891H - COVER, COOLER, NO.1
88891-0D190	KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
88718-0D170
88718-0D220
90068-14010
90068-14038
90068-14039
90091-40623
90091-40647
90099-00264
90099-14120
90467-07164
90467-07214
91551-A0618
Linked diagrams
8714
8719

NSP130L-CHXGKW (2014)

(1407-1505)NSP130

(1407- )NSP130

(1505- )NSP130

(1607- )NSP130

(1607- )NSP130

Part Price Details
