NSP130L-CHXGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NSP130..CVT

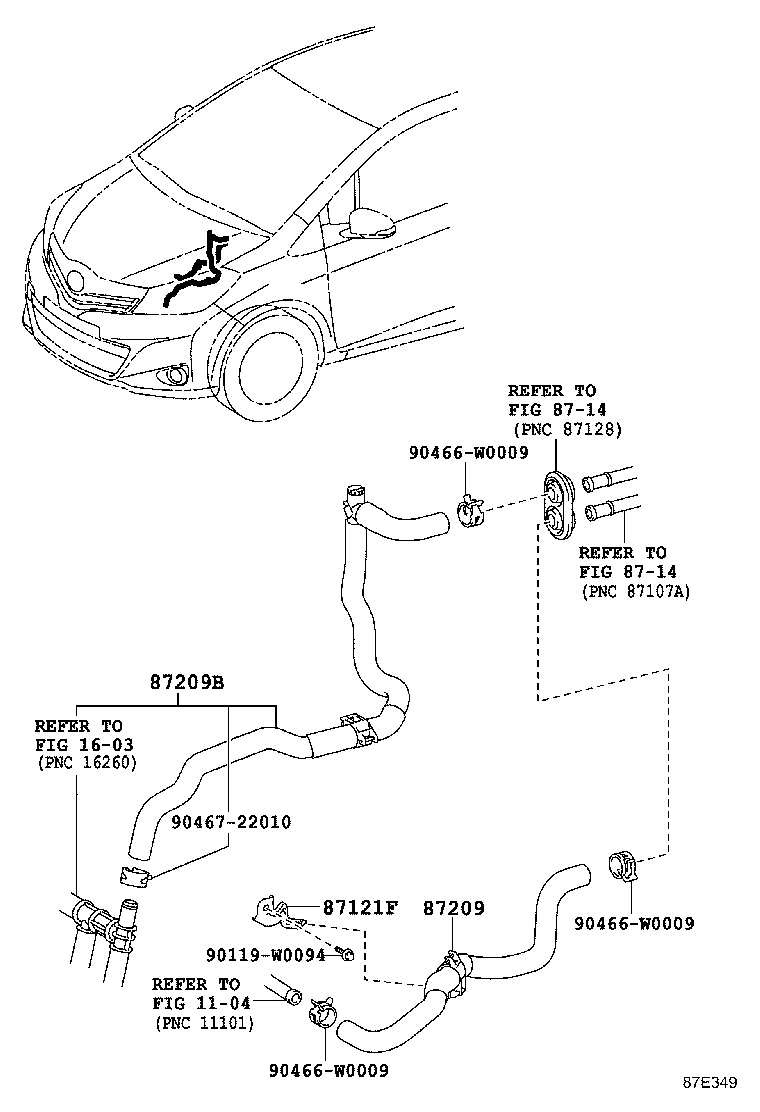

Click highlighted areas on diagram

diagram 1104 1603 87121F 8714 8714 87209 87209B 90119W0094 90466W0009 90466W0009 90466W0009 9046722010
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-0D050

NSP130..N,R;NSP130..5D..(G,S)

 1
87209 - HOSE SUB-ASSY, WATER
87209-0D190

NSP130..N,R;NSP130..5D..(G,S)

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-0D210

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
Common parts
90119-W0094
90466-W0009
90467-22010
Linked diagrams
1104
1603
8714
