NSP130L-CHXGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NSP13#..CVT

Click highlighted areas on diagram

K312,K411

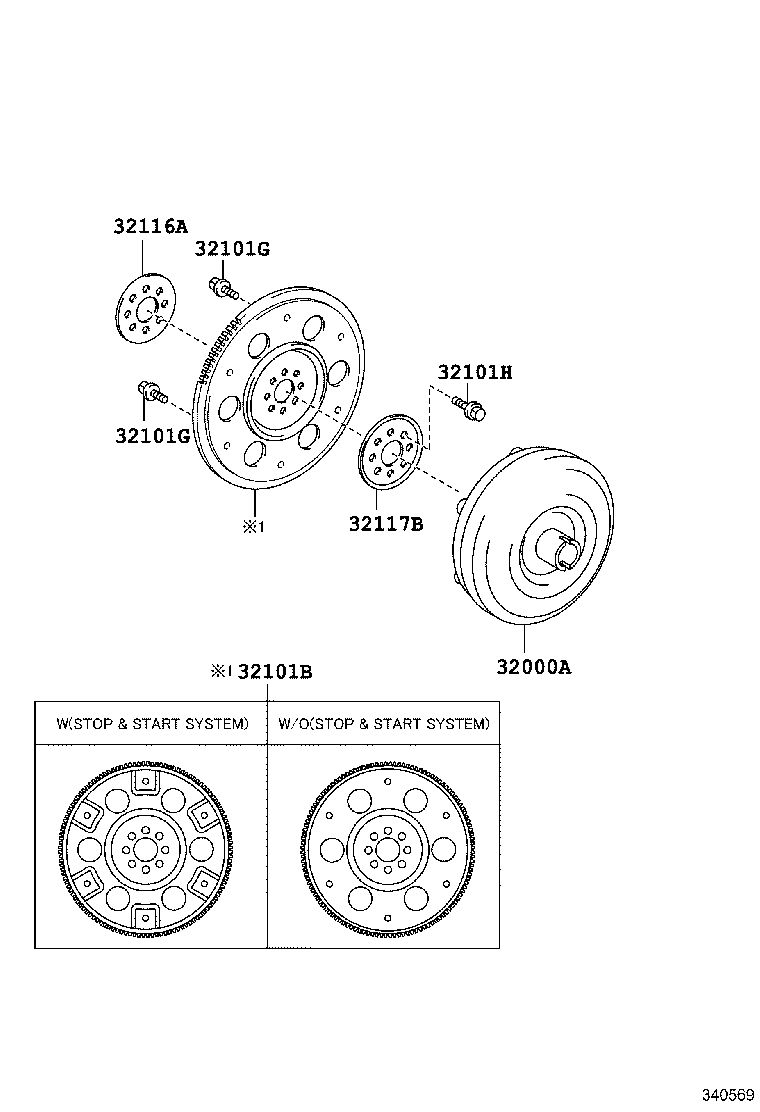

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-52160

NSP130..CVT

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-52090

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

WITH(STOP & START SYSTEM)

 1
32111-52120

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

*8-1.25PX12-8,SILVER WHITE

 5
90109-08113

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

*8-1.25PX12-8.4,BLACK

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

*8-1.25PX12-8,SILVER WHITE

 5
90109-08113

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

*8-1.25PX12-8.4,BLACK

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-12030

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-12040

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
