NSP130L-CHXGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

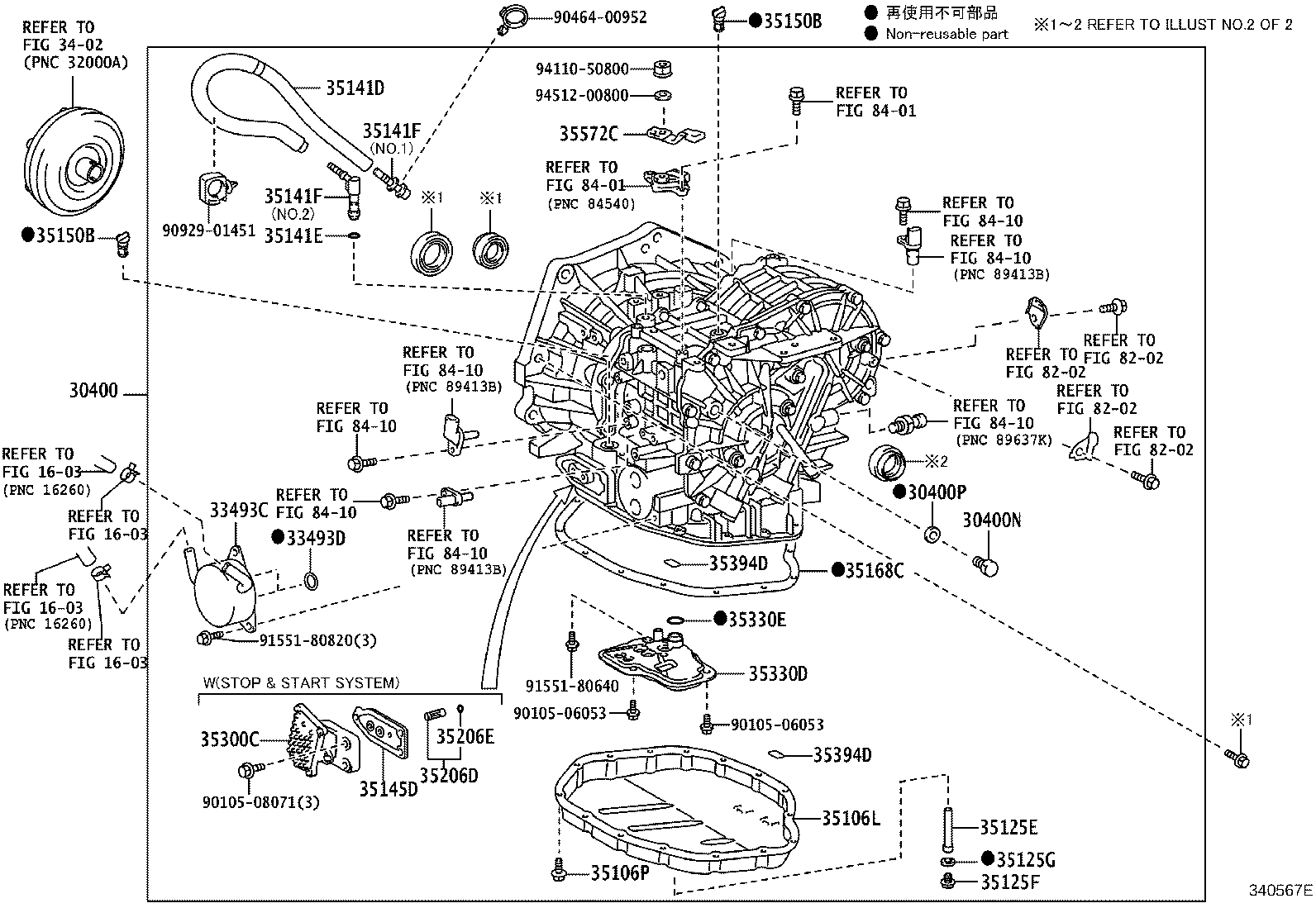

ILLUST NO. 1 OF 2(1407- )NSP130..CVT

Click highlighted areas on diagram

K411

diagram 1603 1603 1603 1603 30400 30400N 30400P 33493C 33493D 3402 35106L 35106P 35125E 35125F 35125G 35141D 35141E 35141F 35141F 35145D 35150B 35150B 35168C 35206D 35206E 35300C 35330D 35330E 35394D 35394D 35572C 8202 8202 8202 8202 8401 8401 8410 8410 8410 8410 8410 8410 8410 9010506053 9010506053 9010508071 9046400952 9092901451 9155180640 9155180820 9411050800 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-52190

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

K411

 1
30400-52260

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

K411,WITH(STOP & START SYSTEM)

 1
30400N - PLUG, REFILL(CVT)
90341-18077

NSP130..CVT

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

NSP130..CVT

 1
33493C - COOLER, TRANSMISSION OIL
33493-52030

NSP130..CVT

 1
33493D - RING, O (FOR TRANSMISSION OIL COOLER)
90301-20012

NSP130..CVT

 2
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-52090

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 15
35125E - TUBE, OVERFLOW(CVT)
35125-52200

NSP130..CVT

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

NSP130..CVT

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

NSP130..CVT

 1
35141D - HOSE(FOR BREATHER PLUG)
35121-52030

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-08015

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03209

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

NO.2:REFER ILLUST.

 1
90930-03149

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

NO.1:REFER ILLUST.

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03209

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

NO.2:REFER ILLUST.

 1
90930-03149

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

NO.1:REFER ILLUST.

 1
35145D - GASKET, TRANSAXLE CASE
35145-52020

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

WITH(STOP & START SYSTEM)

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

NSP130..CVT

 2
35150-48010

NSP130..CVT

 2
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010

NSP130..CVT

 2
35150-48010

NSP130..CVT

 2
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-52030

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35206D - VALVE SUB-ASSY, CHECK, NO.1
35206-52020

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

WITH(STOP & START SYSTEM)

 1
35206E - RING, O(FOR CHECK VALVE SUB-ASSY NO.1)
90301-08015

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

WITH(STOP & START SYSTEM)

 1
35300C - PUMP ASSY, OIL W/MOTOR
35300-52021

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

WITH(STOP & START SYSTEM)

 1
35330D - STRAINER ASSY, OIL
35330-52060

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35330E - RING, O (FOR OIL STRAINER)
90301-22014

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 2
35394D - MAGNET, OIL CLEANER(CVT)
35394-48010

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 2
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-52070

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
Common parts
90105-06053
90105-08071
90464-00952
90929-01451
91551-80640
91551-80820
94110-50800
94512-00800
Linked diagrams
1603
3402
8202
8401
8410

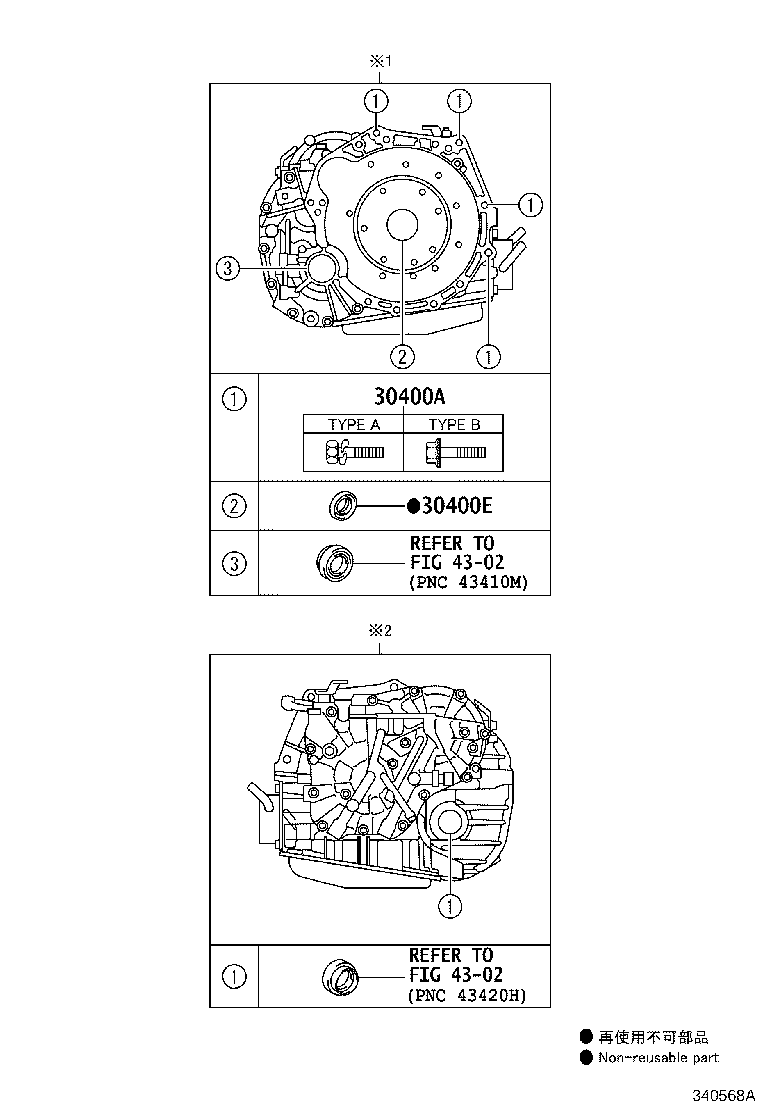

ILLUST NO. 2 OF 2(1407- )NSP130..CVT

Click highlighted areas on diagram

K411

diagram 30400A 30400E 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-W0097

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

TYPE A:REFER ILLUST.

 4
90105-W0046

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

(L),T/P B:REF.ILLUST

 4
91552-81245

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

(J),T/P B:REF.ILLUST

 4
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-42039

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
Linked diagrams
4302
