NSP130L-CHXGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NSP130..LHD..CVT

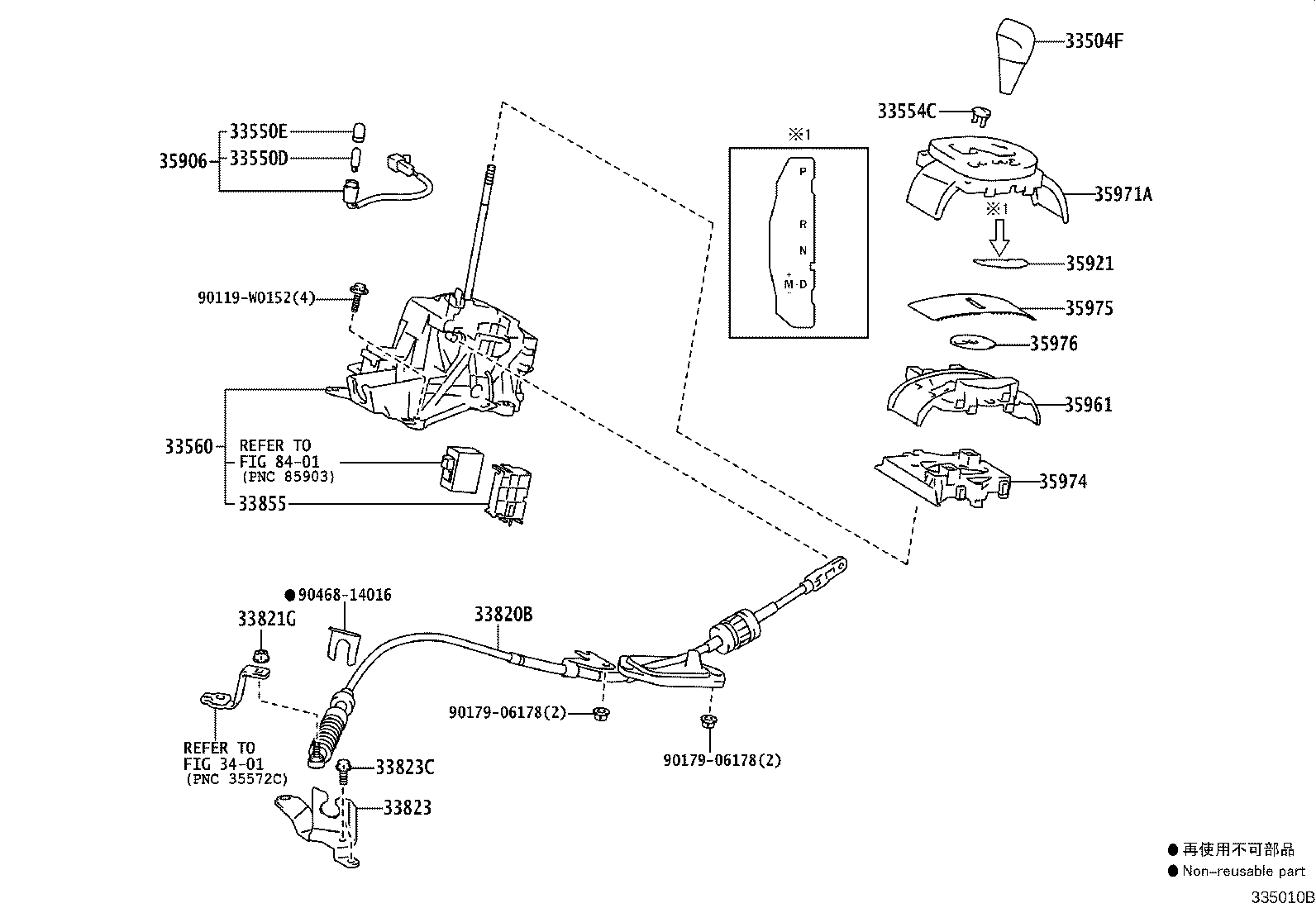

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 33820B 33821G 33823 33823C 33855 3401 35906 35921 35961 35971A 35974 35975 35976 8401 90119W0152 9017906178 9017906178 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D130C0

NLP130,NSP130..R

BLACK,TRIM0#

 1
33504-0D230C3

NSP130..CVT..S

EU/INT PIANOBLACK/EUBLACK,TRIM2#

 1
33504-0D490B1

NSP130..CVT..G

SILVER/EU BLACK,TRIM2#,5#

 1
33504-0D130C2

NLP130,NSP130..R

EU BLACK,TRIM0#

 1
33504-0D490B1

NSP130..CVT..N

SILVER/EU BLACK,TRIM0#,1#,2#

 1
33504-0D270B2

NLP130,NSP130..LHD..R

SHIFT LEVER & KNOB-LEATHER,SILVER/EU BLACK,TRIM0#

 1
33504-0D240C2

NSP130..CVT..S

EU PIANO BLACK/BLACK/GRAY,TRIM23,24

 1
33504-0D240C2

NSP130..CVT..G

EU PIANO BLACK/BLACK/GRAY,TRIM2#,3#,4#

 1
33504-0D240C1

NHP130..G;NSP130..CVT..S

EU PIANO BLACK/BLACK/RED,TRIM29

 1
33504-0D240C2

NSP130..5D..CVT..N

SALES PACK,EU PIANO BLACK/BLACK/GRAY,TRIM2#

 1
33504-0D240C2

NSP130..5D..CVT..N

BLACK PACK,EU PIANO BLACK/BLACK/GRAY,TRIM2#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52010

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-52100

NHP130..LHD;NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52510

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52750

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NHP130;NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52100

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0027

NSP130..CVT

 2
33855 - COVER, SHIFT LOCK UNIT
33855-52020

NHP130;NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52180

NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-52250

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
35961 - HOUSING, POSITION INDICATOR LAMP
35961-52020

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-52660

NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52150

NHP130..LHD;NSP130..LHD..CVT..N;NSP130..LHD..5D..CVT..(G,S)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52130

NHP130;NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52130

NHP130;NSP130..CVT..N;NSP130..5D..CVT..(G,S)

 1
Common parts
90119-W0152
90179-06178
90468-14016
Linked diagrams
3401
8401
