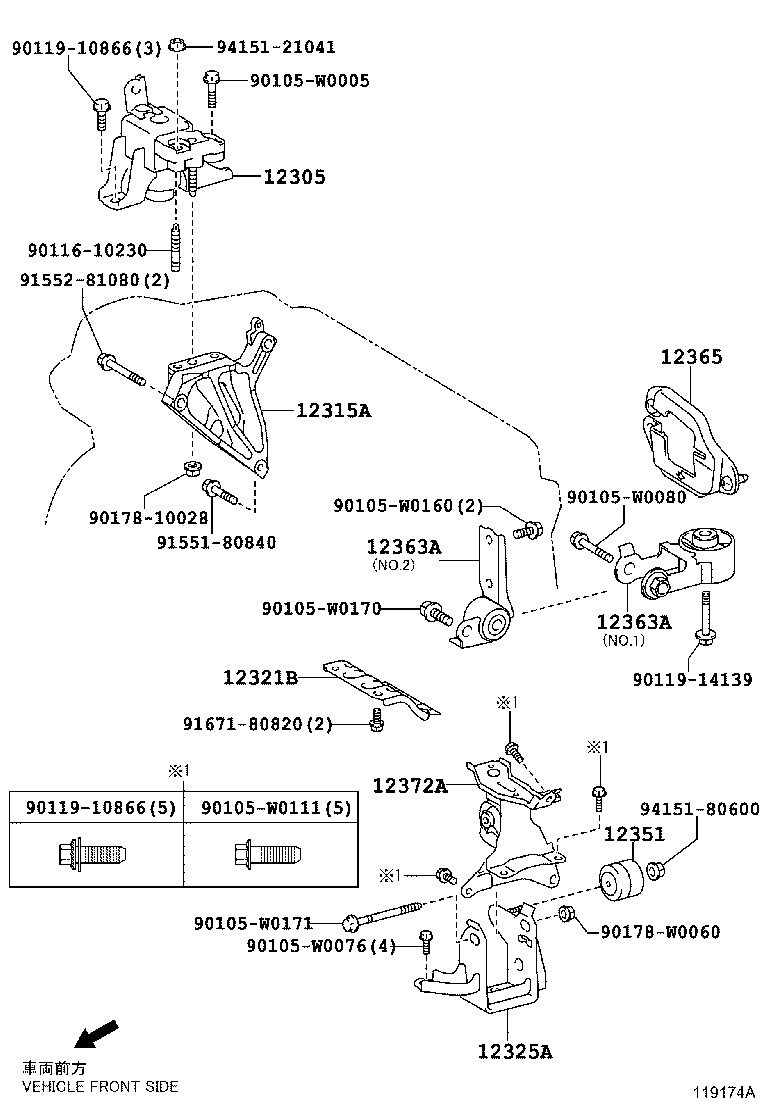

Toyota Yaris/hybrid(frp) NSP130 MOUNTING

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y050	1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)	07/2014 - 03/2017	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-47040	1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)	07/2014 - 03/2017	1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-52070	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)	07/2014 - 03/2017	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y070	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)	07/2014 - 03/2017	1
12351 - DAMPER, ENGINE MOUNTING
12351-0Y040	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)	07/2014 - 03/2017	1
12363A - ROD, ENGINE MOVING CONTROL
12364-47010	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S) NO.2:REFER ILLUST.	07/2014 - 03/2017	1
12363-23010	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S) NO.1:REFER ILLUST.	07/2014 - 03/2017	1
12363A - ROD, ENGINE MOVING CONTROL
12364-47010	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S) NO.2:REFER ILLUST.	07/2014 - 03/2017	1
12363-23010	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S) NO.1:REFER ILLUST.	07/2014 - 03/2017	1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010	1NZFXE..NHP130..LHD;1NDTV,1NRFE..NLP130,NSP130..LHD..(N,R);1NDTV,1NRFE..NLP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT)	07/2014 - 03/2017	1
12365-40010	1NZFXE..NHP130..LHD;1NDTV,1NRFE..NLP130,NSP130..LHD..(N,R);1NDTV,1NRFE..NLP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)	07/2014 - 03/2017	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-47110	1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)	07/2014 - 03/2017	1
Common parts
90105-W0005
90105-W0076
90105-W0080
90105-W0111
90105-W0160
90105-W0170
90105-W0171
90116-10230
90119-10866
90119-14139
90178-10028
90178-W0060
91551-80840
91552-81080
91671-80820
94151-21041
94151-80600

NSP130L-CHXGKW (2014)

(1407- )1NRFE..CVT
