NSP130L-CHFSKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505-1703)

Click highlighted areas on diagram

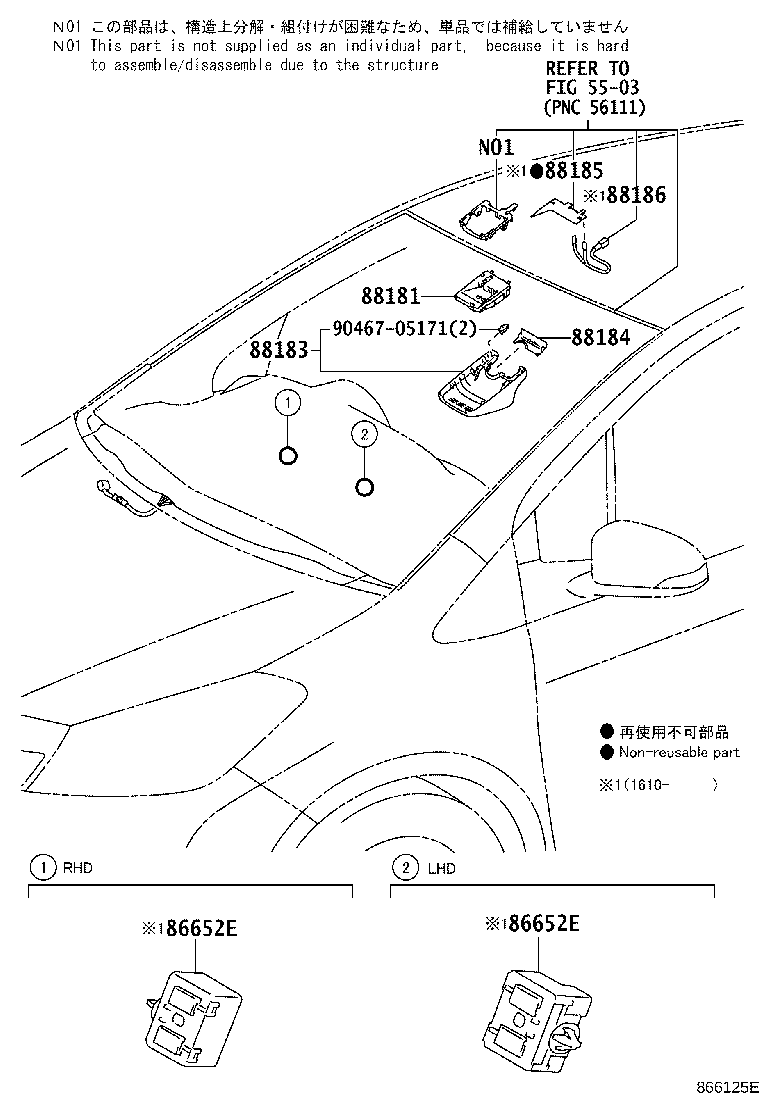

diagram 5503 86652E 86652E 88181 88183 88184 88185 88186 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

PRE-COLLISION SYSTEM-WITH

 1
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

PRE-COLLISION SYSTEM-WITH

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-0D030

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
88181-0D040

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
88181-0D010

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

PRE-COLLISION SYSTEM-WITH

 1
88183 - COVER, PRE-COLLISION CITY
88183-52060

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
88183-52020

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

PRE-COLLISION SYSTEM-WITH

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-52020

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

PRE-COLLISION SYSTEM-WITH

 1
88184-52060

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
88185 - HEATER, PRE-COLLISION CITY
88185-0D010

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
88186 - WIRE, PRE-COLLISION CITY HEATER
88186-0D010

KSP130,NHP130,NLP130,NSP130

PRE-COLLISION SYSTEM-WITH

 1
Common parts
90467-05171
Linked diagrams
5503
