NSP130L-CGFGKW (2014)
Toyota Yaris/Hybrid(Frp)
(1407-1703)LHD

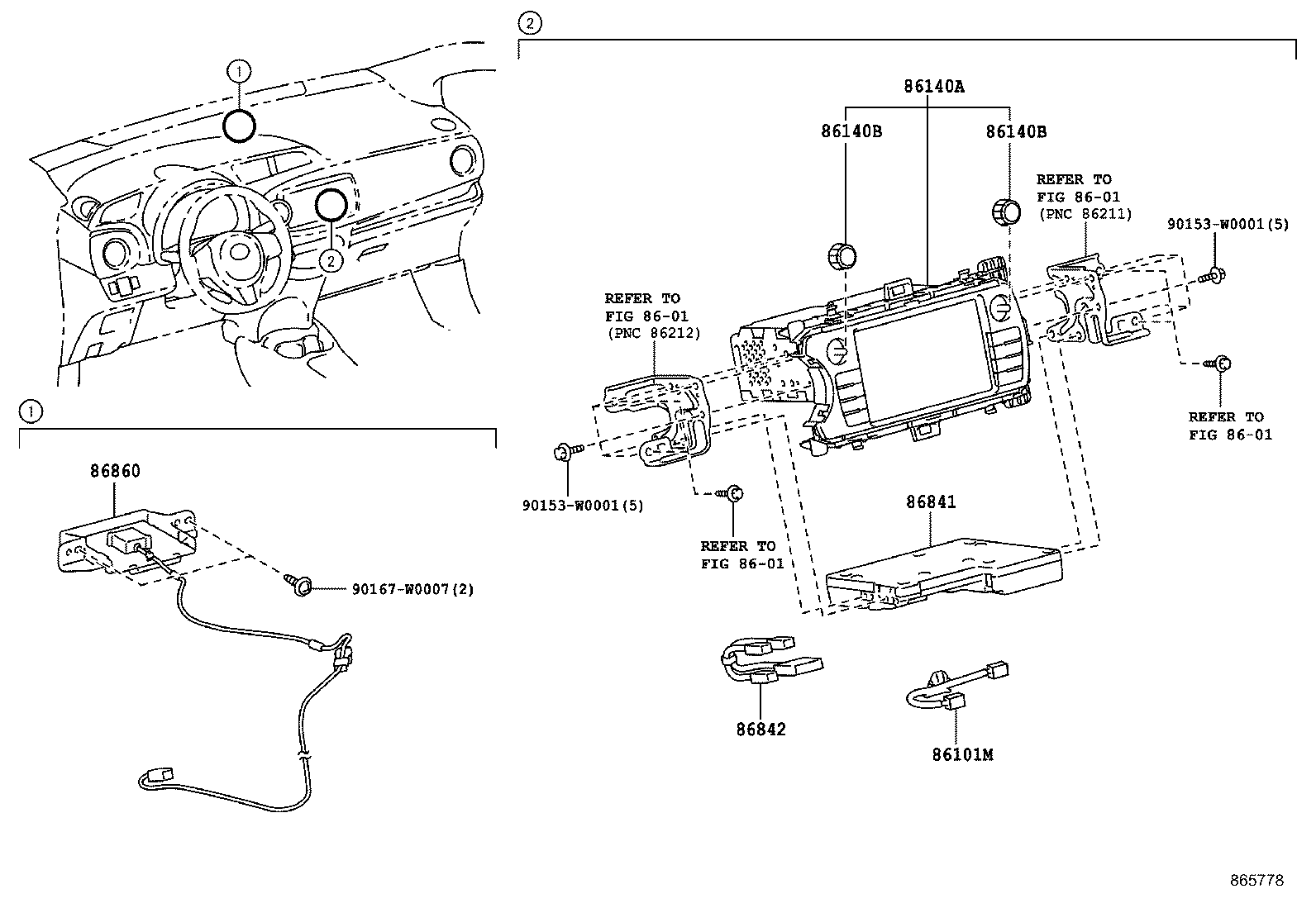

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86705-02070 |
KSP130,NHP130,NSP130..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86705-02070 |
KSP130,NHP130,NLP130,NSP130..G,N,S EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-0D100 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) FUJITSU TEN |
1 | ||
| 86140-0D140 |
KSP130,NLP130,NSP130..LHD..5D..G;KSP130,NLP130,NSP130..LHD..3D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 86140-0D090 |
KSP130,NLP130,NSP130..LHD..(G,N,S) FUJITSU TEN,EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86140-0D130 |
KSP130,NLP130,NSP130..LHD..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86140-0D150 |
KSP130,NLP130,NSP130..LHD..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86140-0D150 |
KSP130,NLP130,NSP130..LHD..5D..G;KSP130,NLP130,NSP130..LHD..3D..(G,N,S) FUJITSU TEN,AUDIO-*DA & *BT & 8SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D110 |
KSP130,NLP130,NSP130..LHD..(G,N,S) FUJITSU TEN,ANTENNA-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86140-0D100 |
KSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S) FUJITSU TEN |
1 | ||
| 86140-0D120 |
KSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S) FUJITSU TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D100 |
KSP130,NLP130,NSP130..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER |
1 | ||
| 86140-0D120 |
KSP130,NLP130,NSP130..LHD..R FUJITSU TEN,AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
1 | ||
| 86140-0D120 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) FUJITSU TEN,ANTENNA-WITH(DAB) |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25242 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 90011-25242 |
NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 90011-25242 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
2 | ||
| 90011-25242 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25242 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 90011-25242 |
NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 90011-25242 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER&ANTENNA-WITH(DAB) |
2 | ||
| 90011-25242 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER |
2 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-0W012 |
KSP130,NHP130,NLP130,NSP130..G,N,S EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86840-0W013 |
KSP130,NHP130,NLP130,NSP130..G,N,S EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86840-02014 |
KSP130,NHP130,NSP130..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86840-02013 |
KSP130,NHP130,NSP130..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-12010 |
KSP130,NHP130,NLP130,NSP130..G,N,S EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86842-12010 |
KSP130,NHP130,NSP130..LHD..(G,N,S) TURKEY SPEC&EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-0D020 |
KSP130,NHP130,NLP130,NSP130..G,N,S EMV & NAVIGATION SYSTEM-WITH(EXTENSION BOX) |
1 | ||
| Common parts | ||||
| 90153-W0001 | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8601 | ||||
