NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1703)NSP130

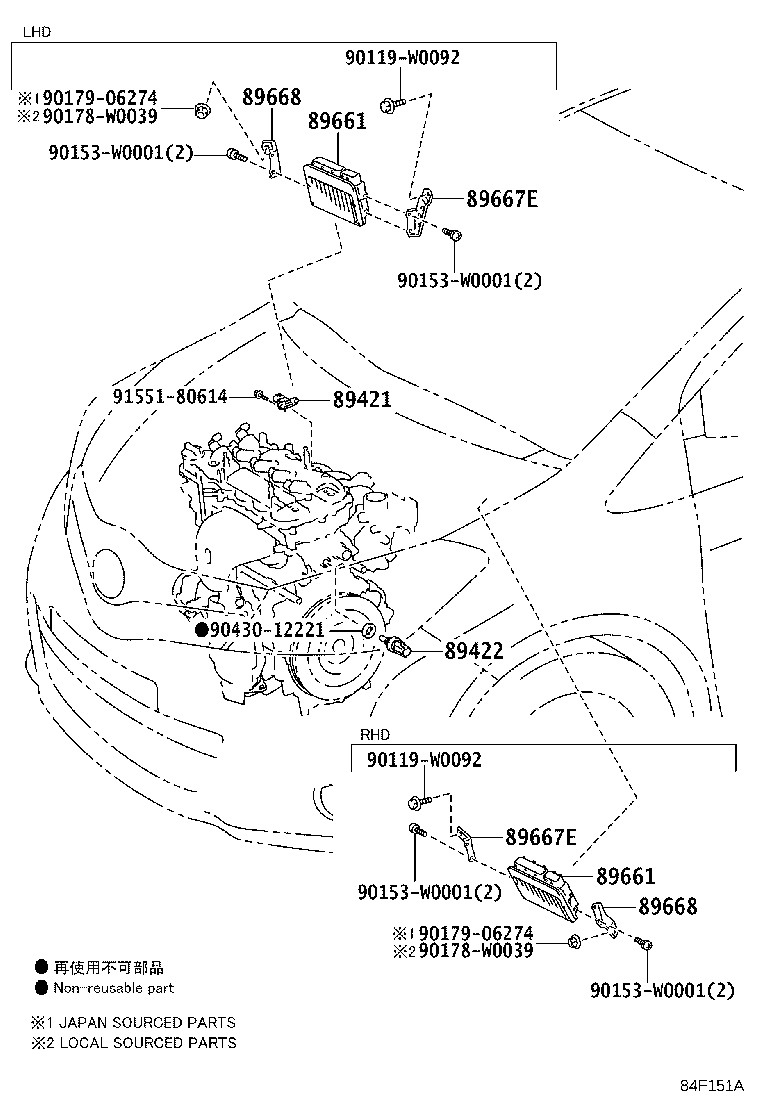

Click highlighted areas on diagram

diagram 89421 89422 89661 89661 89667E 89667E 89668 89668 90119W0092 90119W0092 90153W0001 90153W0001 90153W0001 90153W0001 90178W0039 90178W0039 9017906274 9017906274 9043012221 9155180614
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

NSP130

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)

 1
89422-33030

KSP130,NSP130..3D..(G,S)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DQ70

NSP130..LHD..6F

WITH(STOP & START SYSTEM)

 1
89661-0DQ90

NSP130..6F

 1
89661-0DR00

NSP130..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DQ70

NSP130..LHD..6F

WITH(STOP & START SYSTEM)

 1
89661-0DQ90

NSP130..6F

 1
89661-0DR00

NSP130..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0D110

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
89667-0D110

NSP130..LHD..3D..(G,S)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0D110

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
89667-0D110

NSP130..LHD..3D..(G,S)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D110

NSP130..LHD..3D..(G,S)

 1
89668-0D110

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D110

NSP130..LHD..3D..(G,S)

 1
89668-0D110

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
Common parts
90119-W0092
90153-W0001
90178-W0039
90179-06274
90430-12221
91551-80614
