NSP130L-CGFGKW (2014)
Toyota Yaris/Hybrid(Frp)
ILLUST NO. 1 OF12(1407- )KSP130,NLP130,NSP13#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0UG70 |
NSP130..LHD..6F..(G,S) |
1 | ||
| 82111-0UG50 |
NSP130..LHD..6F..(G,S) HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UG50 |
NSP130..LHD..6F..(N,R) |
1 | ||
| 82111-0UG70 |
NSP130..LHD..6F..(N,R) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UG70 |
NSP130..LHD..6F..(N,R) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UG60 |
NSP130..LHD..6F..(N,R) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 82111-0UG70 |
NSP130..LHD..6F..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UG60 |
NSP130..LHD..6F..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UG70 |
NSP130..LHD..6F..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UJ40 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UK50 |
NSP130..LHD..6F..(N,R) GERMANY SPEC |
1 | ||
| 82111-0UK60 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82111-0UK60 |
NSP130..LHD..6F..(G,S) GERMANY SPEC |
1 | ||
| 82111-0UK50 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82111-0UK60 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82111-0UZ80 |
NSP130..LHD..6F..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82111-0UZ80 |
NSP130..LHD..6F..(N,R) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82111-0UZ80 |
NSP130..LHD..6F..(G,S) REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82111-0UZ80 |
NSP130..LHD..6F..(N,R) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D100 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D100 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82111-0UZ80 |
NSP130..LHD..6F..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D100 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0D140 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DG20 |
NSP130..LHD..3D..6F..(G,S) HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DG30 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC&PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DG20 |
NSP130..LHD..3D..6F..(G,S) PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DG70 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DG40 |
NSP130..LHD..3D..6F..(G,S) |
1 | ||
| 82115-0DG80 |
NSP130..LHD..3D..6F..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DG30 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DG50 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC |
1 | ||
| 82115-0DG80 |
NSP130..LHD..3D..6F..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT)&PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DG90 |
NSP130..LHD..3D..6F..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 82115-0DG60 |
NSP130..LHD..3D..6F..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DG60 |
NSP130..LHD..3D..6F..(G,S) REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(N,R) GERMANY SPEC&WITH(STOP & START SYSTEM) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DJ40 |
NSP130..LHD..3D..6F..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DJ50 |
NSP130..LHD..3D..6F..(G,S) WITH(STOP & START SYSTEM)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM)&HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82115-0DJ50 |
NSP130..LHD..3D..6F..(G,S) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DJ40 |
NSP130..LHD..3D..6F..(G,S) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 82115-0DJ30 |
NSP130..LHD..6F..(G,S) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82115-0DJ50 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM)&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82115-0DJ40 |
NSP130..LHD..3D..6F..(G,S) GERMANY SPEC&WITH(STOP & START SYSTEM) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0D420 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82817-0D420 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0D430 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82817-0D430 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 82824-50360 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 82824-50360 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-73030 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82824-73030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF12(1407-1703)NSP130

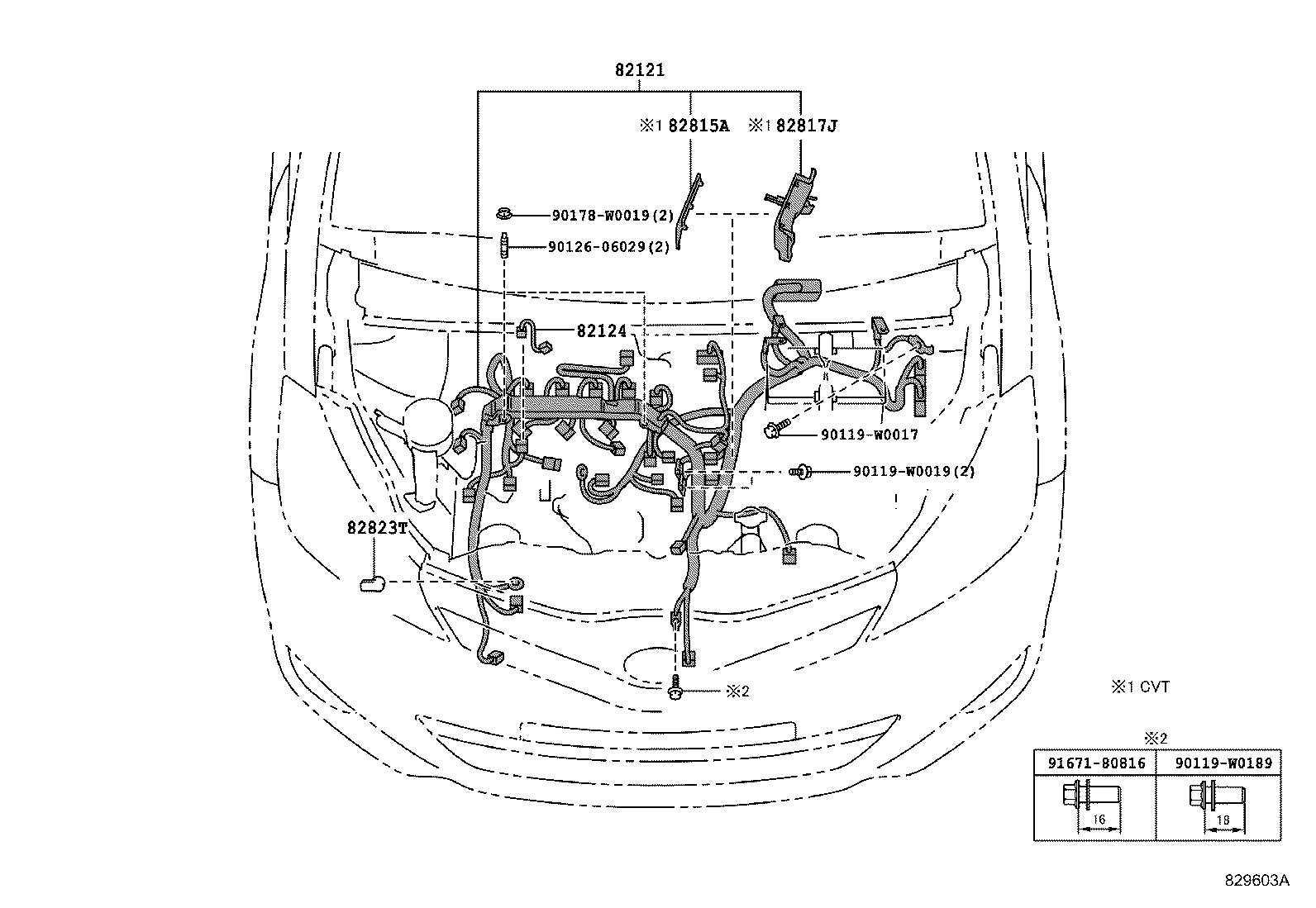

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

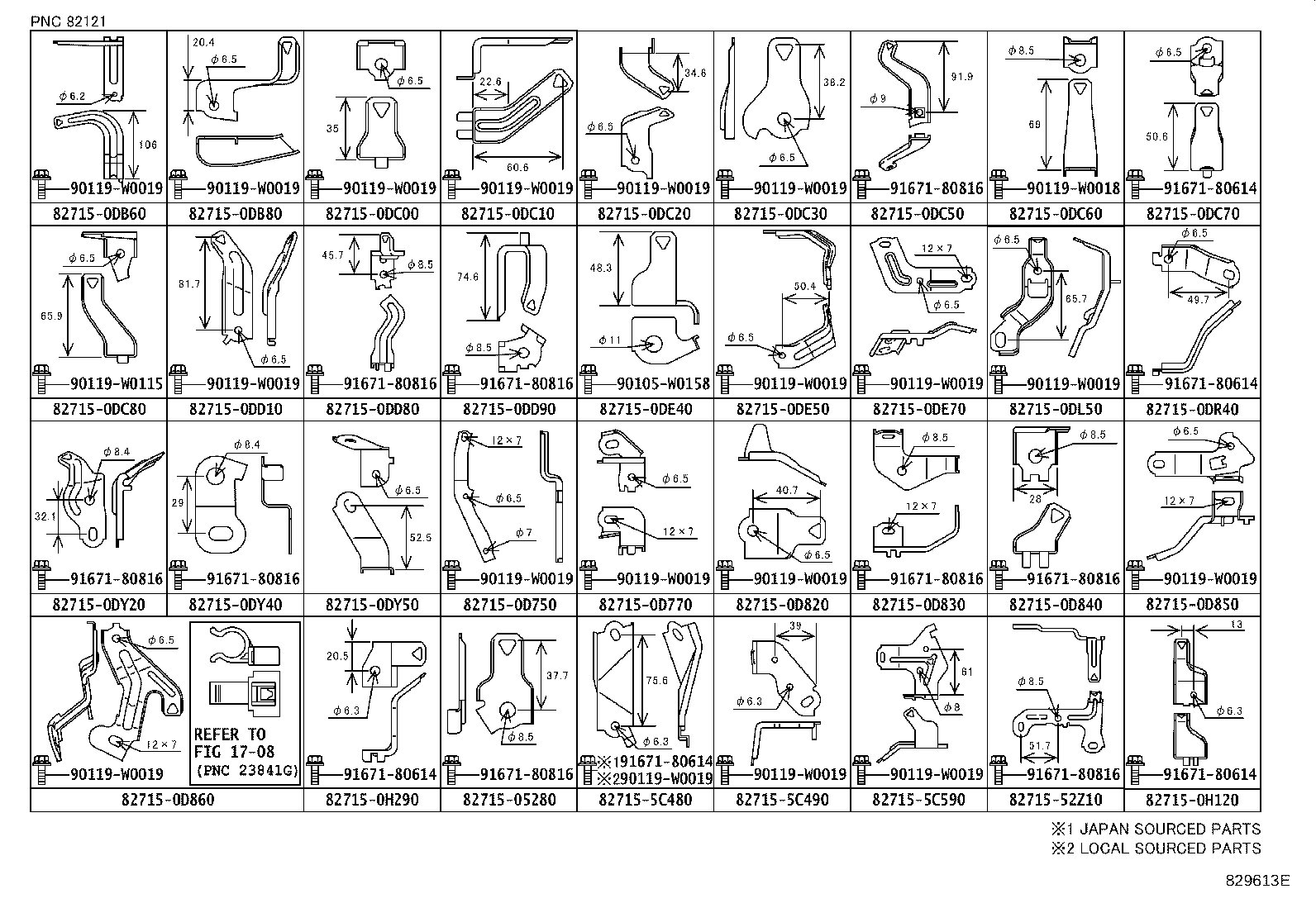

| 82121 - WIRE, ENGINE | ||||
| 82121-0DN20 |
NSP130..LHD..3D..6F..(G,S) |
1 | ||
| 82121-0DN30 |
NSP130..LHD..3D..6F..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 82121-0DN20 |
NSP130..LHD..6F..(N,R);NSP130..LHD..5D..6F..(G,S) |
1 | ||
| 82121-0DN30 |
NSP130..LHD..6F..(N,R);NSP130..LHD..5D..6F..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12150 |
NSP130..N,R;NSP130..5D..(G,S) |
1 | ||
| 82124-12150 |
NSP130..3D..(G,S) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KSP130,NLP130,NSP130 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0189 | ||||
| 90126-06029 | ||||
| 90178-W0019 | ||||
| 91671-80816 | ||||
ILLUST NO. 3 OF12(1407- )LHD

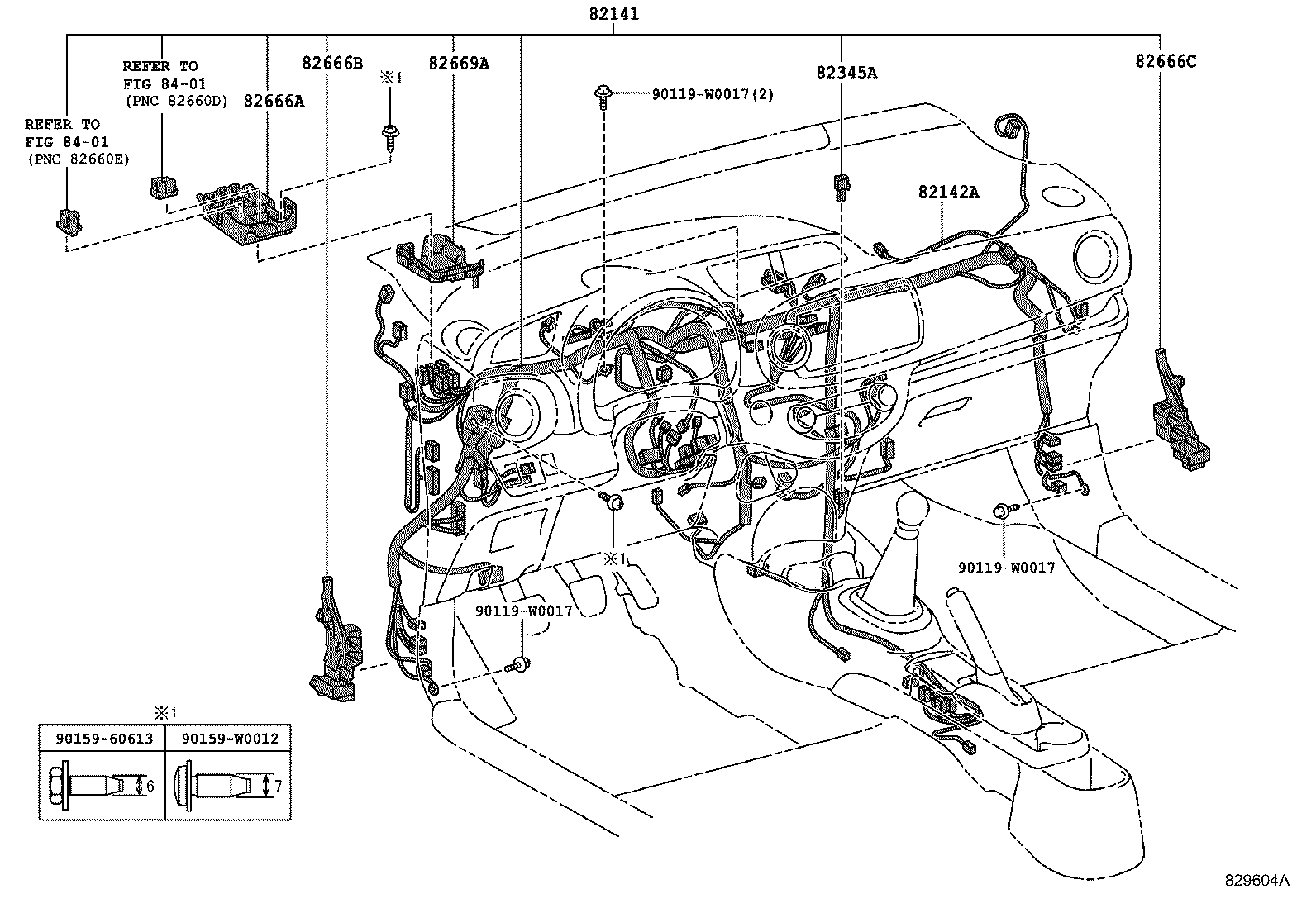

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0D090 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82145-0D080 |
KSP130,NLP130,NSP130..LHD..(N,R,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82145-0D090 |
KSP130,NLP130,NSP130..LHD..(N,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0U240 |
KSP130,NLP130,NSP130..LHD..MTM..(N,S) FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0U210 |
KSP130,NLP130,NSP130..LHD..MTM..G FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0U250 |
KSP130,NLP130,NSP130..LHD..MTM..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&AUDIO-*DA & *BT& 8SPEAKER |
1 | ||
| 82145-0U230 |
KSP130,NLP130,NSP130..LHD..(N,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&AUDIO-*DA & *BT& 8SPEAKER |
1 | ||
| 82145-0U240 |
KSP130,NLP130,NSP130..LHD..MTM..G |
1 | ||
| 82145-0U210 |
KSP130,NLP130,NSP130..LHD..MTM..(N,R,S) |
1 | ||
| 82145-0D080 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0U210 |
KSP130,NLP130,NSP130..LHD..MTM..G FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0U250 |
KSP130,NLP130,NSP130..LHD..MTM..(N,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82145-0U280 |
KSP130,NLP130,NSP130..LHD..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0U260 |
KSP130,NLP130,NSP130..LHD..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82145-0U290 |
KSP130,NLP130,NSP130..LHD..G WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82145-0U270 |
KSP130,NLP130,NSP130..LHD..(N,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82145-0D080 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0U260 |
KSP130,NLP130,NSP130..LHD..(N,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0U290 |
KSP130,NLP130,NSP130..LHD..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82145-0U450 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0U280 |
KSP130,NLP130,NSP130..LHD..G WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82145-0U270 |
KSP130,NLP130,NSP130..LHD..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82145-0U450 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0U450 |
NSP130..LHD..6F..(N,R,S) WITH(STOP & START SYSTEM) |
1 | ||
| 82145-0U480 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM) |
1 | ||
| 82145-0U480 |
NSP130..LHD..6F..(N,S) WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0UK90 |
KSP130,NLP130,NSP130..LHD..G WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82145-0UK90 |
KSP130,NLP130,NSP130..LHD..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0UZ20 |
KSP130,NLP130,NSP130..LHD..MTM..G FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0UZ30 |
KSP130,NLP130,NSP130..LHD..MTM..G |
1 | ||
| 82145-0UZ20 |
KSP130,NLP130,NSP130..LHD..MTM..G FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0UK80 |
KSP130,NLP130,NSP130..LHD..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82145-0UK80 |
KSP130,NLP130,NSP130..LHD..(N,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82145-0UZ70 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0UZ60 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0UZ70 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82145-0UZ60 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82145-0UZ90 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM)&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82146-0D050 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82146-0D050 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82146-0D060 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82146-0D100 |
KSP130,NLP130,NSP130..LHD..3D..N LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D070 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 82146-0D060 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82146-0D090 |
KSP130,NLP130,NSP130..LHD..G OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82146-0D110 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82145-0UZ80 |
NSP130..LHD..6F..G WITH(STOP & START SYSTEM) |
1 | ||
| 82146-0D070 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 82146-0D080 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D130 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82146-0D110 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82146-0D100 |
KSP130,NLP130,NSP130..LHD..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82146-0D120 |
KSP130,NLP130,NSP130..LHD..3D..N LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D130 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD |
1 | ||
| 82146-0D140 |
KSP130,NLP130,NSP130..LHD..(N,S) PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D140 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&AUDIO-*DA &*BT & 8SPEAKER |
1 | ||
| 82146-0D130 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D140 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) &AUTO FOLD&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D140 |
KSP130,NLP130,NSP130..LHD..(N,S) PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D190 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) &WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D160 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82146-0D110 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D160 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D170 |
KSP130,NLP130,NSP130..LHD..G WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82146-0D180 |
KSP130,NLP130,NSP130..LHD..3D..N PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) &WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D180 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) &WITH(*HEA) & AUTO FOLD |
1 | ||
| 82146-0D190 |
KSP130,NLP130,NSP130..LHD..G PRE-COLLISION SYSTEM-WITH&WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) &WITH(*HEA) & AUTO FOLD&AUDIO-*DA & *BT & 8SPEAKER |
1 | ||
| 82146-0D150 |
KSP130,NLP130,NSP130..LHD..3D..N WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D120 |
KSP130,NLP130,NSP130..LHD..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82146-0D170 |
KSP130,NLP130,NSP130..LHD..3D..N WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 82146-0D150 |
KSP130,NLP130,NSP130..LHD..G WIRELESS DOOR LOCK-WITH(SMART KEY)&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0D050 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82140-0D050 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0D110 |
KSP130,NLP130,NSP130..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-0D070 |
KSP130,NLP130,NSP130 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-0D080 |
KSP130,NLP130,NSP130 |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-0D010 |
KSP130,NLP130,NSP130..LHD |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60613 | ||||
| 90159-W0012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF12(1407- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0DP40 |
KSP130,NLP130,NSP130..LHD..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82151-0DP30 |
KSP130,NLP130,NSP130..LHD..3D OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82151-0DX80 |
KSP130,NLP130,NSP130..LHD..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 82151-0DX70 |
KSP130,NLP130,NSP130..LHD..3D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0DP60 |
KSP130,NLP130,NSP130..LHD..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82152-0DP50 |
KSP130,NLP130,NSP130..LHD..3D OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 82152-0DY20 |
KSP130,NLP130,NSP130..LHD..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 82152-0DY10 |
KSP130,NLP130,NSP130..LHD..3D |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0D510 |
KSP130,NLP130,NSP130..3D..(G,S) BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-0D500 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82184-0D500 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82184-0D510 |
NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S) BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-0D530 |
KSP130,NLP130,NSP130..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82184-0D520 |
KSP130,NLP130,NSP130..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0D510 |
KSP130,NLP130,NSP130..3D..(G,S) BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82185-0D500 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82185-0D520 |
KSP130,NLP130,NSP130..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 82185-0D530 |
KSP130,NLP130,NSP130..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82185-0D500 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82185-0D510 |
NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S) BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82186-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||

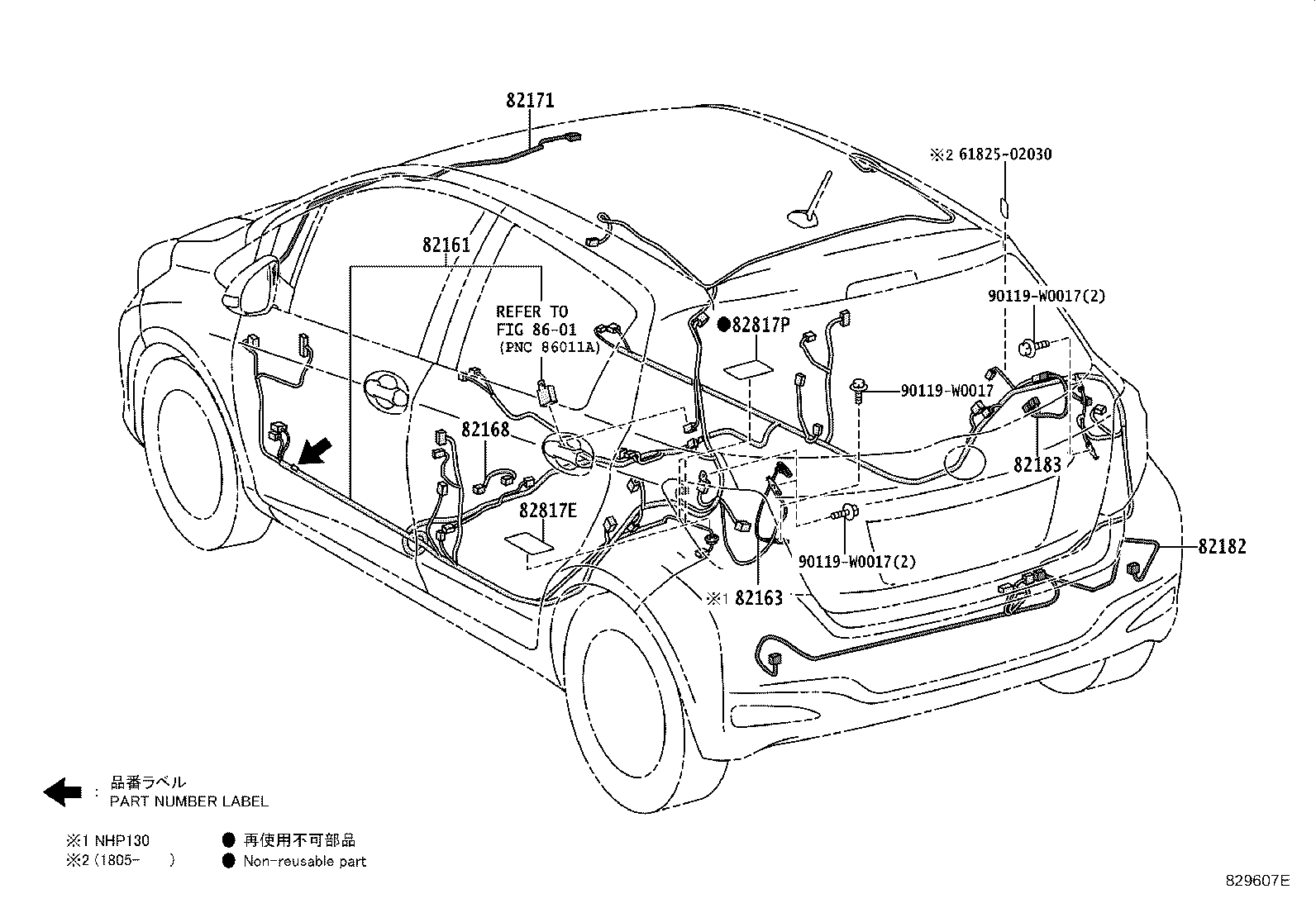

ILLUST NO. 5 OF12(1407- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0DQ80 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0DQ80 |
KSP130,NLP130,NSP130..LHD..3D..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0DQ70 |
KSP130,NLP130,NSP130..LHD..3D..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT) |
1 | ||
| 82161-0DQ80 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0DQ70 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 82161-0DQ70 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 82161-0DR60 |
KSP130,NLP130,NSP130..LHD..3D SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0DR50 |
KSP130,NLP130,NSP130..LHD..3D |
1 | ||
| 82161-0U140 |
KSP130,NLP130,NSP130..LHD..3D..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT) |
1 | ||
| 82161-0U150 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0U140 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,R) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 82161-0U140 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 82161-0U150 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,N,S) REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0U150 |
KSP130,NLP130,NSP130..LHD..3D..R REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT&TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT)&SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82161-0U200 |
KSP130,NLP130,NSP130..LHD..3D |
1 | ||
| 82161-0U210 |
KSP130,NLP130,NSP130..LHD..3D SRS AIR BAG-WITH(DRIVER & PASSENGER & SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D410 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82171-0D430 |
NLP130,NSP130..3D..(G,N,S) SUN ROOF & MOON ROOF-PANORAMA ROOF |
1 | ||
| 82171-0D690 |
NLP130,NSP130..3D..(G,N,S) PRE-COLLISION SYSTEM-WITH&SUN ROOF & MOON ROOF-PANORAMA ROOF |
1 | ||
| 82171-0D710 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D720 |
NLP130,NSP130..3D..(G,N,S) PRE-COLLISION SYSTEM-WITH&SUN ROOF & MOON ROOF-PANORAMA ROOF&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D420 |
KSP130,NLP130,NSP130..3D..(G,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D440 |
NLP130,NSP130..3D..(G,N,S) SUN ROOF & MOON ROOF-PANORAMA ROOF&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D700 |
KSP130,NLP130,NSP130..3D..N PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D450 |
KSP130,NLP130,NSP130..3D..N LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 82171-0D680 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82171-0D400 |
KSP130,NHP130,NLP130,NSP130..N,R |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-0D100 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) |
1 | ||
| 82182-0D110 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) HEADLAMP AIMING-LH TRAFFIC SPEC |
1 | ||
| 82182-0D100 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) |
1 | ||
| 82182-0D110 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) HEADLAMP AIMING-LH TRAFFIC SPEC |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-52710 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82817-52710 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-52710 |
KSP130,NLP130,NSP130..N,R N1 PACKAGE |
2 | ||
| Common parts | ||||
| 61825-02030 | ||||
| 90119-W0017 | ||||
| Linked diagrams | ||||
| 8601 | ||||

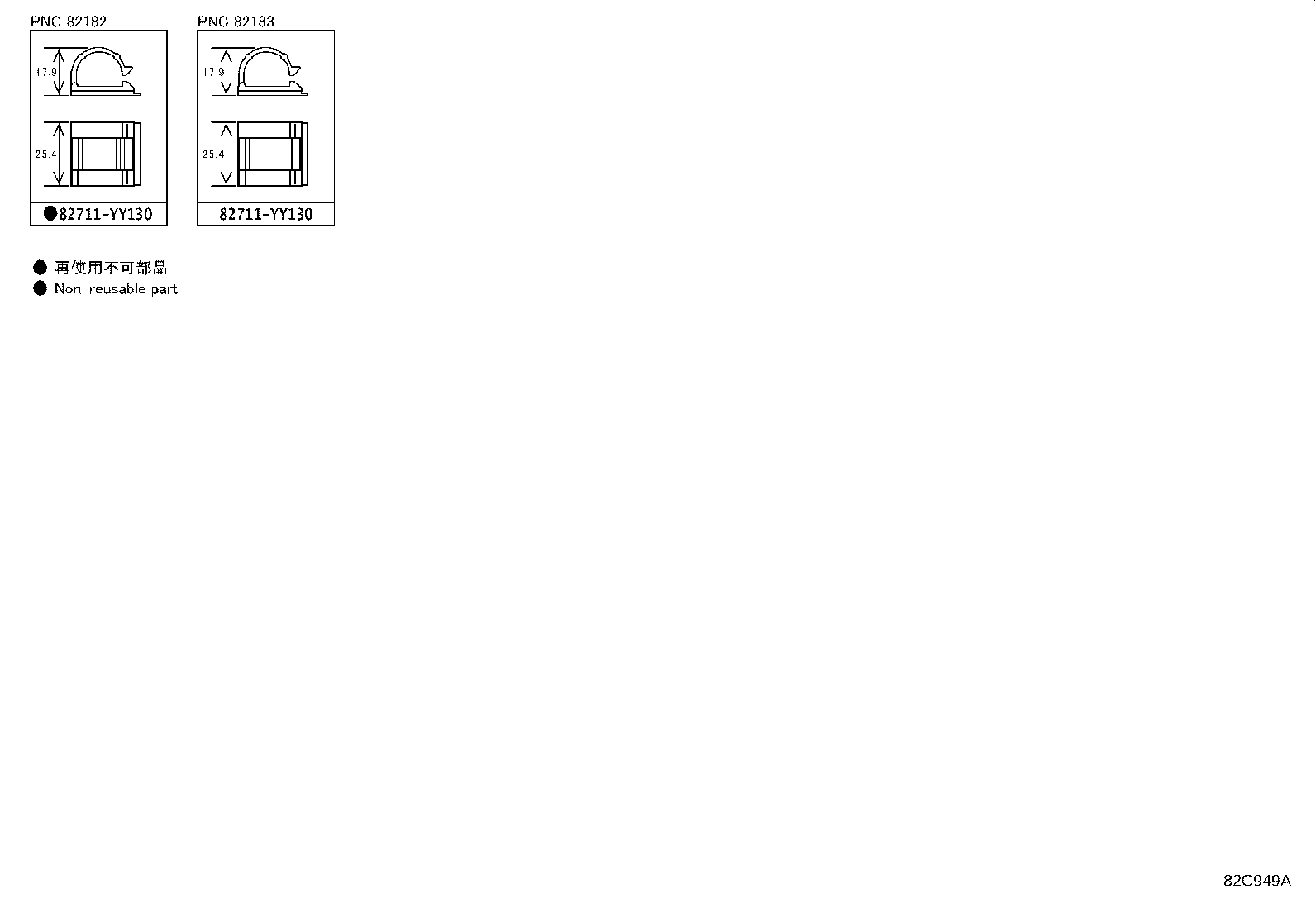

ILLUST NO. 7 OF12(1407- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2D340 | ||||
| 82711-35520 | ||||
| 82711-60650 | ||||
| 82715-0DB70 | ||||
| 82715-0DC90 | ||||
| 82715-0DE60 | ||||
| 82715-0DF10 | ||||
| 82715-0DF20 | ||||
| 82715-0DF40 | ||||
| 82715-0DF50 | ||||
| 82715-0DF60 | ||||
| 82715-0DL60 | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P80 | ||||
| 82715-12Q41 | ||||
| 82715-12R80 | ||||
| 82715-47170 | ||||
| 82715-52G50 | ||||
| 82715-52Q90 | ||||
| 82715-52S40 | ||||
| 82715-52T10 | ||||
| 82715-52T40 | ||||
| 82715-52T90 | ||||
| 82715-52Z70 | ||||
| 82715-52Z80 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C160 | ||||
| 82715-5C170 | ||||
| 82715-5C260 | ||||
| 82715-5C270 | ||||
| 82715-75190 | ||||
| 90119-W0017 | ||||
| 90119-W0018 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0115 | ||||
| 90119-W0189 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
ILLUST NO. 8 OF12(1407- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-05280 | ||||
| 82715-0D750 | ||||
| 82715-0D770 | ||||
| 82715-0D820 | ||||
| 82715-0D830 | ||||
| 82715-0D840 | ||||
| 82715-0D850 | ||||
| 82715-0D860 | ||||
| 82715-0DB60 | ||||
| 82715-0DB80 | ||||
| 82715-0DC00 | ||||
| 82715-0DC10 | ||||
| 82715-0DC20 | ||||
| 82715-0DC30 | ||||
| 82715-0DC50 | ||||
| 82715-0DC60 | ||||
| 82715-0DC70 | ||||
| 82715-0DC80 | ||||
| 82715-0DD10 | ||||
| 82715-0DD80 | ||||
| 82715-0DD90 | ||||
| 82715-0DE40 | ||||
| 82715-0DE50 | ||||
| 82715-0DE70 | ||||
| 82715-0DL50 | ||||
| 82715-0DR40 | ||||
| 82715-0DY20 | ||||
| 82715-0DY40 | ||||
| 82715-0DY50 | ||||
| 82715-0H120 | ||||
| 82715-0H290 | ||||
| 82715-52Z10 | ||||
| 82715-5C480 | ||||
| 82715-5C490 | ||||
| 82715-5C590 | ||||
| 90105-W0158 | ||||
| 90119-W0018 | ||||
| 90119-W0019 | ||||
| 90119-W0115 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1708 | ||||

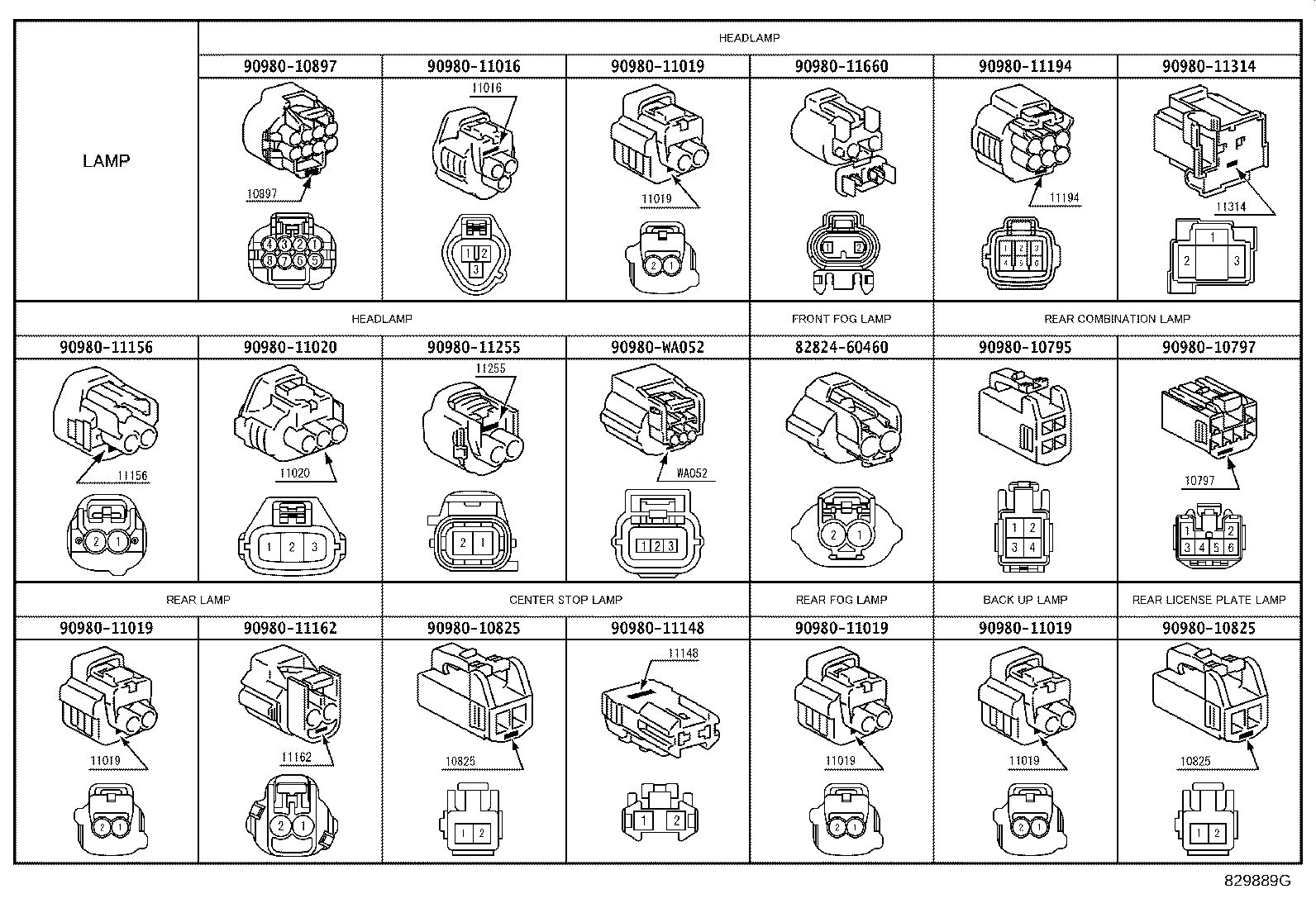

ILLUST NO.10 OF12(1407- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10797 | ||||
| 90980-10825 | ||||
| 90980-10897 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11255 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
| 90980-WA052 | ||||

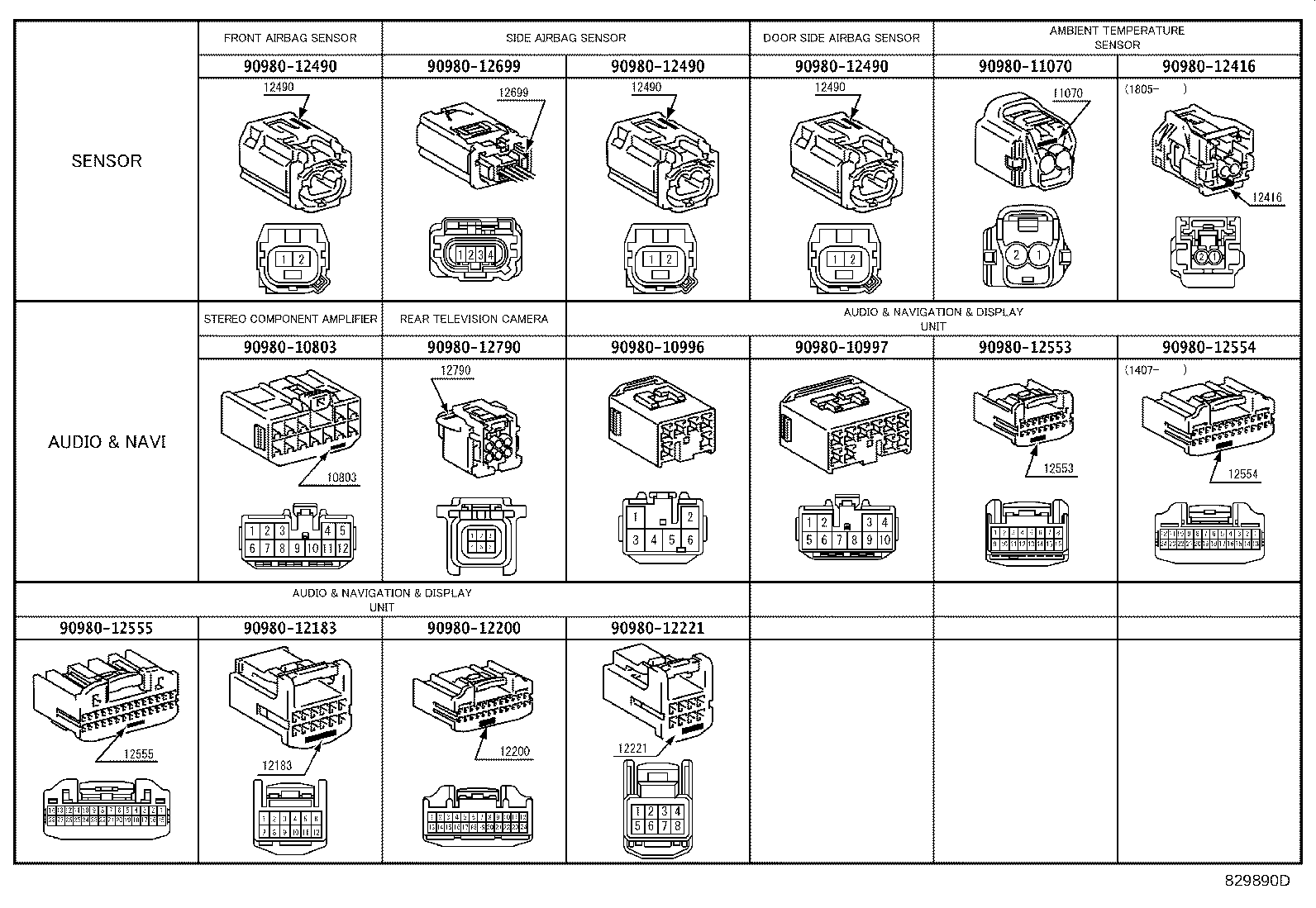

ILLUST NO.11 OF12(1407- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12221 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
ILLUST NO. 9 OF12(1407- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-YY130 | ||||
ILLUST NO.12 OF12(1407- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12658 | ||||
| 90980-12686 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
