NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NLP130,NSP130 ; (1407- )KSP130,NHP130..G,N,R

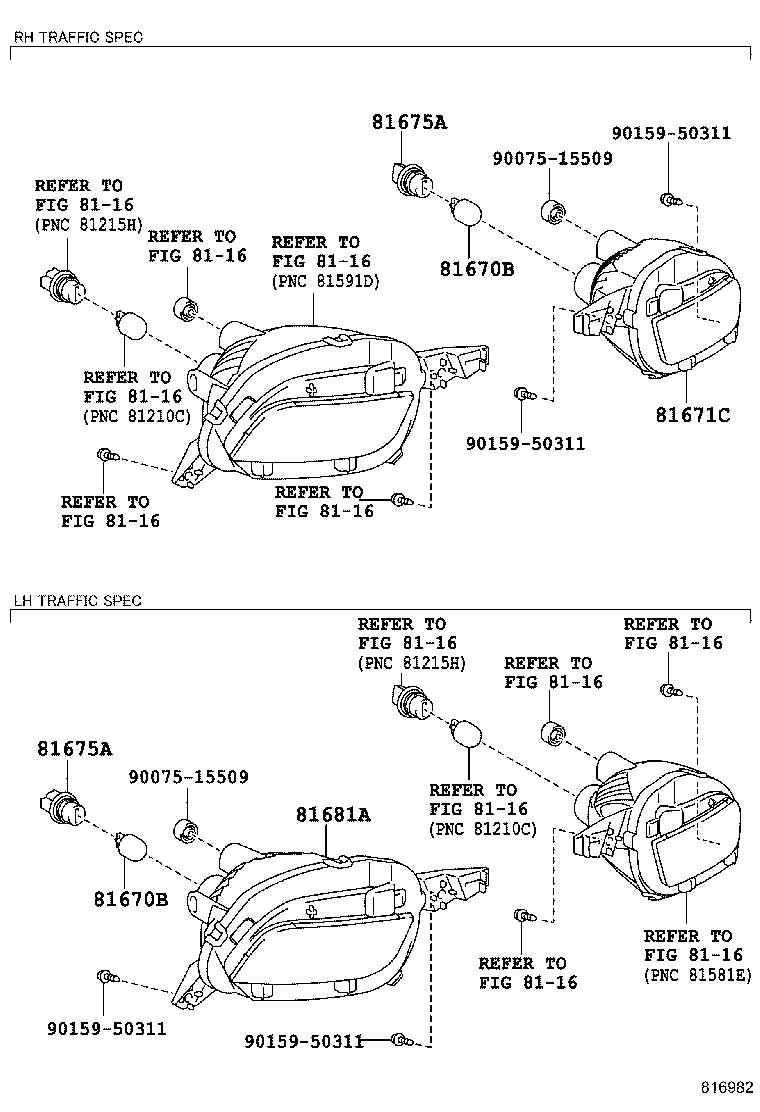

Click highlighted areas on diagram

diagram 8116 8116 8116 8116 8116 8116 8116 8116 8116 8116 8116 8116 81670B 81670B 81671C 81675A 81675A 81681A 9007515509 9007515509 9015950311 9015950311 9015950311 9015950311
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-13043

KSP130,NLP130,NSP130..3D..(G,S)

12V 21W

 1
90981-13043

NHP130..G,N;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

12V 21W

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-13043

KSP130,NLP130,NSP130..3D..(G,S)

12V 21W

 1
90981-13043

NHP130..G,N;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

12V 21W

 1
81671C - LENS & BODY, BACK-UP LAMP, RH
81581-0D220

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
81581-0D220

NHP130..LHD..(G,N);KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
81675A - PLUG, SOCKET(FOR BACK-UP LAMP)
90075-99080

NHP130..G,N;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
90075-99080

KSP130,NLP130,NSP130..3D..(G,S)

 1
81675A - PLUG, SOCKET(FOR BACK-UP LAMP)
90075-99080

NHP130..G,N;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
90075-99080

KSP130,NLP130,NSP130..3D..(G,S)

 1
81681A - LENS & BODY, BACK-UP LAMP, LH
81591-0D200

NHP130..LHD..(G,N);KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

HEADLAMP AIMING-LH TRAFFIC SPEC

 1
81591-0D200

KSP130,NLP130,NSP130..LHD..3D..(G,S)

HEADLAMP AIMING-LH TRAFFIC SPEC

 1
Common parts
90075-15509
90159-50311
Linked diagrams
8116
