NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )

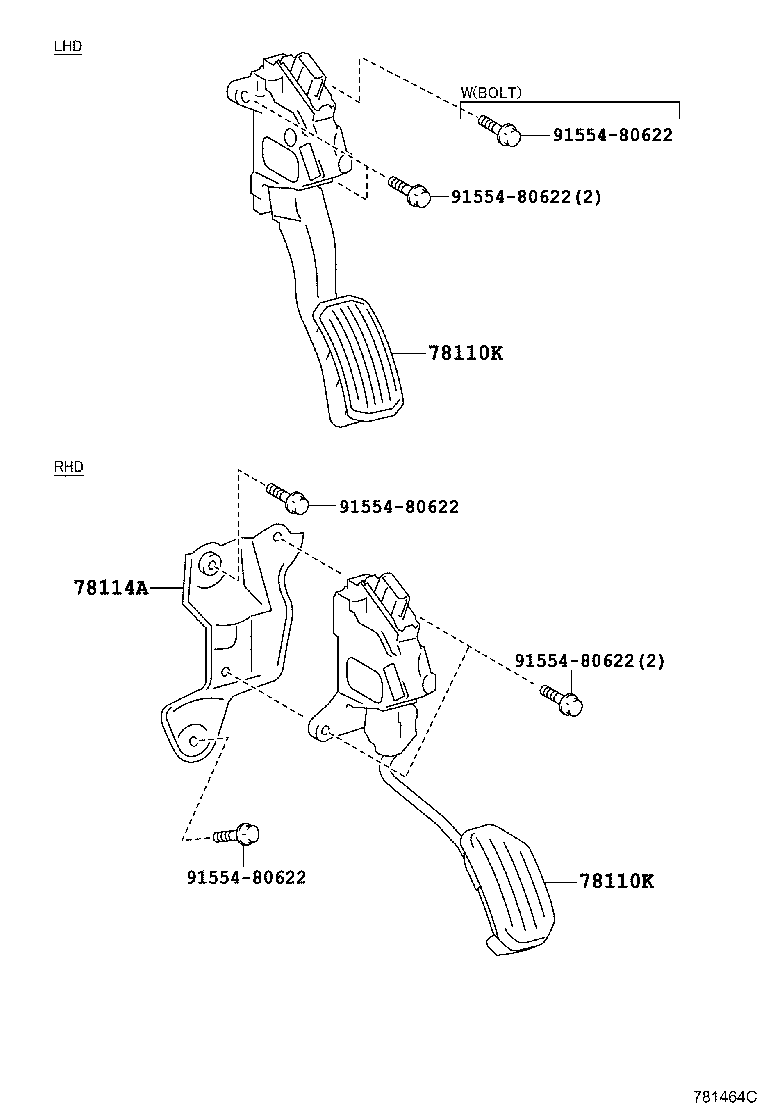

Click highlighted areas on diagram

diagram 78110K 78110K 78114A 9155480622 9155480622 9155480622 9155480622 9155480622
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER

 1
78110-0D110

NHP130..LHD;KSP130,NLP130,NSP130..LHD..MTM..(N,R)

 1
78110-0D110

NSP130..LHD..6F..(G,S)

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITHOUT

 1
78110-0D110

NSP130..LHD..6F..(G,S)

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
78110-0D110

NSP130..LHD..6F..(G,S)

CRUISE CONTROL-WITHOUT

 1
78110-0D110

NSP130..LHD..6F..N

CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER

 1
78110-0D120

NSP130..LHD..CVT;NSP130..LHD..6F..(G,S)

 1
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER

 1
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH

 1
78110-0D120

NSP130..LHD..6F..N

CRUISE CONTROL-WITH

 1
78110-0D110

NSP130..LHD..6F..N

CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER

 1
78110-0D110

NHP130..LHD;KSP130,NLP130,NSP130..LHD..MTM..(N,R)

 1
78110-0D110

NSP130..LHD..6F..(G,S)

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITHOUT

 1
78110-0D110

NSP130..LHD..6F..(G,S)

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
78110-0D110

NSP130..LHD..6F..(G,S)

CRUISE CONTROL-WITHOUT

 1
78110-0D110

NSP130..LHD..6F..N

CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER

 1
78110-0D120

NSP130..LHD..CVT;NSP130..LHD..6F..(G,S)

 1
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER

 1
78110-0D110

NSP130..LHD..6F..N

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&CRUISE CONTROL-WITH

 1
78110-0D120

NSP130..LHD..6F..N

CRUISE CONTROL-WITH

 1
78110-0D110

NSP130..LHD..6F..N

CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER

 1
Common parts
91554-80622
