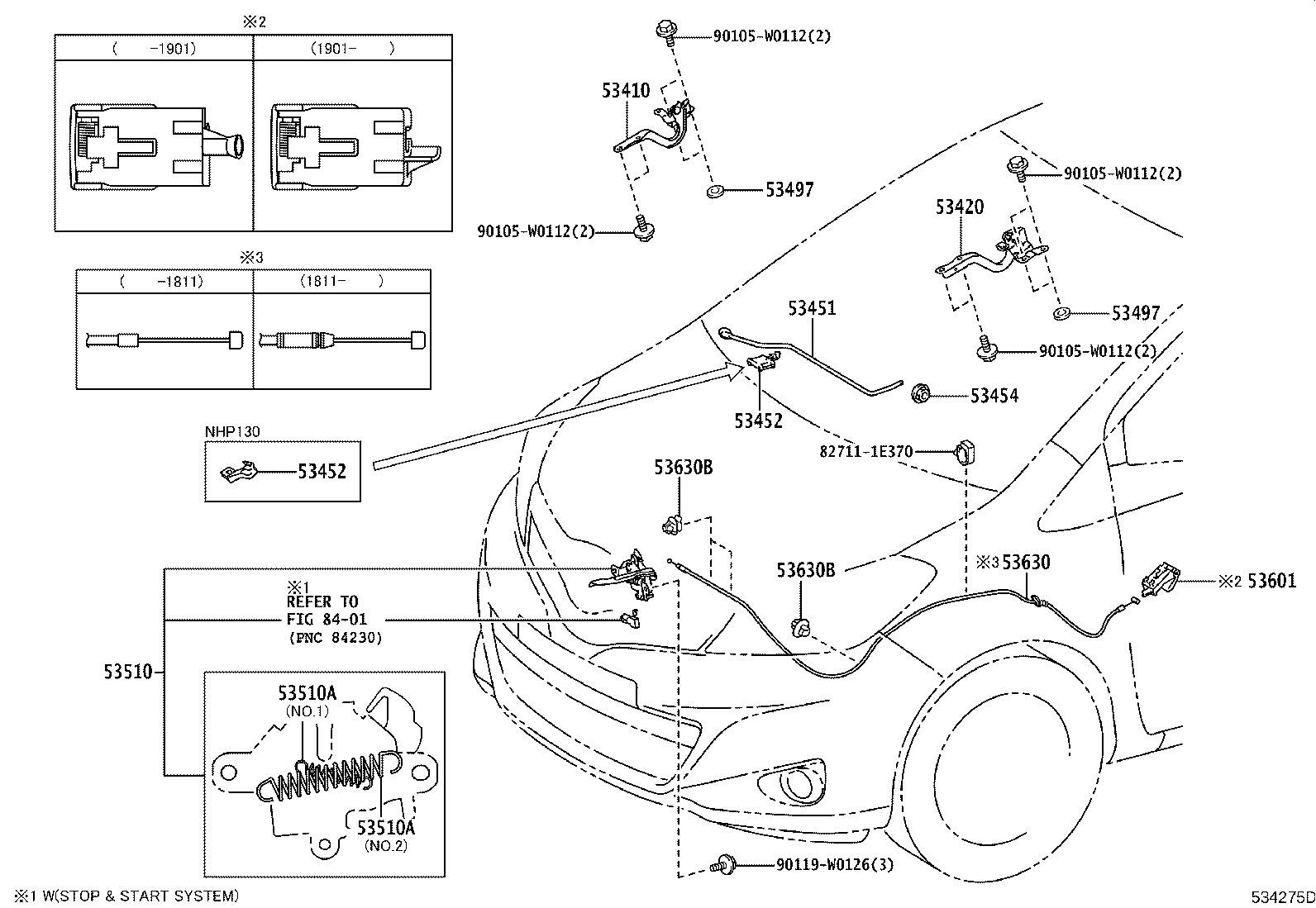

NSP130L-CGFGKW (2014)
Toyota Yaris/Hybrid(Frp)
(1407- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-0D320 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53410-0D320 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-0D320 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53420-0D320 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-0D100 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53440-0D100 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53452-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53452-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-52020 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53454-52020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-05010 |
KSP130,NLP130,NSP130..3D..(G,S) T=1.0 |
4 | ||
| 53497-05010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-05010 |
KSP130,NLP130,NSP130..3D..(G,S) T=1.0 |
4 | ||
| 53497-05010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-0D320 |
NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 53510-0D300 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) |
1 | ||
| 53510-0D300 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) |
1 | ||
| 53510-0D320 |
NSP130..LHD..3D..(G,S) WITH(STOP & START SYSTEM) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-W0005 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) WD=1.0,CW=24,NO.1 |
1 | ||
| 90506-W0005 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) WD=1.0,CW=24,NO.1 |
1 | ||
| 90506-W0006 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) WD=1.6,CW=13,NO.2 |
1 | ||
| 90506-W0006 |
KSP130,NLP130,NSP130..3D..(G,S) WD=1.6,CW=13,NO.2 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-W0005 |
NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) WD=1.0,CW=24,NO.1 |
1 | ||
| 90506-W0005 |
KSP130,NLP130,NSP130..LHD..3D..(G,S) WD=1.0,CW=24,NO.1 |
1 | ||
| 90506-W0006 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) WD=1.6,CW=13,NO.2 |
1 | ||
| 90506-W0006 |
KSP130,NLP130,NSP130..3D..(G,S) WD=1.6,CW=13,NO.2 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-05030C0 |
KSP130,NHP130,NLP130,NSP130 BLACK |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-52120 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 53630-52120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NLP130..LHD..3D..(G,S);KSP130,NSP130..3D..(G,S) |
3 | ||
| 90469-06005 |
NHP130;KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) |
3 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NLP130..LHD..3D..(G,S);KSP130,NSP130..3D..(G,S) |
3 | ||
| 90469-06005 |
NHP130;KSP130,NSP130..N,R;NLP130..LHD..(N,R);NLP130..LHD..5D..(G,S);KSP130,NSP130..5D..(G,S) |
3 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 90105-W0112 | ||||
| 90119-W0126 | ||||
| Linked diagrams | ||||
| 8401 | ||||
