NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1703)NSP130..LHD

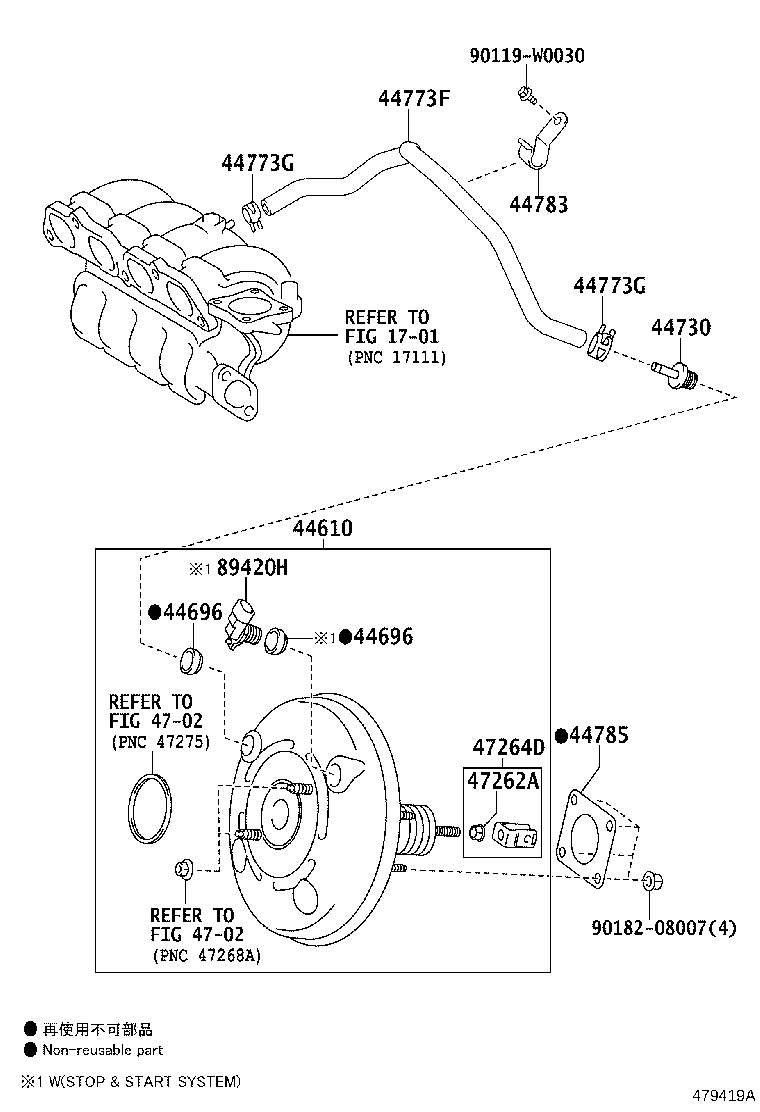

Click highlighted areas on diagram

diagram 1701 44610 44696 44696 44730 44773F 44773G 44773G 44783 44785 4702 4702 47262A 47264D 89420H 90119W0030 9018208007
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09C20

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
44610-09C30

NSP130..LHD..3D..(G,S)

WITH(STOP & START SYSTEM)

 1
44610-09C10

KSP130..LHD..G;NSP130..LHD..5D..6F..G;NSP130..LHD..3D..6F..(G,S)

VSC-WITHOUT

 1
44610-09C30

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

WITH(STOP & START SYSTEM)

 1
44610-09C20

KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
44610-09C10

NSP130..LHD..5D..6F..S;KSP130,NSP130..LHD..MTM..(N,R)

VSC-WITHOUT

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP130,NLP130,NSP130..3D..(G,S)

 1
44692-0D020

NSP130..LHD..3D..(G,S)

WITH(STOP & START SYSTEM)

 2
44692-0D020

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

WITH(STOP & START SYSTEM)

 2
44692-0D020

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
44696 - GROMMET, CHECK VALVE
44692-0D020

KSP130,NLP130,NSP130..3D..(G,S)

 1
44692-0D020

NSP130..LHD..3D..(G,S)

WITH(STOP & START SYSTEM)

 2
44692-0D020

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

WITH(STOP & START SYSTEM)

 2
44692-0D020

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-0D010

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
44730-0D010

KSP130,NLP130,NSP130..3D..(G,S)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-52230

NSP130..LHD..3D..(G,S)

 1
44773-52230

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-W0008

NSP130..3D..(G,S)

 2
90466-W0008

NSP130..N,R;NSP130..5D..(G,S)

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90466-W0008

NSP130..3D..(G,S)

 2
90466-W0008

NSP130..N,R;NSP130..5D..(G,S)

 2
44783 - CLAMP, VACUUM HOSE
44783-52070

NSP130..LHD..3D..(G,S)

 1
44783-52070

NSP130..LHD..(N,R);NSP130..LHD..5D..(G,S)

 1
44785 - GASKET, BRAKE BOOSTER
44785-16020

KSP130,NLP130,NSP130..3D..(G,S)

 1
44785-16020

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-05010

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47262-05010

KSP130,NLP130,NSP130..3D..(G,S)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-09010

KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
47264-09010

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
89420H - SENSOR ASSY, VACUUM
89421-0D010

NSP130..LHD

WITH(STOP & START SYSTEM)

 1
Common parts
90119-W0030
90182-08007
Linked diagrams
1701
4702
