NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )KSP130,NLP130,NSP13#..LHD

Click highlighted areas on diagram

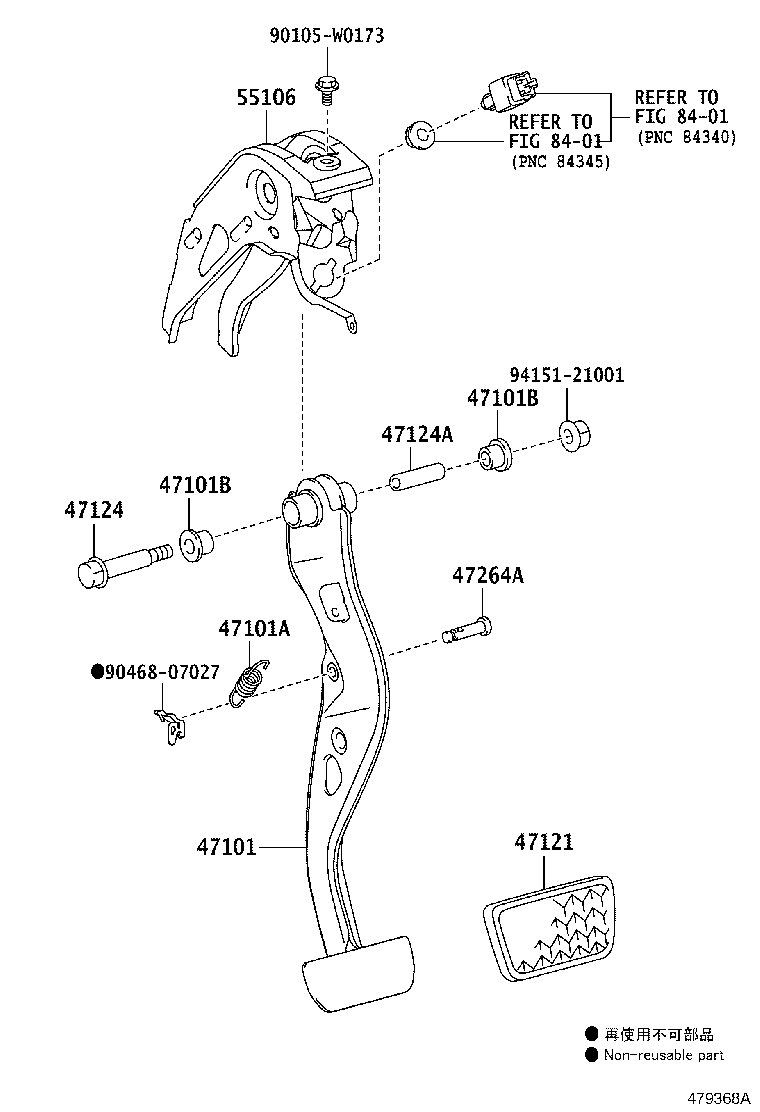

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47264A 55106 8401 8401 90105W0173 9046807027 9415121001
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-0D450

KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)

 1
47101-0D450

KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14088

KSP130,NLP130,NSP130..3D..(G,S)

 1
90506-14088

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KSP130,NLP130,NSP130..3D..(G,S)

 2
90386-13015

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KSP130,NLP130,NSP130..3D..(G,S)

 2
90386-13015

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47121 - PAD, BRAKE PEDAL
31321-0D030

KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)

 1
31321-0D030

KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)

 1
47124 - SHAFT, BRAKE PEDAL
90105-10444

KSP130,NLP130,NSP130..3D..(G,S)

 1
90105-10444

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

NHP130..RHD;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
90387-10003

KSP130,NLP130,NSP130..3D..(G,S)

 1
47264A - PIN(FOR PUSH ROD)
90249-08308

KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
90249-08308

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0D300

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
55106-0D300

KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
Common parts
90105-W0173
90468-07027
94151-21001
Linked diagrams
8401
