NSP130L-CGFGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )LHD

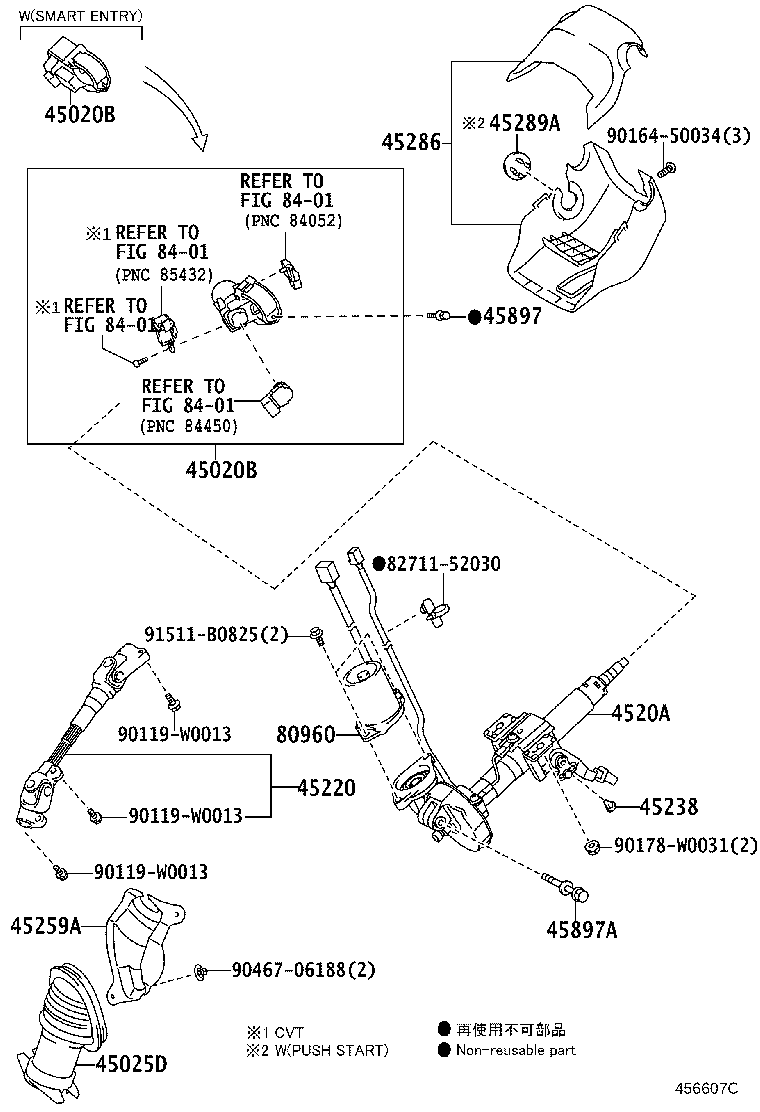

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45220 45238 45259A 45286 45289A 45897 45897A 80960 8271152030 8401 8401 8401 8401 90119W0013 90119W0013 90119W0013 9016450034 90178W0031 9046706188 91511B0825
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D120

KSP130,NLP130,NSP130..LHD..3D..(G,N,S)

WIRELESS DOOR LOCK-WITH(SMART KEY)

 1
45020-0D081

KSP130,NLP130,NSP130..R;KSP130,NLP130,NSP130..LHD..MTM..N;KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)

 1
45020-0D081

KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-0D120

KSP130,NLP130,NSP130..LHD..3D..(G,N,S)

WIRELESS DOOR LOCK-WITH(SMART KEY)

 1
45020-0D081

KSP130,NLP130,NSP130..R;KSP130,NLP130,NSP130..LHD..MTM..N;KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)

 1
45020-0D081

KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-0D062

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
45025-0D062

KSP130,NLP130,NSP130..3D..(G,S)

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-0D050

NHP130..LHD..N;KSP130,NLP130,NSP130..LHD

 1
4520A-0D051

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
4520A-0D060

NHP130..LHD..N;KSP130,NLP130,NSP130..LHD..(G,N,S)

WIRELESS DOOR LOCK-WITH(SMART KEY)

 1
4520A-0D061

KSP130,NLP130,NSP130..LHD..3D..(G,N,S)

WIRELESS DOOR LOCK-WITH(SMART KEY)

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-0D010

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
45220-0D010

NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

KSP130,NLP130,NSP130..3D..(G,S)

 1
45238-52010

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45255-0D100

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
45255-0D100

NHP130..LHD;KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
45286 - COVER, STEERING COLUMN
45286-0D915C1

KSP130,NLP130,NSP130..3D..G

EU BLACK,TRIM2#,5#

 1
45286-0D915C1

NLP130,NSP130..S

EU BLACK,TRIM2#,3#

 1
45286-0D915C1

KSP130,NLP130,NSP130..R

EU BLACK,TRIM0#

 1
45286-0D915C1

KSP130,NLP130,NSP130..MTM..N

EU BLACK,TRIM1#,2#

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-0D050C1

KSP130,NLP130,NSP130..3D..N

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM1#,2#

 1
45289-0D050C1

NLP130,NSP130..S

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,3#

 1
45289-0D050C1

NHP130..N;KSP130,NLP130,NSP130..3D..G

WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,5#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KSP130,NLP130,NSP130..LHD..3D..(G,S)

 1
45897-12020

NHP130;KSP130,NLP130,NSP130..R;KSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S)

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

KSP130,NLP130,NSP130..3D..(G,S)

 1
90119-10980

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
80960 - MOTOR ASSY, POWER STEERING
80960-0D200

KSP130,NHP130,NLP130,NSP130..LHD

 1
Common parts
82711-52030
90119-W0013
90164-50034
90178-W0031
90467-06188
91511-B0825
Linked diagrams
8401
