NSP130L-CGFGKW (2014)
Toyota Yaris/Hybrid(Frp)

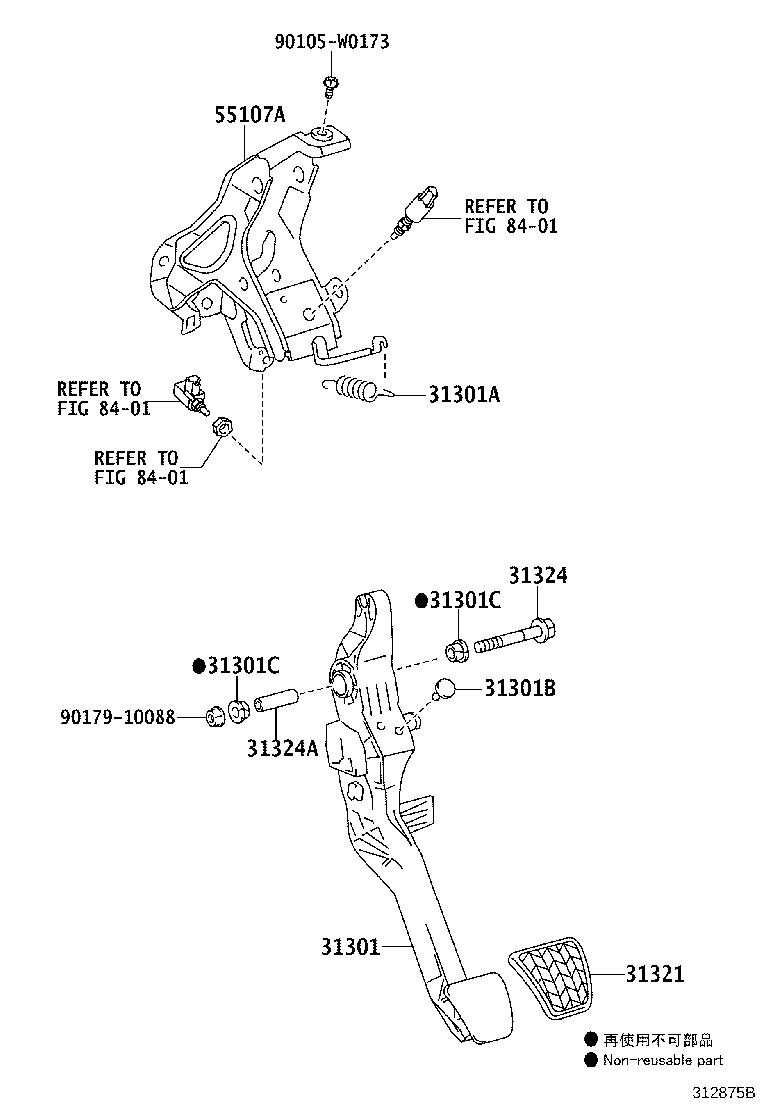

ILLUST NO. 1 OF 2(1407- )KSP130,NSP13#..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-0D110 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 31311-0D110 |
KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14047 |
KSP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 90507-14047 |
KSP130,NSP130..LHD..MTM..(N,R);KSP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
1 | ||
| 90541-06036 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
2 | ||
| 90386-13015 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
2 | ||
| 90386-13015 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
1 | ||
| 31321-52010 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90105-10563 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 90105-10563 |
KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 90387-10004 |
KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0D180 |
KSP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 55107-0D180 |
KSP130,NSP130..LHD..MTM..(N,R);KSP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| Common parts | ||||
| 90105-W0173 | ||||
| 90179-10088 | ||||
| Linked diagrams | ||||
| 8401 | ||||

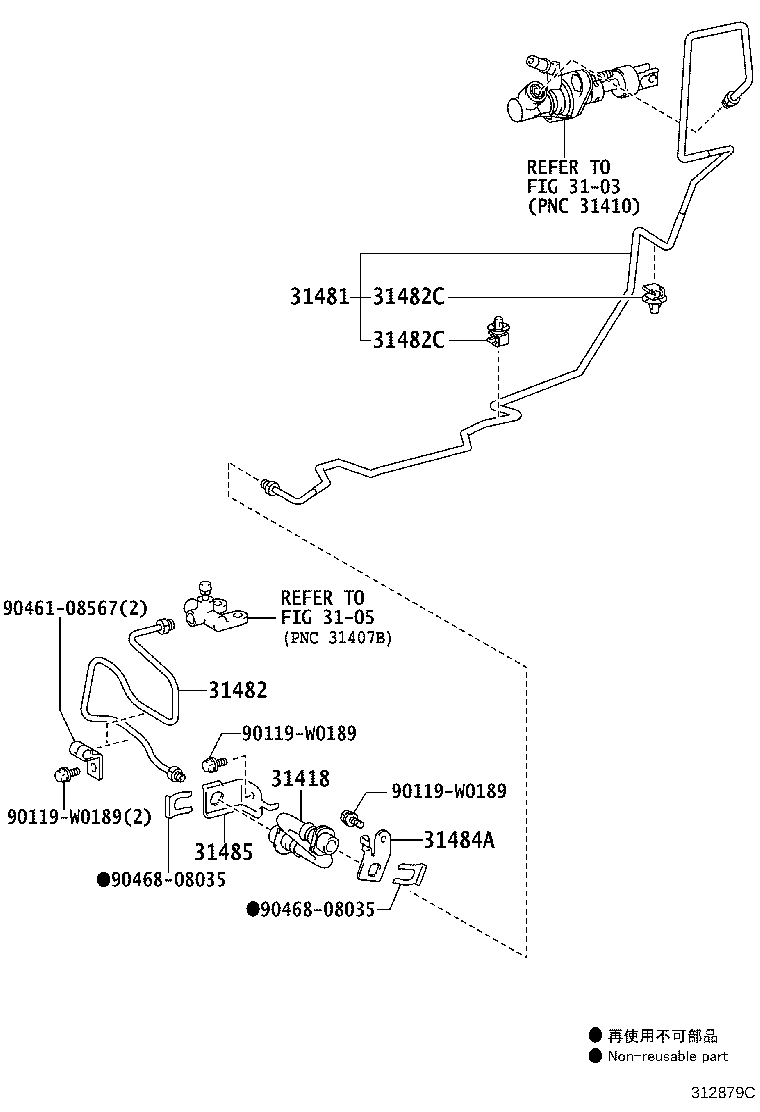

ILLUST NO. 2 OF 2(1407- )NSP13#..LHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2005 |
KSP130,NSP130..3D..MTM..(G,S) |
1 | ||
| 90947-W2005 |
KSP130,NSP130..MTM..(N,R);KSP130,NSP130..5D..MTM..(G,S) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-0D090 |
KSP130,NLP130,NSP130..LHD..3D..MTM..(G,S) |
1 | ||
| 31481-0D270 |
NLP130,NSP130..LHD..3D..6F..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 31481-0D270 |
NLP130,NSP130..LHD..6F..(N,R);NLP130,NSP130..LHD..5D..6F..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 31481-0D090 |
KSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0D180 |
NSP130..3D..6F..(G,S) |
1 | ||
| 31482-0D180 |
NSP130..6F..(N,R);NSP130..5D..6F..(G,S) |
1 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 90949-01D17 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
2 | ||
| 90949-01D17 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
2 | ||
| 31482C - CLAMP(FOR CLUTCH TUBE) | ||||
| 90949-01D17 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
2 | ||
| 90949-01D17 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
2 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-52090 |
KSP130,NLP130,NSP130..3D..MTM..(G,S) |
1 | ||
| 31484-52090 |
KSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S) |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-0D050 |
NLP130,NSP130..6F..(N,R);NLP130,NSP130..5D..6F..(G,S) |
1 | ||
| 31484-0D050 |
NLP130,NSP130..3D..6F..(G,S) |
1 | ||
| Common parts | ||||
| 90119-W0189 | ||||
| 90461-08567 | ||||
| 90468-08035 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
