NLP130R-CHFSXW (2014)
Toyota Yaris/Hybrid(Frp)
Production
Jul 2014
-
Mar 2017
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1407- )1NDTV

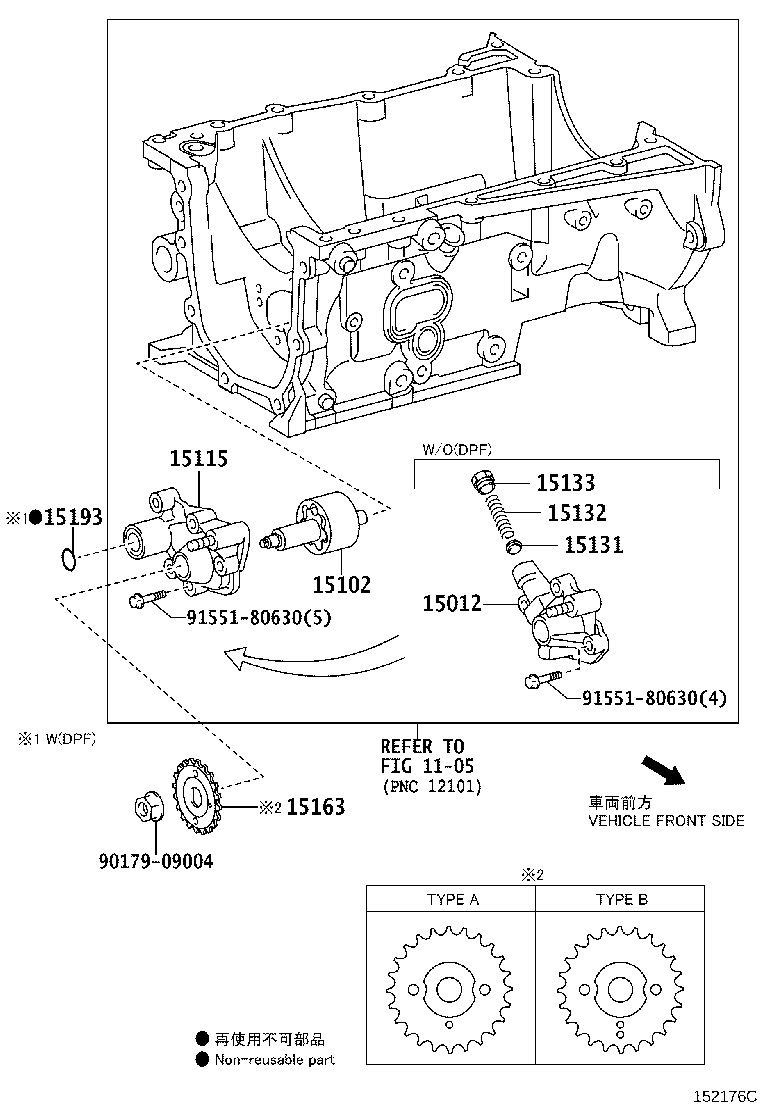

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15102 - ROTOR SET, OIL PUMP | ||||
| 15102-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) (L) |
1 | ||
| 15102-33060 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) (J) |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15120-33080 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) (J) |
1 | ||
| 15120-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) (L) |
1 | ||
| 15163 - GEAR, OIL PUMP DRIVE SHAFT | ||||
| 15163-33010 |
1NDTV..NLP130 TYPE A:REFER ILLUST. |
1 | ||
| 15163-33020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) TYPE B:REFER ILLUST. |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-33020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 90179-09004 | ||||
| 91551-80630 | ||||
| Linked diagrams | ||||
| 1105 | ||||
