NLP130R-CGFRXW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )1NDTV

Click highlighted areas on diagram

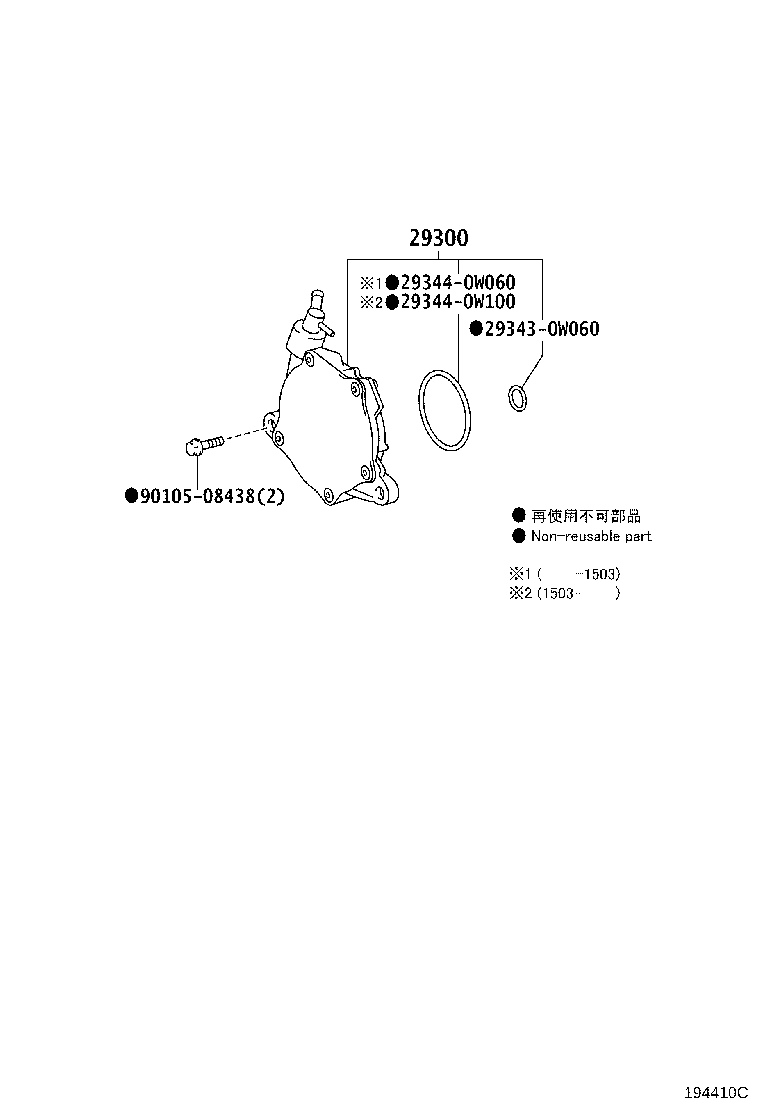

diagram 29300 293430W060 293440W060 293440W100 9010508438
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0W110

1NDTV..NLP130..3D..(G,S)

 1
29300-0W062

1NDTV..NLP130

 1
29300-0W110

1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)

 1
Common parts
29343-0W060
29344-0W060
29344-0W100
90105-08438
