NLP130R-CGFNXW (2014)
Toyota Yaris/Hybrid(Frp)
ILLUST NO. 5 OF 7(1407- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0D070 |
KSP130,NLP130,NSP130..N,R N1 PACKAGE |
1 | ||
| 83950-0D050 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 83950-0D050 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D090 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84152-0D090 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84153-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84770-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D150 |
KSP130,NHP130,NLP130,NSP130 OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 84870-0D151 |
NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..LHD..R;KSP130,NLP130,NSP130..5D..(G,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 84870-0D151 |
KSP130,NLP130,NSP130..RHD..5D..R;KSP130,NLP130,NSP130..LHD..3D..(G,S);KSP130,NLP130,NSP130..RHD..3D..(G,R,S) OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED) & WITH(*HEA) & AUTO FOLD |
1 | ||
| 84870-0F010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84870-0F010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-02050 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84872-02050 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0D010 |
KSP130,NLP130,NSP130 |
1 | ||
| 84988-0D011 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84988-0D011 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09080 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85500-09080 |
KSP130,NLP130,NSP130..3D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0D010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85515-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
KSP130,NLP130,NSP130..3D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D020 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 85530-0D020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 85530-0D021 |
KSP130,NHP130,NLP130,NSP130 CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85530-0D021 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52040 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 85535-52040 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 85535-52040 |
KSP130,NLP130,NSP130..3D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 85535-52040 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) CIGARETTE LIGHTER-WITH |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D030 |
KSP130,NLP130,NSP130..G WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 89611-0D030 |
KSP130,NLP130,NSP130..G WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89611-0D030 |
KSP130,NLP130,NSP130..3D..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D030 |
KSP130,NLP130,NSP130..G WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 89611-0D030 |
KSP130,NLP130,NSP130..G WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89611-0D030 |
KSP130,NLP130,NSP130..3D..(N,S) WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
| 8601 | ||||
| 8617 | ||||
ILLUST NO. 6 OF 7(1407- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NHP130..N;KSP130,NLP130,NSP130 |
1 | ||
| 84052-71010 |
NHP130..N;KSP130,NLP130,NSP130..G,N,S WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D310 |
KSP130,NLP130,NSP130..3D..(G,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-0D310 |
KSP130,NLP130,NSP130..3D..N FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-0D300 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84140-0D320 |
KSP130,NLP130,NSP130..G FRONT FOG LAMP-WITHOUT&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-0D270 |
KSP130,NLP130,NSP130..G FRONT FOG LAMP-WITHOUT |
1 | ||
| 84140-0D320 |
KSP130,NLP130,NSP130..3D..N LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84140-0D300 |
KSP130,NLP130,NSP130..N,R FRONT FOG LAMP-WITH |
1 | ||
| 84140-0D270 |
KSP130,NHP130,NLP130,NSP130..N,R |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D030B2 |
KSP130,NLP130..G SILVER,TRIM2#,5# |
1 | ||
| 84250-0D030B2 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER,SILVER,TRIM0# |
1 | ||
| 84250-0D030B2 |
KSP130,NLP130,NSP130..MTM..N SILVER,TRIM1#,2# |
1 | ||
| 84250-0D040B1 |
NLP130,NSP130..3D..6F..G CRUISE CONTROL-WITHOUT,SILVER,TRIM2# |
1 | ||
| 84250-0D060B1 |
KSP130,NLP130,NSP130..3D..MTM..G SILVER,TRIM2# |
1 | ||
| 84250-0D270B0 |
NLP130,NSP130..3D..G PRE-COLLISION SYSTEM-WITH,SILVER,TRIM2# |
1 | ||
| 84250-0D280B1 |
NLP130,NSP130..3D..G PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITHOUT,SILVER,TRIM2# |
1 | ||
| 84250-0D020B1 |
KSP130,NLP130,NSP130..R SILVER,TRIM0# |
1 | ||
| 84250-0D020B1 |
NLP130,NSP130..3D..6F..N AUDIO-RADIO LESS & 6SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 84250-0D020B1 |
NLP130,NSP130..3D..6F..N AUDIO-FM/MW & CD & 6SPESKER,SILVER,TRIM1#,2# |
1 | ||
| 84250-0D020B1 |
NLP130..3D..N CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER,SILVER,TRIM1#,2# |
1 | ||
| 84250-0D040B1 |
KSP130,NLP130,NSP130..R AUDIO-*DA & *BT & 6SPEAKER,SILVER,TRIM0# |
1 | ||
| 84250-0D020B1 |
NLP130..3D..N CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER,SILVER,TRIM1#,2# |
1 | ||
| 84250-0D040B1 |
KSP130,NLP130,NSP130..3D..MTM..N SILVER,TRIM2# |
1 | ||
| 84250-0D060B1 |
NLP130,NSP130..3D..6F..N CRUISE CONTROL-WITH,SILVER,TRIM2# |
1 | ||
| 84250-0D270B0 |
NLP130,NSP130..3D..N PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH,SILVER,TRIM2# |
1 | ||
| 84250-0D280B1 |
KSP130,NLP130,NSP130..R PRE-COLLISION SYSTEM-WITH&AUDIO-*DA & *BT & 6SPEAKER,SILVER,TRIM0# |
1 | ||
| 84250-0D280B1 |
NLP130,NSP130..3D..N PRE-COLLISION SYSTEM-WITH,SILVER,TRIM2# |
1 | ||
| 84250-0D320B0 |
KSP130,NLP130,NSP130..R PRE-COLLISION SYSTEM-WITH,SILVER,TRIM0# |
1 | ||
| 84250-0D320B0 |
NLP130..3D..N;NSP130..RHD..3D..N;NSP130..LHD..3D..6F..N PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH&AUDIO-RADIO LESS & 6SPEAKER,SILVER,TRIM2# |
1 | ||
| 84250-0D320B0 |
NLP130..3D..N;NSP130..RHD..3D..N;NSP130..LHD..3D..6F..N PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH&AUDIO-FM/MW & CD & 6SPESKER,SILVER,TRIM2# |
1 | ||
| 84250-0D320B0 |
NLP130..3D..N;NSP130..RHD..3D..N;NSP130..LHD..3D..6F..N PRE-COLLISION SYSTEM-WITH&AUDIO-RADIO LESS & 6SPEAKER,SILVER,TRIM2# |
1 | ||
| 84250-0D320B0 |
NLP130..3D..N;NSP130..RHD..3D..N;NSP130..LHD..3D..6F..N PRE-COLLISION SYSTEM-WITH&AUDIO-FM/MW & CD & 6SPESKER,SILVER,TRIM2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D060 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84307-0D060 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84307-0D250 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
NHP130..N;KSP130,NLP130,NSP130..G,N,S WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 84450-71010 |
NHP130..N;KSP130,NLP130,NSP130 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D180 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84652-0D190 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84652-0D190 |
KSP130,NLP130,NSP130..3D..(G,N,S) PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84652-0D180 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84652-0D190 |
KSP130,NLP130,NSP130..3D..(G,N,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 84652-0D190 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(1407- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52261 |
NLP130 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 84231-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
2 | ||
| 84231-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84810-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84810-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
KSP130,NHP130,NLP130,NSP130..G POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D030 |
KSP130,NHP130,NLP130,NSP130..G POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D270 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 84820-0D270 |
NLP130,NSP130..RHD..5D..S;KSP130,NLP130,NSP130..RHD..(N,R) |
1 | ||
| 84820-0D270 |
KSP130,NLP130,NSP130..RHD..G |
1 | ||
| 84820-0D280 |
KSP130,NLP130,NSP130..RHD..G POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D270 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 84820-0D270 |
NLP130,NSP130..RHD..5D..S;KSP130,NLP130,NSP130..RHD..(N,R) |
1 | ||
| 84820-0D270 |
KSP130,NLP130,NSP130..RHD..G |
1 | ||
| 84820-0D280 |
KSP130,NLP130,NSP130..RHD..G POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-05040 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84840-28040 |
KSP130,NHP130,NLP130,NSP130..G,N,S WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 84840-05050 |
KSP130,NLP130,NSP130..3D..(G,N,S) WIRELESS DOOR LOCK-WITH(SMART KEY) |
1 | ||
| 84840-28030 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 84840-05040 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
ILLUST NO. 2 OF 7(1407- )KSP130,NLP130,NSP13#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 28551-30010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 28559-0N010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 28610-67010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 28850-40020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..N,R;1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52080 |
NLP130..3D..(G,S) |
1 | ||
| 82620-52080 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52080 |
NLP130..3D..(G,S) |
1 | ||
| 82620-52080 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52150 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82621-52150 |
NLP130..3D..(G,S) |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52150 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82621-52150 |
NLP130..3D..(G,S) |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928-52032 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928-52032 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 85928-52030 |
KSP130,NLP130,NSP130 |
1 | ||
| 85928-52032 |
KSP130,NLP130,NSP130 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-0D010 |
NLP130..3D..(G,S) |
1 | ||
| 85959-0D010 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0103 | ||||
| 90153-W0001 | ||||
| 90178-W0019 | ||||
| 90178-W0024 | ||||
| 90179-06178 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||

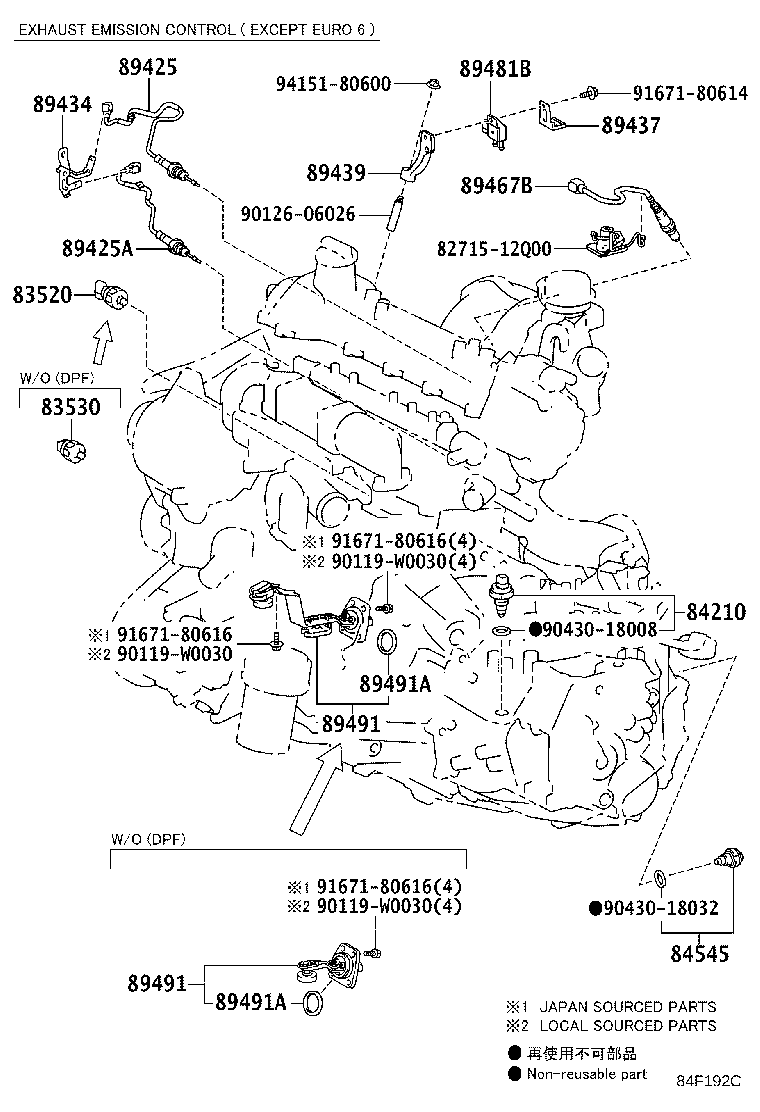

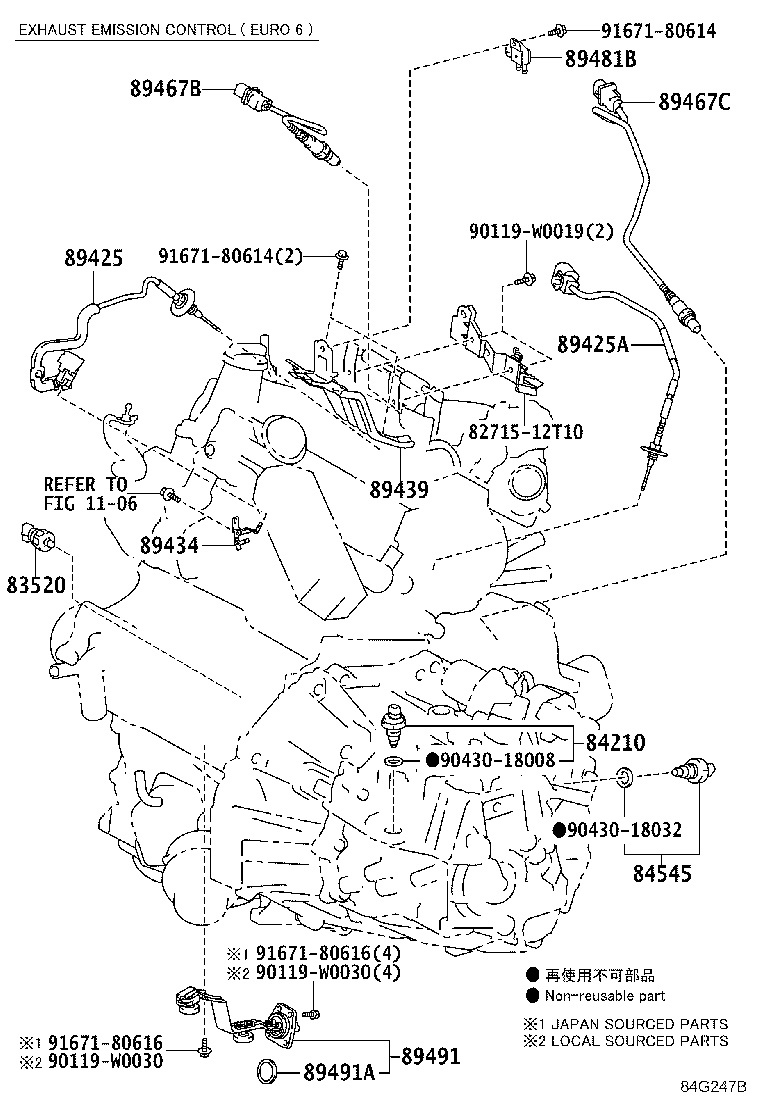

ILLUST NO. 1 OF 7(1407- )NLP130
ENGINE & TRANSMISSION(EXCEPT EURO6)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 83520-60060 |
NLP130..3D..(G,S) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NLP130,NSP130..6F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-02010 |
NLP130..3D..(G,S) |
1 | ||
| 89425-52031 |
NLP130 |
1 | ||
| 89425-02010 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-02020 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89425-52021 |
NLP130 |
1 | ||
| 89425-02020 |
NLP130..3D..(G,S) |
1 | ||
| 89434 - BRACKET, MANIFOLD TEMPERATURE SENSOR | ||||
| 89434-52050 |
NLP130..3D..(G,S) |
1 | ||
| 89434-52050 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-12110 |
NLP130 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-52010 |
NLP130 |
1 | ||
| 89439-12090 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89439-12090 |
NLP130..3D..(G,S) |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02100 |
NLP130..3D..(G,S) |
1 | ||
| 89467-02100 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89467-02080 |
NLP130 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
NLP130 |
1 | ||
| 89481-12050 |
NLP130 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52052 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89491-52051 |
NLP130 |
1 | ||
| 89491-52052 |
NLP130..3D..(G,S) |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52052 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89491-52051 |
NLP130 |
1 | ||
| 89491-52052 |
NLP130..3D..(G,S) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NLP130..3D..(G,S) |
1 | ||
| 90430-36005 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NLP130..3D..(G,S) |
1 | ||
| 90430-36005 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 82715-12Q00 | ||||
| 90119-W0030 | ||||
| 90126-06026 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 7(1407- )KSP130,NLP130,NSP130
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..N,R;1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..N,R;1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 28300-21020 |
1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..N,R;1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08300 |
KSP130,NLP130,NSP130..3D..(G,S) 50A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
KSP130,NLP130,NSP130..3D..(G,S) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
KSP130,NLP130,NSP130..3D..(G,S) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08294 |
KSP130,NLP130,NSP130..3D..(G,S) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08302 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08300 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 50A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
KSP130,NLP130,NSP130..3D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
KSP130,NLP130,NSP130..3D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
KSP130,NLP130,NSP130..3D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
KSP130,NLP130,NSP130..3D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09023 |
KSP130,NLP130,NSP130..3D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
KSP130,NLP130,NSP130..3D..(G,S) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
KSP130,NLP130,NSP130..3D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82616-58010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-0D010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82631-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-0D020 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82631-0D020 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-0D030 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82631-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-0D040 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82631-0D040 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52030 |
NLP130..3D..(G,S) |
1 | ||
| 82641-52030 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90080-87021 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 90080-87021 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-52120 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82660-52120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-52120 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82660-52120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82660-0H070 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82660-0H070 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 82660-26270 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82660-26270 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-26270 |
KSP130,NLP130,NSP130..N,R |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = BULB) & *AHB |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = BULB) & *AHB&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = LED) & *AHB |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = LED) & *AHB&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 82660-26270 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) HEADLAMP-MULTI REFLECTOR |
1 | ||
| 82660-26270 |
NLP130..3D..(G,S);NSP130..LHD..3D..CVT..(G,S);KSP130,NSP130..RHD..3D..(G,S) PRE-COLLISION SYSTEM-WITH&HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE))&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-26270 |
KSP130,NLP130,NSP130..N,R |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = BULB) & *AHB |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = BULB) & *AHB&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82660-0C110 |
NLP130..N,R;NSP130..LHD..CVT..N;KSP130,NSP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = LED) & *AHB |
1 | ||
| 82660-0C110 |
KSP130,NSP130..N,R;NLP130..RHD..(N,R) PRE-COLLISION SYSTEM-WITH&HEADLAMP-PROJECTOR(CLEARANCE LAMP = LED) & *AHB&REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D110 |
NLP130..3D..(G,S) |
1 | ||
| 82662-0D110 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0D321 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82662-0D320 |
KSP130,NLP130,NSP130 |
1 | ||
| 82662-0D321 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82662-0D310 |
KSP130,NLP130 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D060 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82663-0D060 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0D070 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82663-0D070 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D070 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82741-0D070 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0D080 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82741-0D080 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87021 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..G HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..G HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 90080-87030 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87021 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..N,R HEADLAMP-PROJECTOR(CLEARANCE LAMP(LED TYPE)) |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..N,R |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..3D..(G,S) HEADLAMP-MULTI REFLECTOR |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..3D..(G,S) HEADLAMP-MULTI REFLECTOR & *AHB |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..N,R HEADLAMP-PROJECTOR(CLEARANCE LAMP = LED) & *AHB |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..N,R HEADLAMP-PROJECTOR(CLEARANCE LAMP(BULB TYPE)) |
1 | ||
| 90080-87021 |
KSP130,NLP130,NSP130..N,R HEADLAMP-PROJECTOR(CLEARANCE LAMP = BULB) & *AHB |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 90080-87021 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP130,NLP130,NSP130 FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90080-87020 |
KSP130,NLP130,NSP130 (L) |
1 | ||
| 90987-04004 |
KSP130,NLP130,NSP130 (J) |
1 | ||
| 88185A - RELAY, PRE-COLLISION CITY HEATER | ||||
| 90080-87021 |
KSP130,NHP130,NLP130,NSP130 PRE-COLLISION SYSTEM-WITH |
1 | ||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 4 OF 7(1407- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 69065-02010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
KSP130,NLP130,NSP130..3D..(G,S) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
KSP130,NLP130,NSP130..3D..(G,S) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
KSP130,NLP130,NSP130..3D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KSP130,NLP130,NSP130..3D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
KSP130,NLP130,NSP130..3D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
KSP130,NLP130,NSP130..3D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09019 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
KSP130,NLP130,NSP130..3D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09023 |
KSP130,NLP130,NSP130..3D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
KSP130,NLP130,NSP130..3D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
KSP130,NLP130,NSP130..3D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
KSP130,NLP130,NSP130..3D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
KSP130,NLP130,NSP130..3D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09019 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
KSP130,NLP130,NSP130..3D..(G,S) 25A,MINI FUSE |
1 | ||
| 90982-09023 |
KSP130,NLP130,NSP130..3D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) 15A,MINI FUSE,BLUE |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
KSP130,NLP130,NSP130 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
KSP130,NLP130,NSP130 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52090 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 82672-52090 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52K40 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 82730-52K40 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 90987-02027 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84340-09100 |
KSP130,NLP130,NSP130..3D..(G,S) REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 84340-09180 |
NHP130..N;KSP130,NLP130,NSP130 REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 84340-09020 |
KSP130,NLP130,NSP130..5D..(G,S);KSP130,NHP130,NLP130,NSP130..N,R |
1 | ||
| 84340-09100 |
KSP130,NLP130,NSP130..5D..(G,S);KSP130,NHP130,NLP130,NSP130..N,R REAR COMBINATION LAMP-STOP LAMP(LED) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 84345-51010 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KSP130,NLP130,NSP130..MTM |
1 | ||
| 84520E - SWITCH ASSY, CLUTCH START, NO.2 | ||||
| 84520-42010 |
KSP130,NLP130,NSP130..RHD..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP130,NHP130,NLP130,NSP130 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87031 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-DEALER OPTION,(L) |
1 | ||
| 90080-87031 |
NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N,R (L) |
1 | ||
| 90080-87031 |
NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N FRONT AIR CONDITIONER-AUTO,(L) |
1 | ||
| 90987-04010 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-HEATER ONLY,(J) |
1 | ||
| 90987-04010 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-DEALER OPTION,(J) |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..G (L) |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-AUTO,(L) |
1 | ||
| 90987-04010 |
KSP130,NLP130,NSP130..G (J) |
1 | ||
| 90987-04010 |
NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N,R (J) |
1 | ||
| 90080-87031 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-HEATER ONLY,(L) |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| 90080-87020 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 90080-87020 |
KSP130,NLP130,NSP130..5D..(G,S);KSP130,NHP130,NLP130,NSP130..N,R PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0D030 |
KSP130,NLP130,NSP130..3D..(G,N,S) PRE-COLLISION SYSTEM-WITH&LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 85940-0D030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85940-0D030 |
KSP130,NLP130,NSP130..3D..(G,N,S) LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 85940-0D030 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-52050 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 85970-52050 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 85970-52050 |
KSP130,NLP130,NSP130..RHD..R POWER DOOR LOCK-DOUBLE LOCK |
1 | ||
| 85970-52050 |
KSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S) |
1 | ||
| 85970-52050 |
KSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S) WIRELESS DOOR LOCK-WITH(1 TRANSMITTER) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-52010 |
NLP130 CRUISE CONTROL-WITH |
1 | ||
| 88152 - BRACKET, DRIVING SUPPORT COMPUTER | ||||
| 88152-0D020 |
NLP130..RHD CRUISE CONTROL-WITH |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-52030 |
NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89100-52030 |
KSP130,NLP130,NSP130..3D..(G,S) PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
KSP130,NLP130,NSP130..N,S LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89121-52010 |
NHP130;KSP130,NLP130,NSP130..G LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME) |
1 | ||
| 89121-52010 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-HEATER ONLY |
1 | ||
| 89121-52010 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 89121-52010 |
KSP130,NLP130,NSP130..G |
1 | ||
| 89121-52010 |
KSP130,NLP130,NSP130..G FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89121-52010 |
NLP130,NSP130..5D..S;KSP130,NLP130,NSP130..N FRONT AIR CONDITIONER-AUTO |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0D140 |
KSP130,NLP130,NSP130..RHD..MTM EXCEPT UK |
1 | ||
| 89220-0D141 |
KSP130,NLP130,NSP130..RHD..MTM |
1 | ||
| 89220-0D310 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) UK SPEC |
1 | ||
| 89220-0D230 |
KSP130,NLP130,NSP130..RHD..MTM UK SPEC |
1 | ||
| 89220-0D280 |
KSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S) |
1 | ||
| 89220-0D280 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) |
1 | ||
| 89220-0D310 |
KSP130,NLP130,NSP130..RHD..(N,R);KSP130,NLP130,NSP130..RHD..5D..(G,S) UK SPEC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D283 |
KSP130,NLP130,NSP130..RHD..R TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT) |
1 | ||
| 89650-0D274 |
KSP130,NLP130,NSP130..RHD..(G,N,R) |
1 | ||
| 89650-0D283 |
KSP130,NLP130,NSP130..RHD..(G,N,R) TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-0D283 |
KSP130,NLP130,NSP130..RHD..(G,N,S) TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 89650-0D255 |
NSP130..RHD..3D..S;NLP130..RHD..3D..(G,S) |
1 | ||
| 89650-0D511 |
NLP130..RHD..(G,N,R) CRUISE CONTROL-WITH |
1 | ||
| 89650-0D521 |
NLP130..RHD..R CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT) |
1 | ||
| 89650-0D521 |
NLP130..RHD..(G,N,R) CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-0D521 |
NLP130..RHD..(G,N,S) CRUISE CONTROL-WITH&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 89650-0D255 |
NLP130..RHD..(N,R);NSP130..RHD..5D..S;NLP130..RHD..5D..(G,S) |
1 | ||
| 89650-0D284 |
KSP130,NLP130,NSP130..RHD..3D..(G,S) TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 89650-0D284 |
KSP130,NLP130,NSP130..RHD..G TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-0D284 |
KSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S) TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC |
1 | ||
| 89650-0D284 |
KSP130,NLP130,NSP130..RHD..(N,R) TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC |
1 | ||
| 89650-0D284 |
KSP130,NLP130,NSP130..RHD..R TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT) |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0D120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 89690-0D120 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0D120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 89690-0D120 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-0D120 |
KSP130,NLP130,NSP130..3D..(G,S) |
1 | ||
| 89690-0D120 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 82715-0DE00 | ||||
| 82715-0DE20 | ||||
| 90119-W0143 | ||||
| 90119-W0174 | ||||
| 90159-60550 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90170-W0002 | ||||
| 90178-W0019 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 7(1505- )NLP130
ENGINE & TRANSMISSION(EURO6)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 83520-60060 |
NLP130..3D..(G,S) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NLP130,NSP130..6F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-02010 |
NLP130..3D..(G,S) |
1 | ||
| 89425-52031 |
NLP130 |
1 | ||
| 89425-02010 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-02020 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89425-52021 |
NLP130 |
1 | ||
| 89425-02020 |
NLP130..3D..(G,S) |
1 | ||
| 89434 - BRACKET, MANIFOLD TEMPERATURE SENSOR | ||||
| 89434-52050 |
NLP130..3D..(G,S) |
1 | ||
| 89434-52050 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-52010 |
NLP130 |
1 | ||
| 89439-12090 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89439-12090 |
NLP130..3D..(G,S) |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02100 |
NLP130..3D..(G,S) |
1 | ||
| 89467-02100 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89467-02080 |
NLP130 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-02110 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89467-02110 |
NLP130..3D..(G,S) |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
NLP130 |
1 | ||
| 89481-12050 |
NLP130 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-52052 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 89491-52051 |
NLP130 |
1 | ||
| 89491-52052 |
NLP130..3D..(G,S) |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-36005 |
NLP130..3D..(G,S) |
1 | ||
| 90430-36005 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 82715-12T10 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
