NLP130R-CGFNXW (2014)
Toyota Yaris/Hybrid(Frp)
Production
Jul 2014
-
Mar 2017
Engine
1NDTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1407- )NLP130

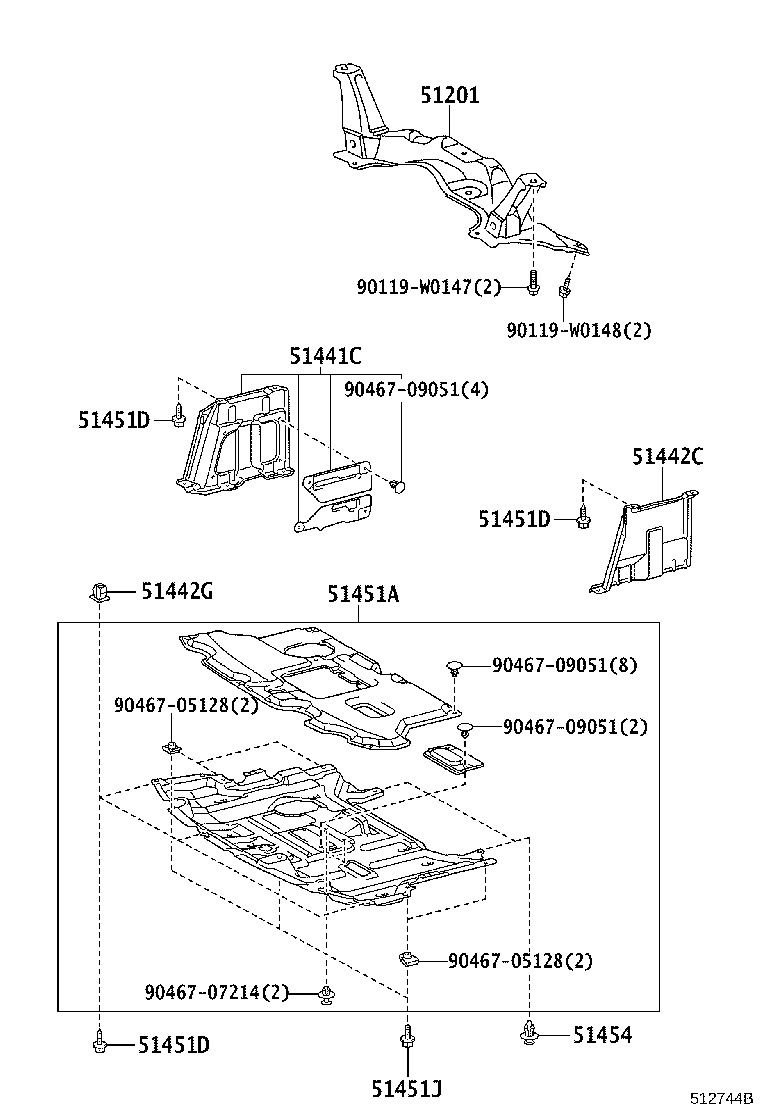

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-0D106 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 51201-0D106 |
NLP130..3D..(G,S) |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-0D240 |
NLP130..3D..(G,S) |
1 | ||
| 51441-0D240 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-0D150 |
NLP130..3D..(G,S) |
1 | ||
| 51442-0D150 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90189-06237 |
KSP130,NHP130,NLP130,NSP130 |
3 | ||
| 51451A - COVER, ENGINE UNDER, CENTER | ||||
| 51451-0D011 |
NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 51451-0D011 |
NLP130..3D..(G,S) |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-W0007 |
NLP130..3D..(G,S) |
7 | ||
| 90159-W0007 |
NLP130..N,R;NLP130..5D..(G,S) |
7 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-W0007 |
NLP130..3D..(G,S) |
7 | ||
| 90159-W0007 |
NLP130..N,R;NLP130..5D..(G,S) |
7 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-W0007 |
NLP130..3D..(G,S) |
7 | ||
| 90159-W0007 |
NLP130..N,R;NLP130..5D..(G,S) |
7 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-W0089 |
KSP130,NHP130,NLP130,NSP130 |
5 | ||
| 51454 - CLIP | ||||
| 90467-W0014C0 |
NLP130 BLACK |
2 | ||
| Common parts | ||||
| 90119-W0147 | ||||
| 90119-W0148 | ||||
| 90467-05128 | ||||
| 90467-07214 | ||||
| 90467-09051 | ||||
