NLP130R-CGFGXW (2014)
Toyota Yaris/Hybrid(Frp)

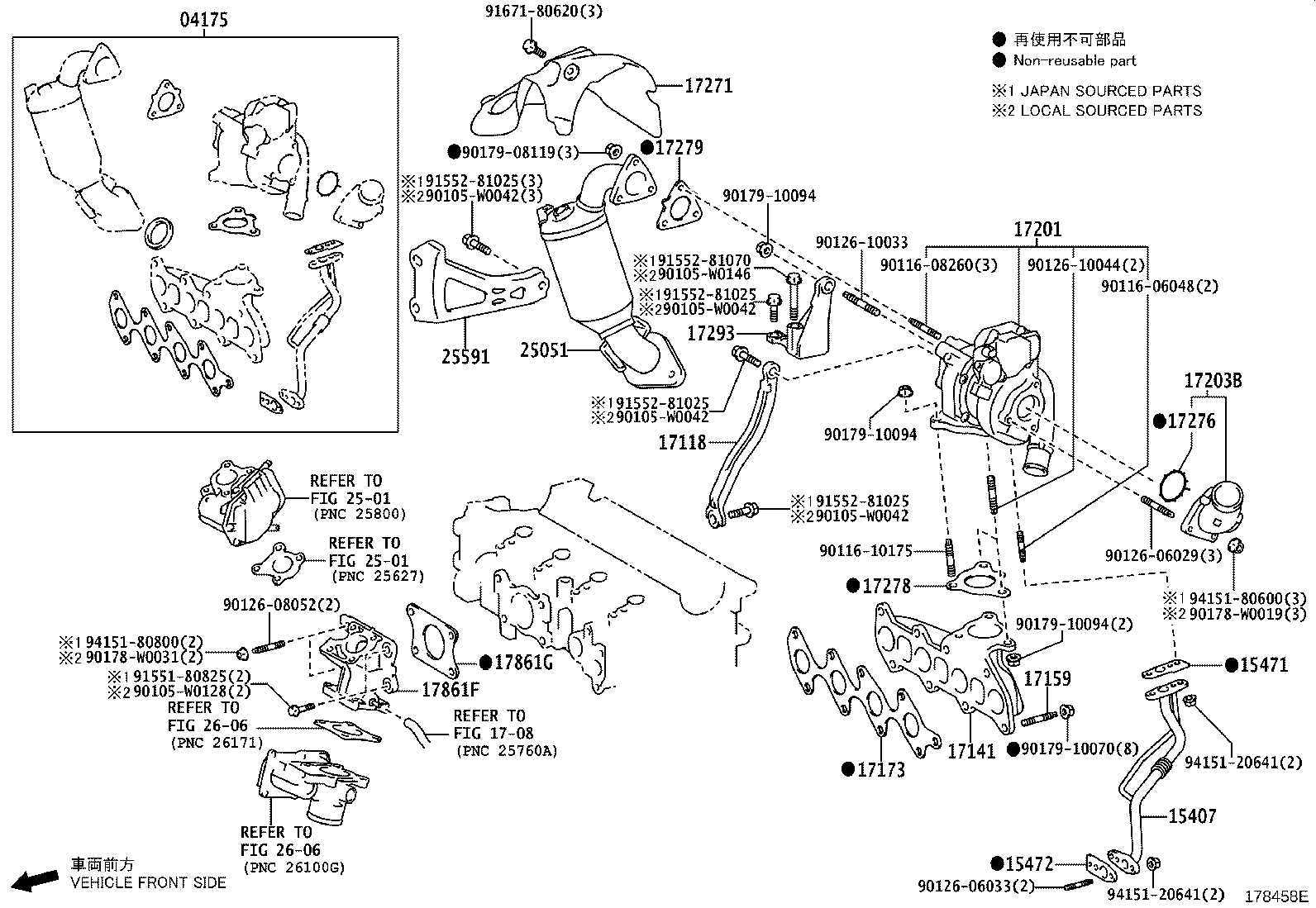

(1407- )1NDTV
W(DPF) EXCEPT EURO6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-33070 |
1NDTV..NLP130 |
1 | ||
| 04175-33071 |
1NDTV..NLP130 |
1 | ||
| 04175-33110 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-33021 |
1NDTV..NLP130 |
1 | ||
| 15407-33021 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 15407-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0N010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15471-33010 |
1NDTV..NLP130 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-33020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15472-33020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-33040 |
1NDTV..NLP130 |
1 | ||
| 17118-33070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-33050 |
1NDTV..NLP130 |
1 | ||
| 17141-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10033 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
8 | ||
| 90126-10033 |
1NDTV..NLP130..3D..(G,S) |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-33030 |
1NDTV..NLP130 |
1 | ||
| 17173-33031 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0N042 |
1NDTV..NLP130 |
1 | ||
| 17201-0N070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-33010 |
1NDTV..NLP130 |
1 | ||
| 17203-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17203-33010 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17271-33090 |
1NDTV..NLP130 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-33010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17276-33010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-33010 |
1NDTV..NLP130 |
1 | ||
| 17278-33040 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-27020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17279-27020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 17293-33030 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293-33010 |
1NDTV..NLP130 (J) |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-33080 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17861-33080 |
1NDTV..NLP130 |
1 | ||
| 17861-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-33050 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 26171-33050 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-33090 |
1NDTV..NLP130 *114=*407 |
1 | ||
| 25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2 | ||||
| 25052-33040 |
1NDTV..NLP130 *114=*257 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| Common parts | ||||
| 90105-W0042 | ||||
| 90105-W0128 | ||||
| 90116-06048 | ||||
| 90116-08260 | ||||
| 90116-10175 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 90126-06033 | ||||
| 90126-08052 | ||||
| 90126-10033 | ||||
| 90126-10044 | ||||
| 90178-W0031 | ||||
| 90178-W0047 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 90179-10094 | ||||
| 90917-06045 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 91552-81070 | ||||
| 91671-80620 | ||||
| 91672-81025 | ||||
| 94151-20641 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94151-81041 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
| 2606 | ||||

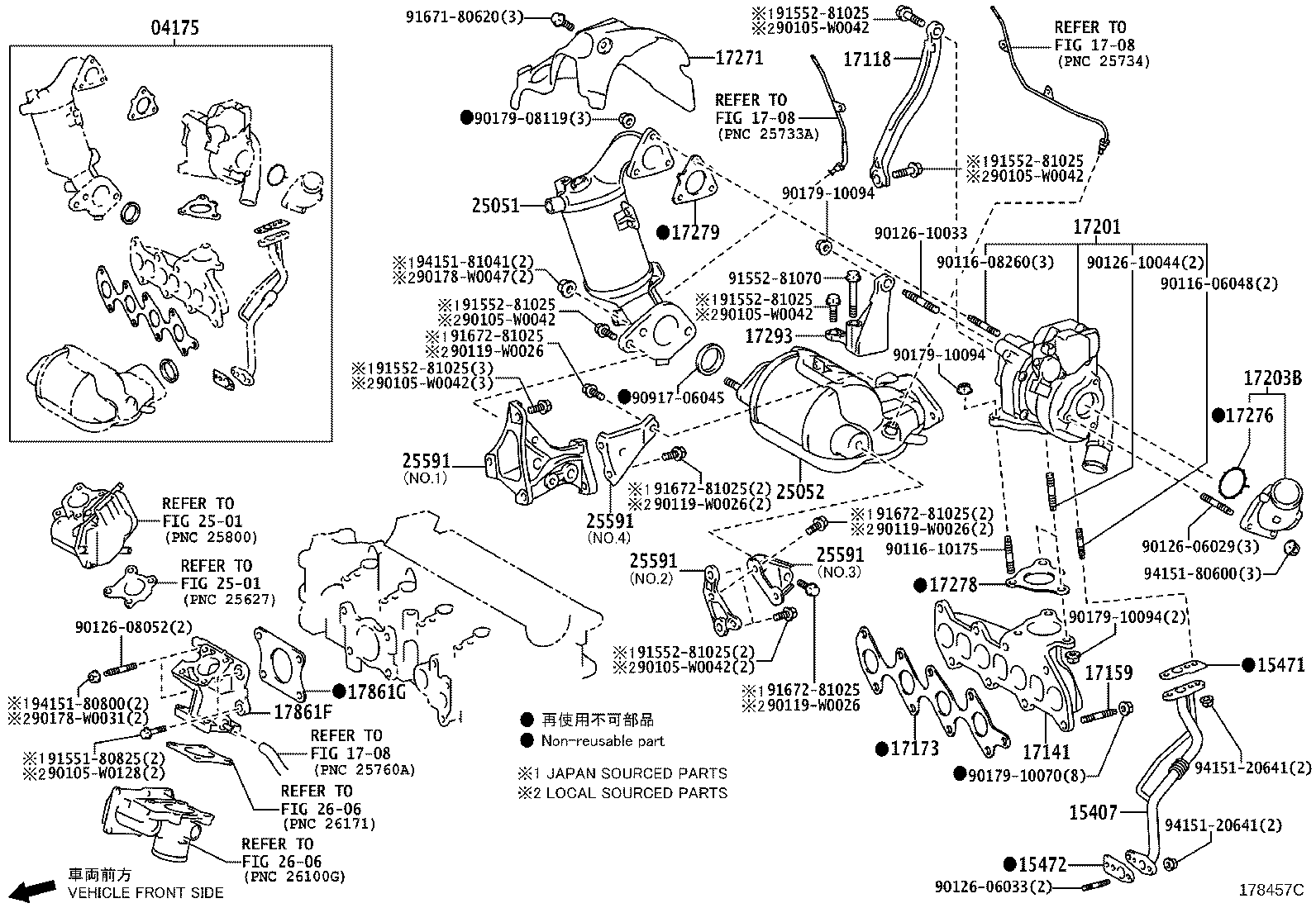

(1407- )1NDTV
W/O(DPF) EXCEPT EURO6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-33070 |
1NDTV..NLP130 |
1 | ||
| 04175-33071 |
1NDTV..NLP130 |
1 | ||
| 04175-33110 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-33021 |
1NDTV..NLP130 |
1 | ||
| 15407-33021 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 15407-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0N010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15471-33010 |
1NDTV..NLP130 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-33020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15472-33020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-33040 |
1NDTV..NLP130 |
1 | ||
| 17118-33070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-33050 |
1NDTV..NLP130 |
1 | ||
| 17141-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10033 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
8 | ||
| 90126-10033 |
1NDTV..NLP130..3D..(G,S) |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-33030 |
1NDTV..NLP130 |
1 | ||
| 17173-33031 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0N042 |
1NDTV..NLP130 |
1 | ||
| 17201-0N070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-33010 |
1NDTV..NLP130 |
1 | ||
| 17203-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17203-33010 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17271-33090 |
1NDTV..NLP130 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-33010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17276-33010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-33010 |
1NDTV..NLP130 |
1 | ||
| 17278-33040 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-27020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17279-27020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 17293-33030 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293-33010 |
1NDTV..NLP130 (J) |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-33080 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17861-33080 |
1NDTV..NLP130 |
1 | ||
| 17861-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-33050 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 26171-33050 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-33090 |
1NDTV..NLP130 *114=*407 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| Common parts | ||||
| 90105-W0042 | ||||
| 90105-W0128 | ||||
| 90105-W0146 | ||||
| 90116-06048 | ||||
| 90116-08260 | ||||
| 90116-10175 | ||||
| 90126-06029 | ||||
| 90126-06033 | ||||
| 90126-08052 | ||||
| 90126-10033 | ||||
| 90126-10044 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 90179-10094 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 91552-81070 | ||||
| 91671-80620 | ||||
| 94151-20641 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
| 2606 | ||||

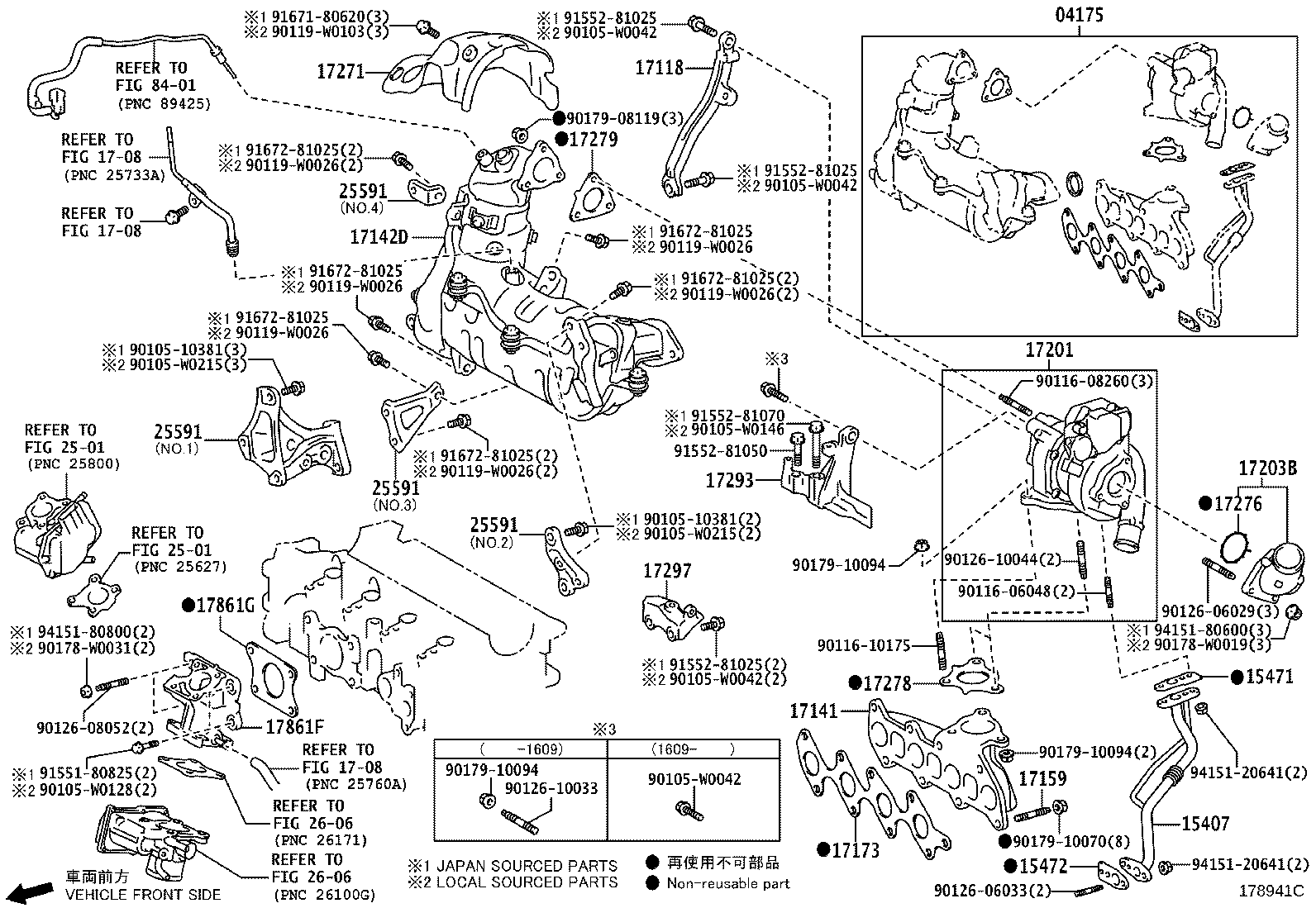

(1505- )1NDTV
EURO6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-33070 |
1NDTV..NLP130 |
1 | ||
| 04175-33071 |
1NDTV..NLP130 |
1 | ||
| 04175-33110 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-33021 |
1NDTV..NLP130 |
1 | ||
| 15407-33021 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 15407-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0N010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15471-33010 |
1NDTV..NLP130 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-33020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 15472-33020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-33040 |
1NDTV..NLP130 |
1 | ||
| 17118-33070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-33050 |
1NDTV..NLP130 |
1 | ||
| 17141-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17142D - MANIFOLD, EXHAUST, NO.2 | ||||
| 17140-0N030 |
1NDTV..NLP130..3D..(G,S) *114=TOYOTA/0N030/Y |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10033 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
8 | ||
| 90126-10033 |
1NDTV..NLP130..3D..(G,S) |
8 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-33030 |
1NDTV..NLP130 |
1 | ||
| 17173-33031 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0N042 |
1NDTV..NLP130 |
1 | ||
| 17201-0N070 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-33010 |
1NDTV..NLP130 |
1 | ||
| 17203-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17203-33010 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-33080 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17271-33090 |
1NDTV..NLP130 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-33010 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17276-33010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-33010 |
1NDTV..NLP130 |
1 | ||
| 17278-33040 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-27020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 17279-27020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 17293-33030 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17293-33010 |
1NDTV..NLP130 (J) |
1 | ||
| 17297 - STAY, TURBOCHARGER, NO.2 | ||||
| 17297-33020 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-33080 |
1NDTV..NLP130..3D..(G,S) (J) |
1 | ||
| 17861-33080 |
1NDTV..NLP130 |
1 | ||
| 17861-0N010 |
1NDTV..NLP130..3D..(G,S) (L) |
1 | ||
| 17861G - GASKET, INTAKE AIR CONNECTOR | ||||
| 26171-33050 |
1NDTV..NLP130..3D..(G,S) |
1 | ||
| 26171-33050 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-0N010 |
1NDTV..NLP130 (L),NO.1:SEE ILLUST |
1 | ||
| 25594-0N010 |
1NDTV..NLP130 (L),NO.4:SEE ILLUST |
1 | ||
| 25592-33020 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
1 | ||
| 25593-0N010 |
1NDTV..NLP130 (L),NO.3:SEE ILLUST |
1 | ||
| 25593-33010 |
1NDTV..NLP130 (J),NO.3:SEE ILLUST |
1 | ||
| 25594-33010 |
1NDTV..NLP130 (J),NO.4:SEE ILLUST |
1 | ||
| 25591-33050 |
1NDTV..NLP130 (J),NO.1:SEE ILLUST |
1 | ||
| Common parts | ||||
| 90105-10381 | ||||
| 90105-W0042 | ||||
| 90105-W0128 | ||||
| 90105-W0146 | ||||
| 90105-W0215 | ||||
| 90116-06048 | ||||
| 90116-08260 | ||||
| 90116-10175 | ||||
| 90119-W0026 | ||||
| 90119-W0103 | ||||
| 90126-06029 | ||||
| 90126-06033 | ||||
| 90126-08052 | ||||
| 90126-10033 | ||||
| 90126-10044 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 90179-10094 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 91552-81050 | ||||
| 91552-81070 | ||||
| 91671-80620 | ||||
| 91672-81025 | ||||
| 94151-20641 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
| 2606 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
