NLP130L-CHFSXW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NLP130

Click highlighted areas on diagram

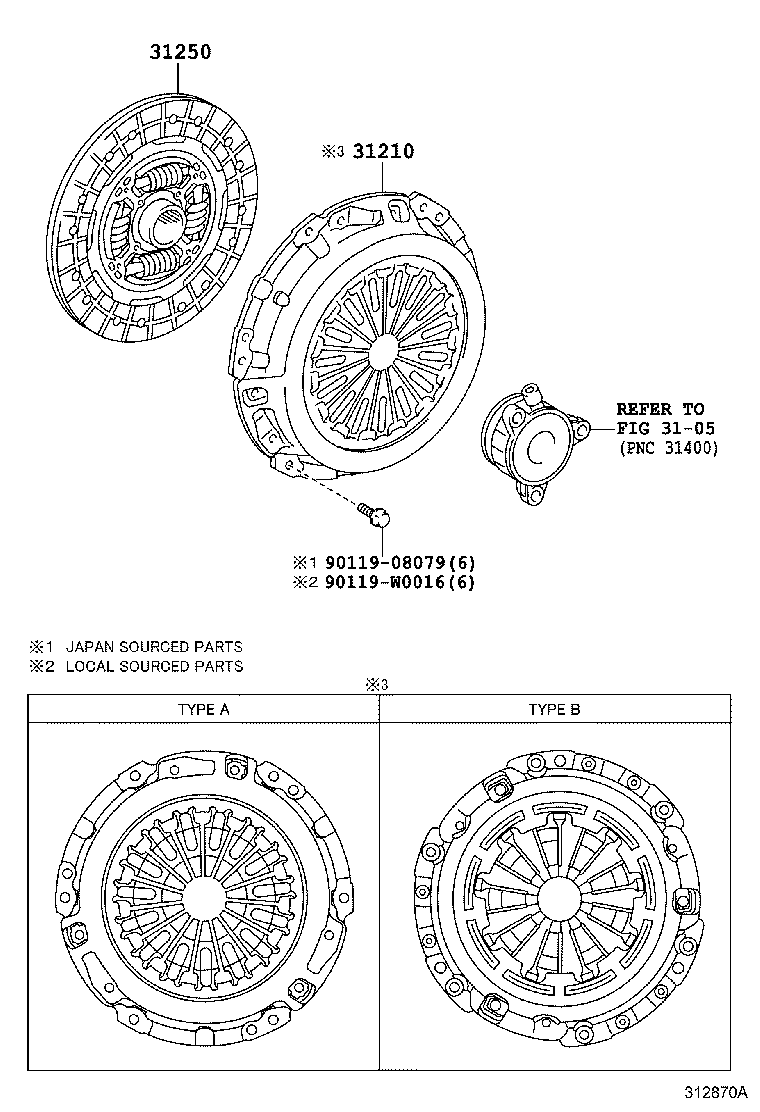

diagram 3105 31210 31250 9011908079 90119W0016
Part # Description Qty Price
31210 - COVER ASSY, CLUTCH
31210-02350

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.

 1
31210-02350

NLP130

TYPE B:REFER ILLUST.

 1
31210-52100

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE A:REFER ILLUST.

 1
31210-52100

NLP130

TYPE A:REFER ILLUST.

 1
31210-52100

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.

 1
31210-02350

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B:REFER ILLUST.

 1
31250 - DISC ASSY, CLUTCH
31250-02310

NLP130

 1
31250-52260

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

 1
31250-02310

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
31250-52260

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION

 1
31250-02310

NLP130..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)

 1
31250-52260

NLP130

PNC 31210=TYPE A

 1
Common parts
90119-08079
90119-W0016
Linked diagrams
3105
