NLP130L-CHFSXW (2014)
Toyota Yaris/Hybrid(Frp)

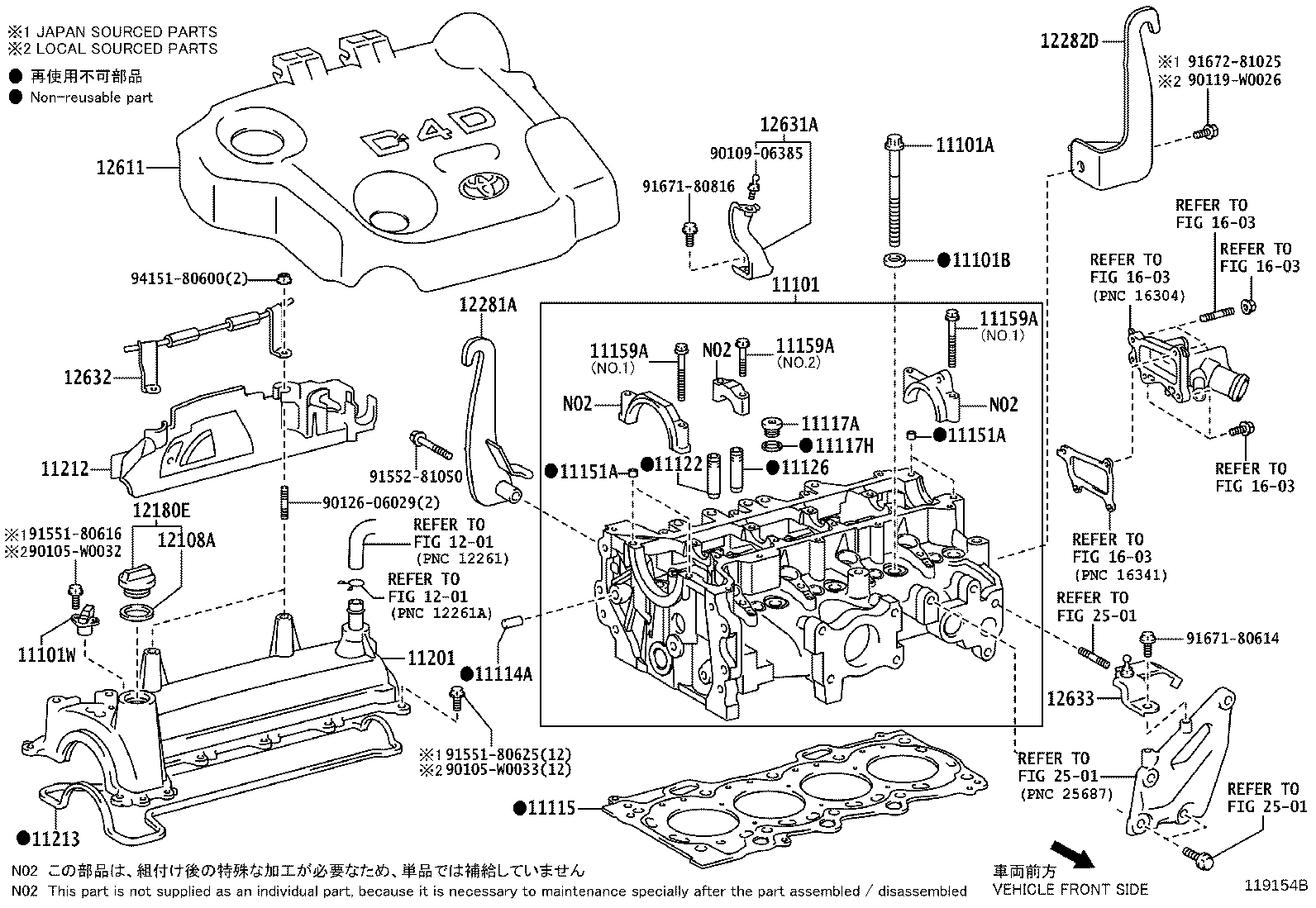

(1407- )1NDTV
EXCEPT EURO6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-33061 |
1NDTV..NLP130 |
1 | ||
| 11101-33061 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11101-33061 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 11101-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02171 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13042 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
10 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05029 |
1NDTV..NLP130 |
1 | ||
| 90919-05029 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 90919-05029 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-10030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=36,OD=10 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-33040C0 |
1NDTV..NLP130 MARKC,REFER REPAIR MANUAL |
1 | ||
| 11115-33040A0 |
1NDTV..NLP130 MARKA,REFER REPAIR MANUAL |
1 | ||
| 11115-33040B0 |
1NDTV..NLP130 MARKB,REFER REPAIR MANUAL |
1 | ||
| 11115-33040D0 |
1NDTV..NLP130 MARKD,REFER REPAIR MANUAL |
1 | ||
| 11115-33041B0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-33041A0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-33041C0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-33040E0 |
1NDTV..NLP130 MARKE,REFER REPAIR MANUAL |
1 | ||
| 11115-33041D0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-33041E0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK E,REFER REPAIR MANUAL |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-14008 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) STD |
4 | ||
| 11123-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) STD |
4 | ||
| 11123-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) O/S 0.05 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=10,OD=8 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=10,OD=8 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 11201-33041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 11201-0N030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130 (L) |
1 | ||
| 11201-33041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-33031 |
1NDTV..NLP130 |
1 | ||
| 11212-33031 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11212-33031 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33030 |
1NDTV..NLP130 |
1 | ||
| 11213-33030 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 11213-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11213-33030 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11213-33031 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1NZFXE..NHP130;1NDTV,1NRFE..NLP130,NSP130..N,R;1NDTV,1NRFE..NLP130,NSP130..5D..(G,S) |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-38010 |
1NZFXE..NHP130;1NDTV,1NRFE..NLP130,NSP130..N,R;1NDTV,1NRFE..NLP130,NSP130..5D..(G,S) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-33050 |
1NDTV..NLP130 |
1 | ||
| 12281-33080 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12281-33050 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12281-33050 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-33022 |
1NDTV..NLP130 |
1 | ||
| 12282-33022 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12282-33022 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12282-0N020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0N041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12611-0N100 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12611-0N041 |
1NDTV..NLP130 |
1 | ||
| 12611-0N041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12631-0N020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12631-33020 |
1NDTV..NLP130 (J) |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 12632-33041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 12632-33050 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12632-33041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 12633 - BRACKET, ENGINE COVER, NO.3 | ||||
| 12633-33020 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 12633-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12633-33020 |
1NDTV..NLP130 (J) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 12633-33020 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90109-06385 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91552-81050 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2501 | ||||

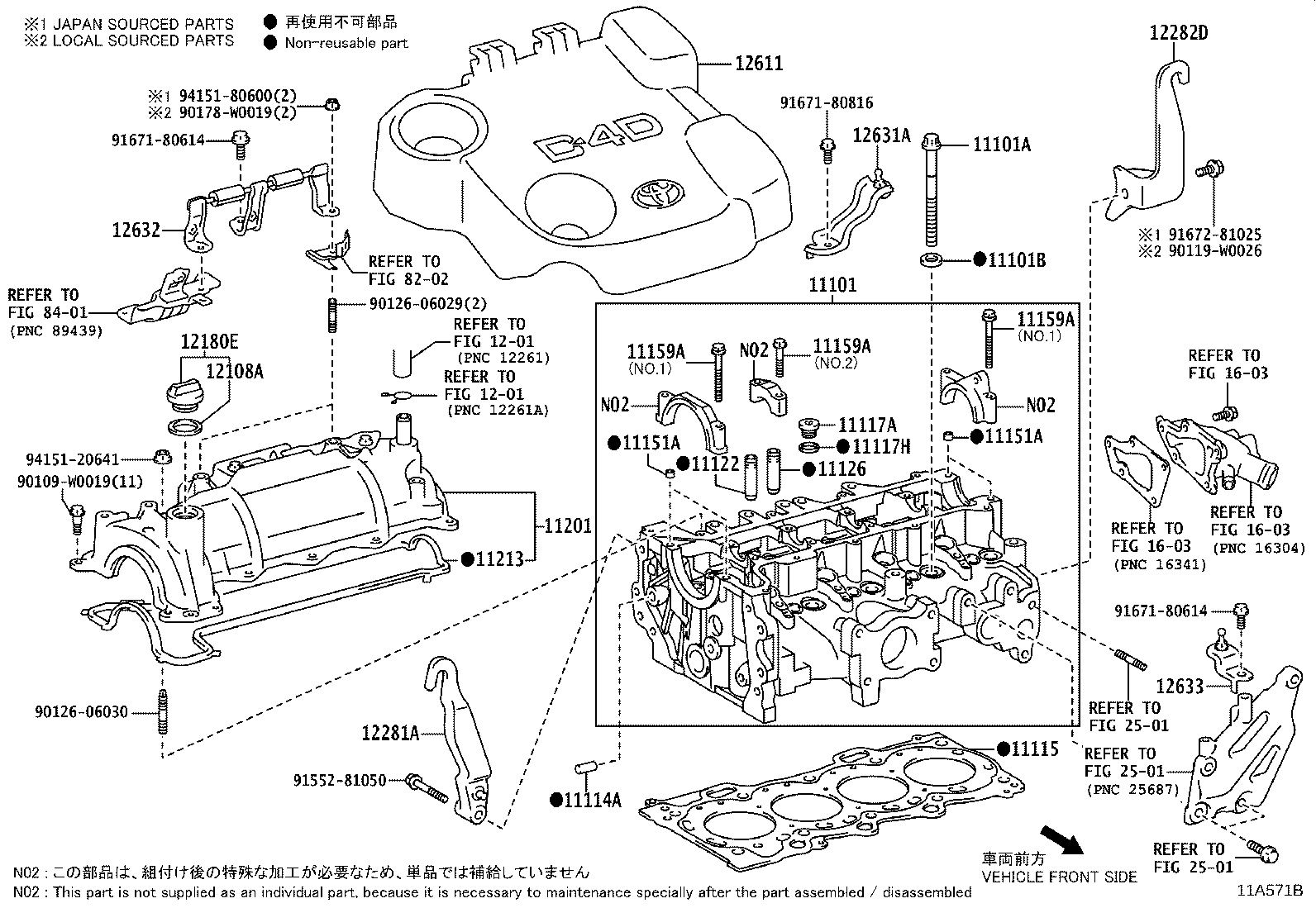

(1505- )1NDTV
EURO6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-33061 |
1NDTV..NLP130 |
1 | ||
| 11101-33061 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11101-33061 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 11101-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02171 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13042 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
10 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-10030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=36,OD=10 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-33040C0 |
1NDTV..NLP130 MARKC,REFER REPAIR MANUAL |
1 | ||
| 11115-33040A0 |
1NDTV..NLP130 MARKA,REFER REPAIR MANUAL |
1 | ||
| 11115-33040B0 |
1NDTV..NLP130 MARKB,REFER REPAIR MANUAL |
1 | ||
| 11115-33040D0 |
1NDTV..NLP130 MARKD,REFER REPAIR MANUAL |
1 | ||
| 11115-33041B0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK B,REFER REPAIR MANUAL |
1 | ||
| 11115-33041A0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK A,REFER REPAIR MANUAL |
1 | ||
| 11115-33041C0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK C,REFER REPAIR MANUAL |
1 | ||
| 11115-33040E0 |
1NDTV..NLP130 MARKE,REFER REPAIR MANUAL |
1 | ||
| 11115-33041D0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK D,REFER REPAIR MANUAL |
1 | ||
| 11115-33041E0 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) MARK E,REFER REPAIR MANUAL |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-14008 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-14008 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) STD |
4 | ||
| 11123-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) STD |
4 | ||
| 11123-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) O/S 0.05 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=10,OD=8 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) L=10,OD=8 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07008 |
1NDTV..NLP130 NO.1:REFER ILLUST. |
4 | ||
| 90119-07009 |
1NDTV..NLP130 NO.2:REFER ILLUST. |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 11201-33041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 11201-0N030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130 (L) |
1 | ||
| 11201-33041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 11201-0N020 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-33030 |
1NDTV..NLP130 |
1 | ||
| 11213-33030 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 11213-0N010 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 11213-33030 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 11213-33031 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1NZFXE..NHP130;1NDTV,1NRFE..NLP130,NSP130..N,R;1NDTV,1NRFE..NLP130,NSP130..5D..(G,S) |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-38010 |
1NZFXE..NHP130;1NDTV,1NRFE..NLP130,NSP130..N,R;1NDTV,1NRFE..NLP130,NSP130..5D..(G,S) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-33050 |
1NDTV..NLP130 |
1 | ||
| 12281-33080 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12281-33050 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12281-33050 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-33022 |
1NDTV..NLP130 |
1 | ||
| 12282-33022 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12282-33022 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12282-0N020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0N041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION |
1 | ||
| 12611-0N100 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12611-0N041 |
1NDTV..NLP130 |
1 | ||
| 12611-0N041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12631-0N020 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12631-33020 |
1NDTV..NLP130 (J) |
1 | ||
| 12632 - BRACKET, ENGINE COVER, NO.2 | ||||
| 12632-33041 |
1NDTV..NLP130 (J) |
1 | ||
| 12632-33041 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 12632-0N010 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 12632-33050 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12632-33041 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 12633 - BRACKET, ENGINE COVER, NO.3 | ||||
| 12633-33020 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(J) |
1 | ||
| 12633-33030 |
1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130 (L) |
1 | ||
| 12633-33020 |
1NDTV..NLP130 (J) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION,(L) |
1 | ||
| 12633-33020 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J) |
1 | ||
| 12633-0N010 |
1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L) |
1 | ||
| Common parts | ||||
| 90109-W0019 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 90126-06030 | ||||
| 90178-W0019 | ||||
| 91552-81050 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91672-81025 | ||||
| 94151-20641 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 2501 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
