NLP130L-CHFRXW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NLP130

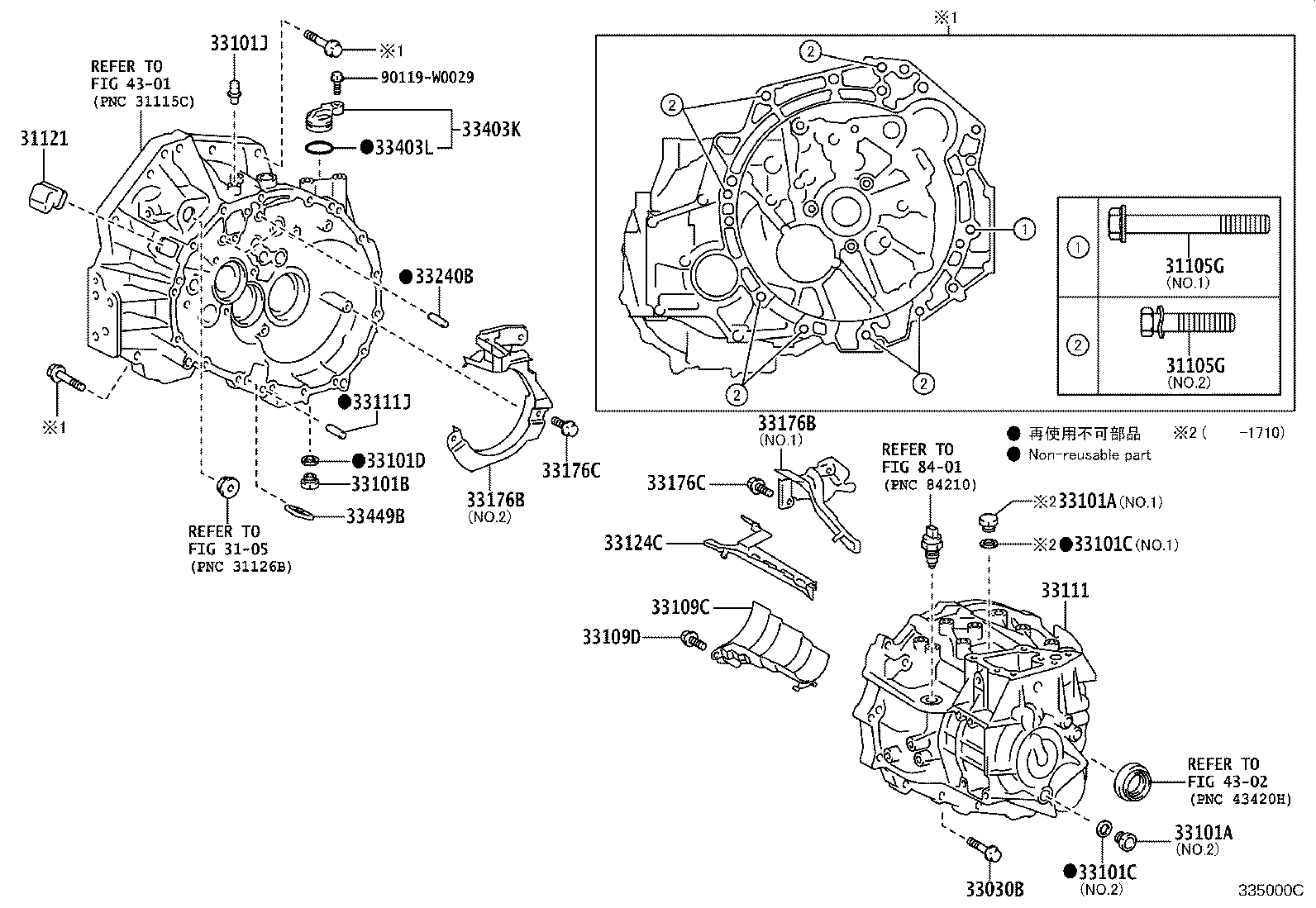

Click highlighted areas on diagram

EC65,EC69

diagram 3105 31105G 31105G 31121 33030B 33101A 33101A 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111J 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 4301 4302 8401 90119W0029
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0044

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX80-26,(L),NO.1:SEE ILLUST

 1
91552-81080

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX80-26,(J),NO.1:SEE ILLUST

 1
91612-61045

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX45-30,(J),NO.2:SEE ILLUST

 7
90119-W0155

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX45-30,(L),NO.2:SEE ILLUST

 7
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0044

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX80-26,(L),NO.1:SEE ILLUST

 1
91552-81080

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX80-26,(J),NO.1:SEE ILLUST

 1
91612-61045

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX45-30,(J),NO.2:SEE ILLUST

 7
90119-W0155

NLP130..N,R;NLP130..5D..(G,S)

*10-1.25PX45-30,(L),NO.2:SEE ILLUST

 7
31121 - COVER, CLUTCH HOUSING, NO.1
31121-05010

NLP130,NSP130..6F

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

NLP130,NSP130..6F

*8-1.25PX40-22

 16
90105-W0209

NLP130,NSP130..6F

*8-1.25PX40-22,(L)

 16
91551-10840

NLP130,NSP130..6F

*8-1.25PX40-22,(J)

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
90341-18033

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
90341-18033

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18023

NLP130,NSP130..6F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
90430-14003

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
90430-14003

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010

NLP130,NSP130..6F

 1
33101J - PLUG, BREATHER
90930-03133

NLP130,NSP130..6F

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-0D010

NLP130,NSP130..6F

 1
33109-0D011

NLP130,NSP130..6F

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
91551-80816

NLP130,NSP130..6F

(J)

 4
90105-W0035

NLP130,NSP130..6F

(L)

 4
33111 - CASE, MANUAL TRANSMISSION
33111-02050

NLP130,NSP130..6F

 1
33111-05041

NLP130..LHD

WITH(STOP & START SYSTEM)

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NLP130,NSP130..6F

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-0D050

NLP130,NSP130..6F

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
33176-0D020

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-0D030

NLP130,NSP130..6F

NO.2:REFER ILLUST.

 1
33176-0D020

NLP130,NSP130..6F

NO.1:REFER ILLUST.

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

NLP130,NSP130..6F

(L)

 6
91551-80816

NLP130,NSP130..6F

(J)

 6
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035

NLP130,NSP130..6F

(L)

 6
91551-80816

NLP130,NSP130..6F

(J)

 6
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NLP130,NSP130..6F

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NLP130,NSP130..6F..(N,R);NLP130,NSP130..5D..6F..(G,S)

 1
33403L - RING, O
96711-24030

NLP130,NSP130..6F..(N,R);NLP130,NSP130..5D..6F..(G,S)

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NLP130,NSP130..6F

 1
Common parts
90119-W0029
