Toyota Yaris/hybrid(frp) NLP130 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
EU
YARIS/HYBRID(FRP)
NLP130L-CGFSXW (2014)
1106 - TIMING GEAR COVER & REAR END PLATE

NLP130L-CGFSXW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Nov 2015

Engine 1NDTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

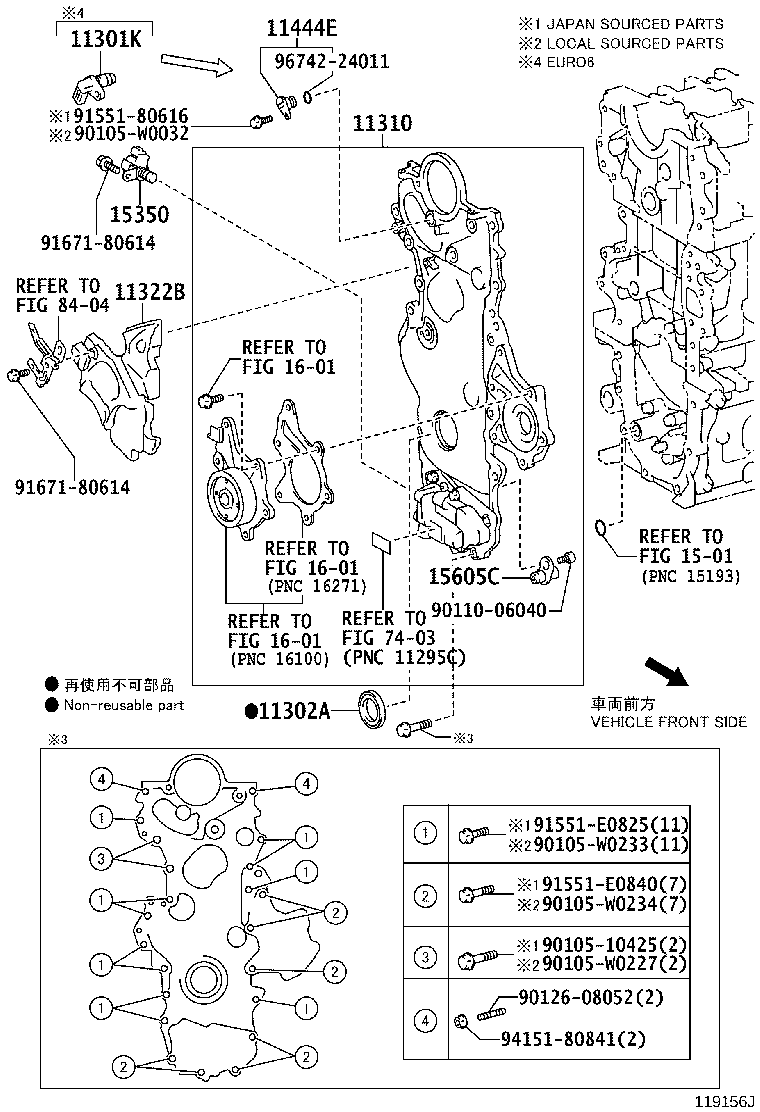

(1407- )1NDTV

Click highlighted areas on diagram

W(DPF)

Part #	Description	Period	Qty
11301K - SENSOR, CRANK POSITION
90919-05084	1NDTV..NLP130..3D..(G,S)	05/2015 - 11/2015	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40040	1NDTV..NLP130..3D..(G,S)	07/2014 - 11/2015	1
90311-40040	1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)	07/2014 - 03/2017	1
11310 - COVER ASSY, TIMING CHAIN
11310-0N011	1NDTV..NLP130	07/2014 - 09/2014	1
11310-33012	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	12/2014 - 07/2015	1
11310-33011	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 11/2014	1
11310-33012	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	12/2014 - 07/2015	1
11310-33013	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2015 - 11/2015	1
11310-0N030	1NDTV..NLP130..3D..(G,S) TYPE B:REFER 19-01	05/2015 - 11/2015	1
11310-33011	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 11/2014	1
11310-0N012	1NDTV..NLP130 TYPE A:REFER 19-01	09/2014 - 05/2015	1
11310-33013	1NDTV..NLP130..LHD..3D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2015 - 11/2015	1
11322B - COVER, TIMING BELT, NO.2
11322-33040	1NDTV..NLP130	07/2014 - 04/2015	1
11322-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 11/2015	1
11322-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 03/2017	1
11444E - PLUG, HOLE
11444-33020	1NDTV..NLP130	07/2014 - 05/2015	1
15350 - VALVE ASSY, OIL PRESSURE SWITCHING
15350-33012	1NDTV..NLP130..3D..(G,S)	07/2014 - 11/2015	1
15350-33012	1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)	07/2014 - 03/2017	1
15605C - VALVE SUB-ASSY, OIL CHECK
15605-30040	1NDTV..NLP130..3D..(G,S)	07/2014 - 11/2015	1
15605-30040	1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)	07/2014 - 03/2017	1
Common parts
90105-10425
90105-W0032
90105-W0227
90105-W0233
90105-W0234
90110-06040
90126-08052
91551-80616
91551-E0825
91551-E0840
91671-80614
94151-80841
96742-24011
Linked diagrams
1501
1601
7403
8404

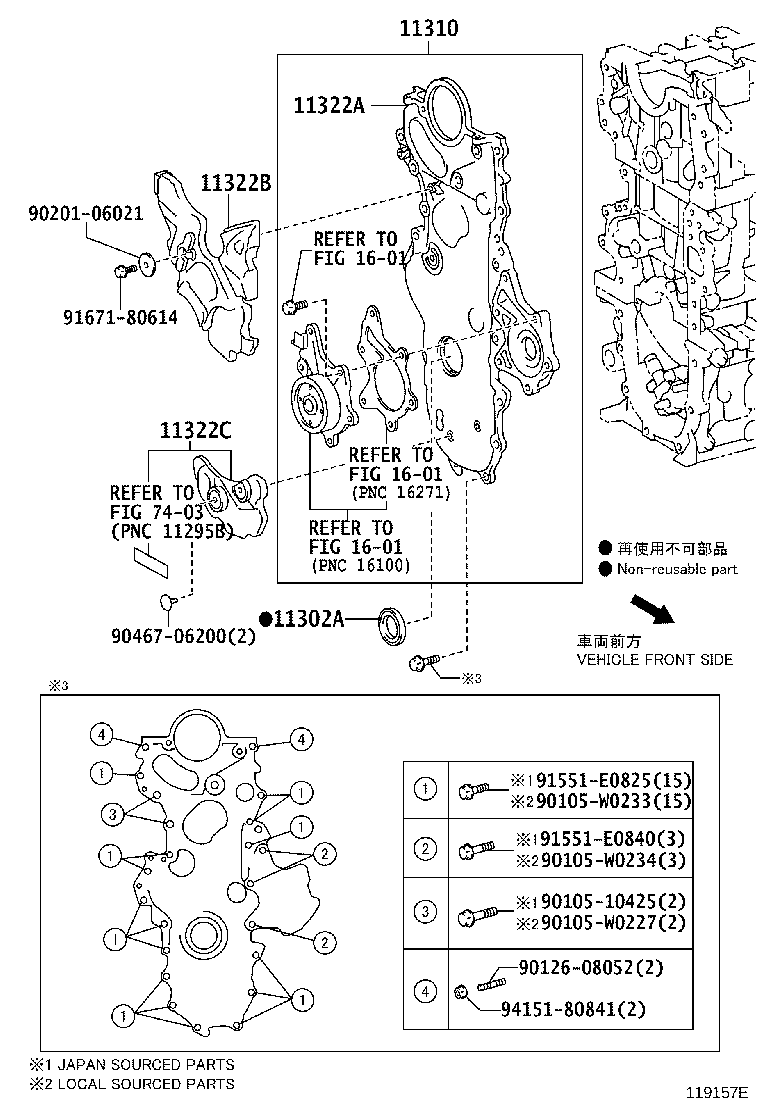

(1407- )1NDTV..LHD

Click highlighted areas on diagram

W/O(DPF)

Part #	Description	Period	Qty
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-40040	1NDTV..NLP130..3D..(G,S)	07/2014 - 11/2015	1
90311-40040	1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)	07/2014 - 03/2017	1
11310 - COVER ASSY, TIMING CHAIN
11310-0N011	1NDTV..NLP130	07/2014 - 09/2014	1
11310-33012	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	12/2014 - 07/2015	1
11310-33011	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 11/2014	1
11310-33012	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	12/2014 - 07/2015	1
11310-33013	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2015 - 11/2015	1
11310-0N030	1NDTV..NLP130..3D..(G,S) TYPE B:REFER 19-01	05/2015 - 11/2015	1
11310-33011	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 11/2014	1
11310-0N012	1NDTV..NLP130 TYPE A:REFER 19-01	09/2014 - 05/2015	1
11310-33013	1NDTV..NLP130..LHD..3D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2015 - 11/2015	1
11322A - COVER, TIMING BELT, NO.1
11321-33021	1NDTV..NLP130..LHD..3D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2015 - 11/2015	1
11321-33021	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2015 - 11/2015	1
11321-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 07/2015	1
11321-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 07/2015	1
11322B - COVER, TIMING BELT, NO.2
11322-33040	1NDTV..NLP130	07/2014 - 04/2015	1
11322-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 11/2015	1
11322-33020	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 03/2017	1
11322C - COVER, TIMING BELT, NO.3
11323-33010	1NDTV..NLP130..LHD..3D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 11/2015	1
11323-33010	1NDTV..NLP130..LHD..(N,R);1NDTV..NLP130..LHD..5D..(G,S) EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)	07/2014 - 03/2017	1
11323-33010	1NDTV..NLP130..LHD EXHAUST EMISSION CONTROL-GENERAL DESTINATION	07/2014 - 11/2015	1
Common parts
90105-10425
90105-W0227
90105-W0233
90105-W0234
90126-08052
90201-06021
90467-06200
91551-E0825
91551-E0840
91671-80614
94151-80841
Linked diagrams
1601
7403

NLP130L-CGFSXW (2014)

(1407- )1NDTV

(1407- )1NDTV..LHD
