NHP130R-CHXNBW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NHP130

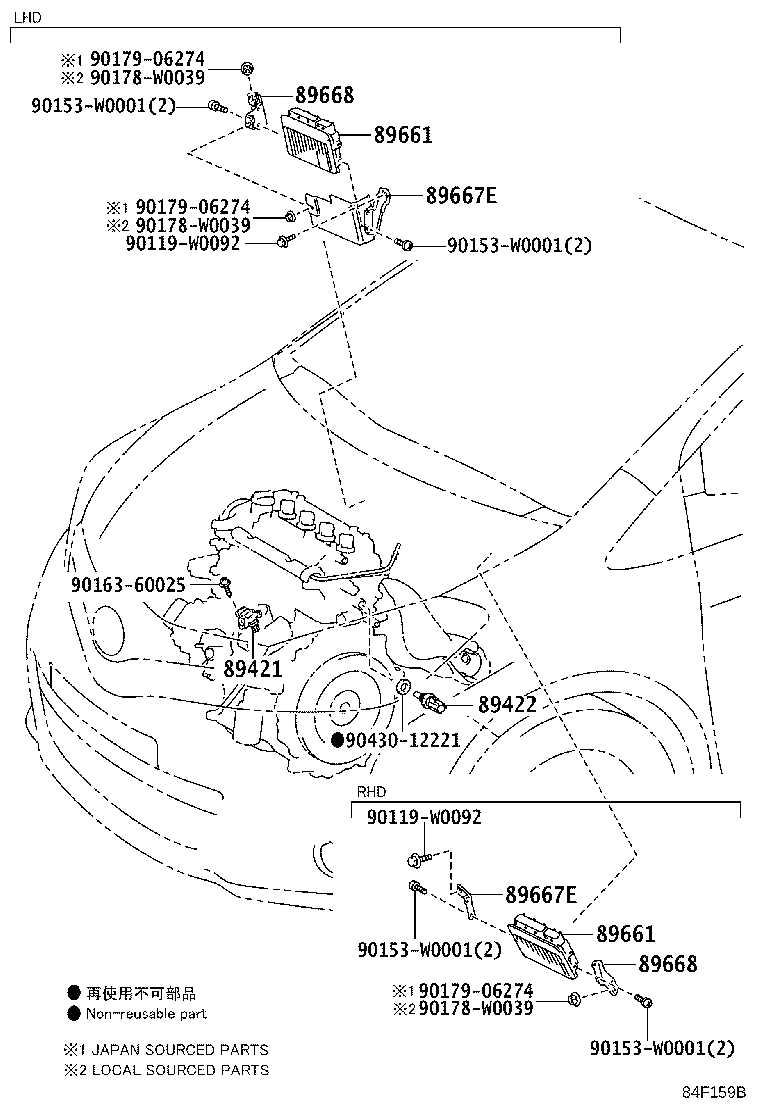

Click highlighted areas on diagram

diagram 89421 89422 89661 89661 89667E 89667E 89668 89668 90119W0092 90119W0092 90153W0001 90153W0001 90153W0001 90153W0001 9016360025 90178W0039 90178W0039 90178W0039 9017906274 9017906274 9017906274 9043012221
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

NHP130

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DT20

NHP130

 1
89661-0DT30

NHP130

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
89661-0DT30

NHP130..RHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0DT20

NHP130

 1
89661-0DT30

NHP130

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)

 1
89661-0DT30

NHP130..RHD

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0D120

NHP130..RHD;NSP130..RHD..(N,R);NSP130..RHD..5D..(G,S)

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0D120

NHP130..RHD;NSP130..RHD..(N,R);NSP130..RHD..5D..(G,S)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D120

NHP130..RHD;NSP130..RHD..(N,R);NSP130..RHD..5D..(G,S)

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0D120

NHP130..RHD;NSP130..RHD..(N,R);NSP130..RHD..5D..(G,S)

 1
Common parts
90119-W0092
90153-W0001
90163-60025
90178-W0039
90179-06274
90430-12221
