NHP130R-CHXNBW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )1NZFXE

Click highlighted areas on diagram

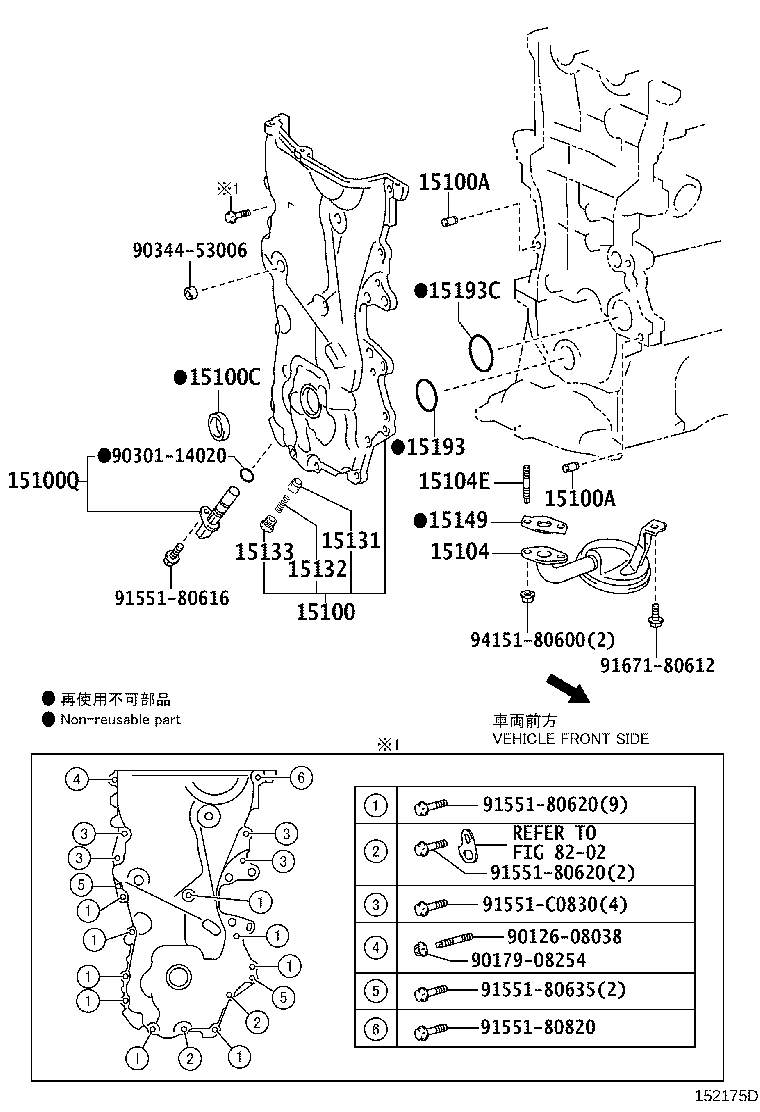

diagram 15100 15100A 15100A 15100C 15100Q 15104 15104E 15131 15132 15133 15149 15193 15193C 8202 9012608038 9017908254 9030114020 9034453006 9155180616 9155180620 9155180620 9155180635 9155180820 91551C0830 9167180612 9415180600
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-21072

1NZFXE..NHP130

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFXE..NHP130

 2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFXE..NHP130

 2
15100C - SEAL(FOR OIL PUMP)
90311-25033

1NZFXE..NHP130

 1
15100Q - SENSOR, CRANK POSITION
90919-05087

1NZFXE..NHP130

 1
15104 - STRAINER SUB-ASSY, OIL
15104-21022

1NZFXE..NHP130

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021

1NZFXE..NHP130

 2
15131 - VALVE, OIL PUMP RELIEF
15131-21020

1NZFXE..NHP130

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21050

1NZFXE..NHP130

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21030

1NZFXE..NHP130

 1
15149 - GASKET, OIL STRAINER FLANGE
16258-21030

1NZFXE..NHP130

 1
15193 - GASKET, OIL PUMP
12151-21010

1NZFXE..NHP130

 1
15193C - GASKET, OIL PUMP NO.2
11497-21010

1NZFXE..NHP130

 1
Common parts
90126-08038
90179-08254
90301-14020
90344-53006
91551-80616
91551-80620
91551-80635
91551-80820
91551-C0830
91671-80612
94151-80600
Linked diagrams
8202
