NHP130R-CHXGBW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )NHP130 ; (1505- )NLP130

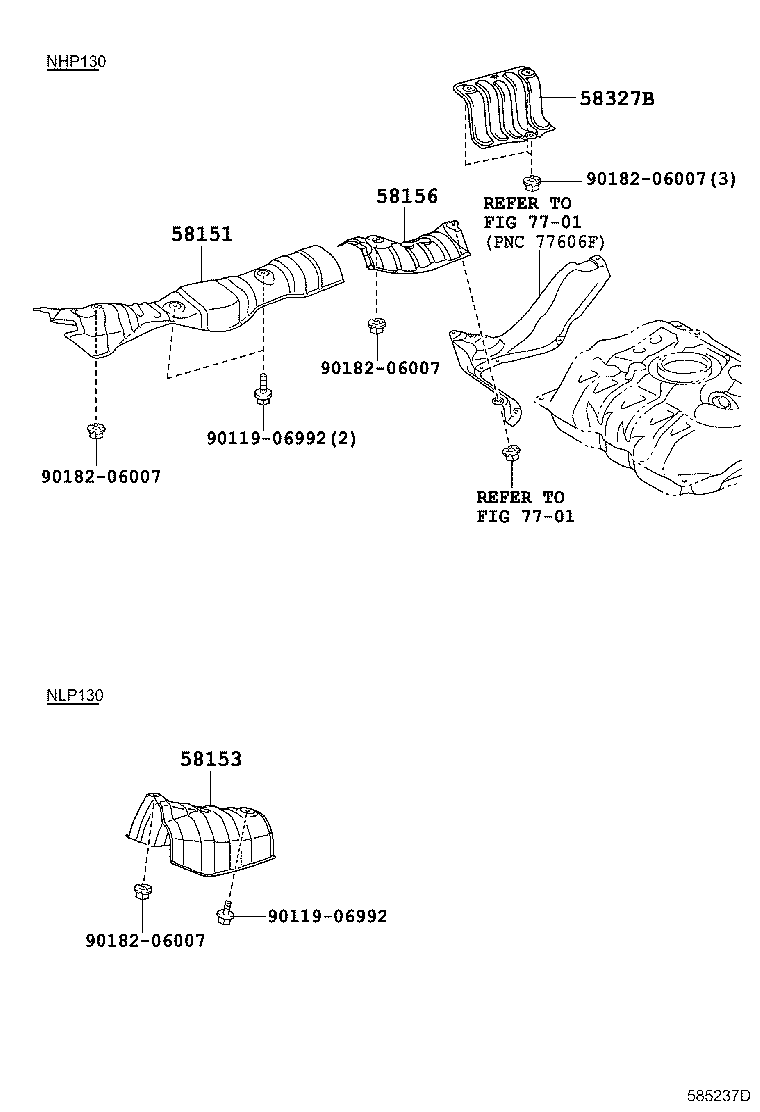

Click highlighted areas on diagram

diagram 58151 58153 58156 58327B 7701 7701 9011906992 9011906992 9018206007 9018206007 9018206007 9018206007
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0D100

NHP130

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-0D010

NHP130;KSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0D050

NHP130;KSP130..N,R;KSP130..5D..G

 1
Common parts
90119-06992
90182-06007
Linked diagrams
7701
