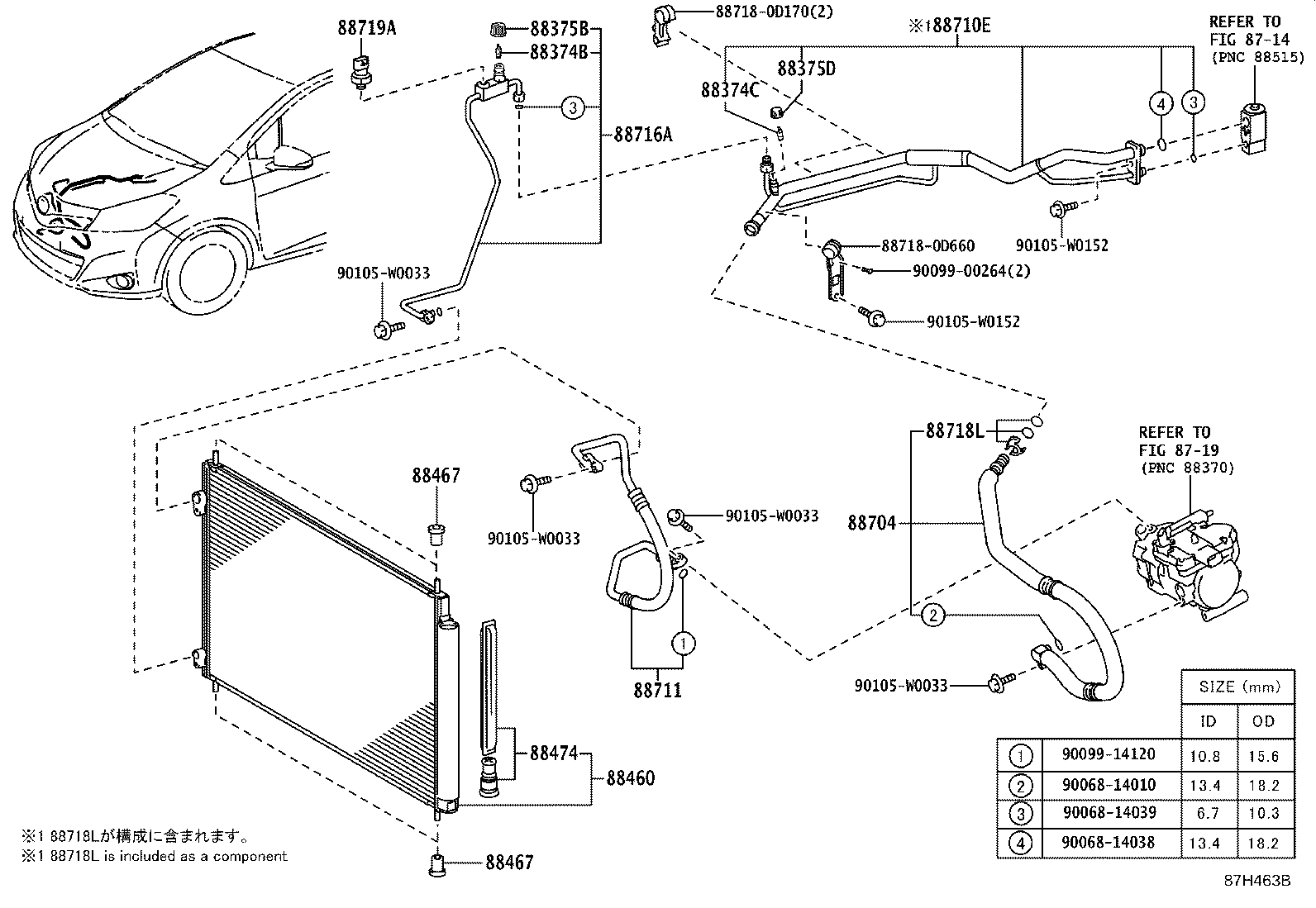

Toyota Yaris/hybrid(frp) NHP130 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-33010	NHP130	07/2014 - 05/2015	1
88374-30020	NLP130..RHD;KSP130,NHP130	03/2017 - 06/2020	1
88374-33070	NHP130..S;NHP130..LHD..(G,N);KSP130,NSP131..N,R,S;KSP130,NSP131..LHD..G REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)	03/2017 - 06/2020	1
88374C - VALVE, SERVICE, NO.2
88374-30010	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88374-30010	NHP130 REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)	03/2017 - 06/2018	1
88374-30010	NHP130	06/2018 - 06/2020	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30280	NHP130..S;NHP130..LHD..(G,N);KSP130,NSP131..N,R,S;KSP130,NSP131..LHD..G REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)	03/2017 - 06/2020	1
88375-30320	NLP130..RHD;KSP130,NHP130,NSP131	03/2017 - 06/2020	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	KSP130,NHP130,NLP130,NSP130	07/2014 - 07/2016	1
88375-30290	NHP130..S;NHP130..LHD..(G,N);KSP130,NSP131..N,R,S;KSP130,NSP131..LHD..G REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)	03/2017 - 06/2020	1
88375-30310	NHP130	06/2018 - 06/2020	1
88460 - CONDENSER ASSY, COOLER
88460-0D220	NHP130	07/2014 - 05/2015	1
88460-0D420	NHP130	03/2017 - 06/2020	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NHP130	07/2014 - 03/2017	4
16716-28010	NHP130	03/2017 - 06/2020	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NHP130	07/2014 - 03/2017	4
16716-28010	NHP130	03/2017 - 06/2020	4
88474 - DRYER, COOLER
88474-12020	NHP130	03/2017 - 06/2020	1
88474-47020	NHP130	07/2014 - 05/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0D070	NHP130	07/2014 - 03/2017	1
88704-0D070	NHP130	03/2017 - 06/2020	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0D130	NHP130	03/2017 - 06/2018	1
88710-0D500	NHP130	06/2018 - 06/2020	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D370	NHP130	07/2014 - 05/2015	1
88711-0D550	NHP130	03/2017 - 06/2020	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88706-0DC90	NHP130	03/2017 - 06/2020	1
88718L - CLAMP, PIPING
88718-52280	NHP130	07/2014 - 03/2017	1
88718-52280	KSP130,NHP130,NSP131	03/2017 - 06/2020	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	KSP130,NHP130,NLP130,NSP130	07/2014 - 03/2017	1
88719-33020	KSP130,NHP130,NLP130,NSP131	03/2017 - 06/2020	1
Common parts
88718-0D170
88718-0D660
90068-14010
90068-14038
90068-14039
90099-00264
90099-14120
90105-W0033
90105-W0152
Linked diagrams
8714
8719

NHP130L-CHXNBW (2017)

(1806- )NHP130
