NHP130L-CHXNBW (2014)
Toyota Yaris/Hybrid(Frp)
Production
Jul 2014
-
Mar 2017
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1407- )NHP130

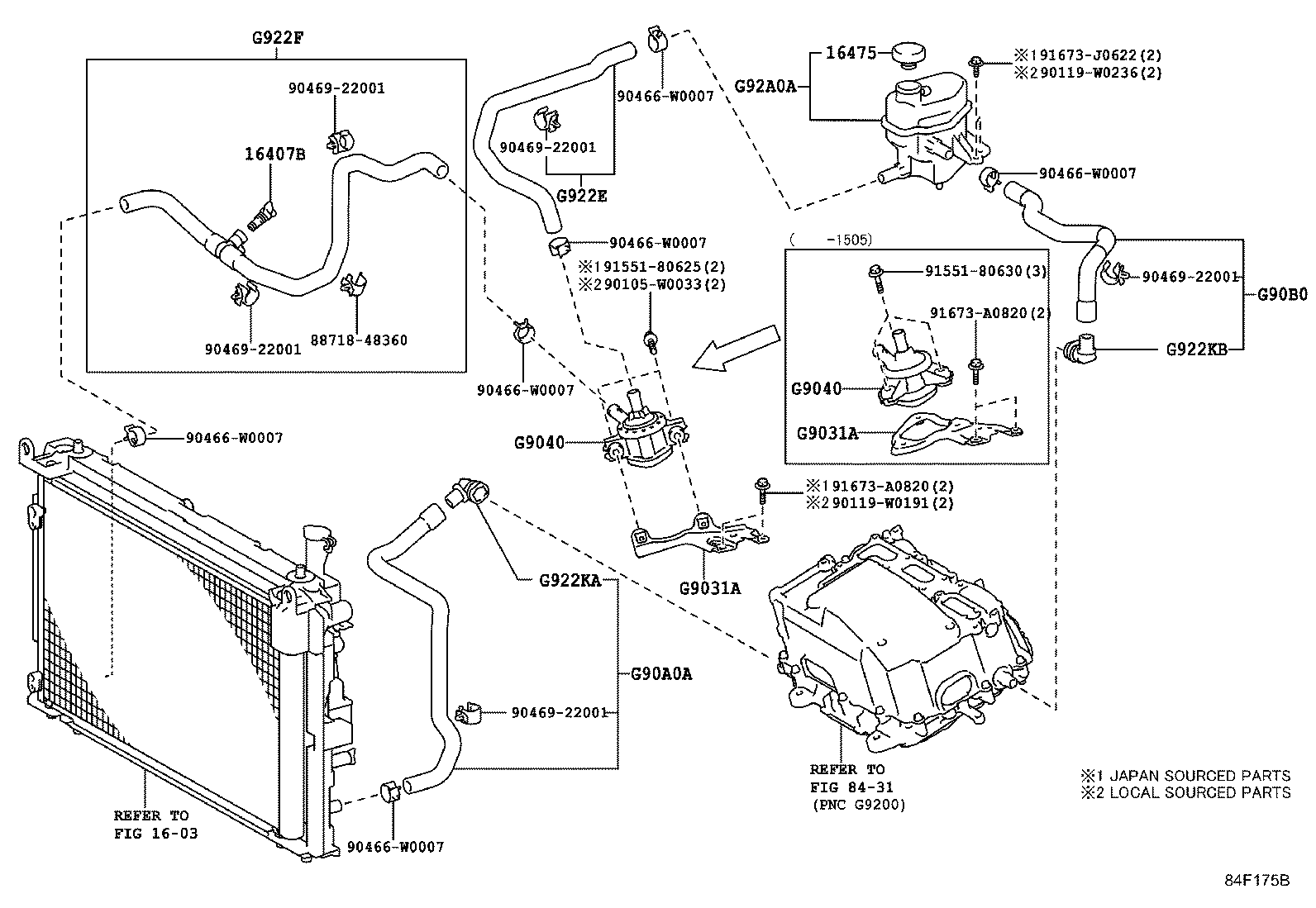

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16407B - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
1NZFXE..NHP130 |
1 | ||
| 16475 - CAP, RESERVE TANK | ||||
| 16475-51010 |
1NZFXE..NHP130 |
1 | ||
| 16475-28140 |
1NZFXE..NHP130 |
1 | ||
| 16475-51011 |
1NZFXE..NHP130 |
1 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9141-52020 |
NHP130 |
1 | ||
| G9141-52011 |
NHP130 |
1 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9141-52020 |
NHP130 |
1 | ||
| G9141-52011 |
NHP130 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-52010 |
NHP130 |
1 | ||
| G9040-52020 |
NHP130 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-52010 |
NHP130 |
1 | ||
| G9040-52020 |
NHP130 |
1 | ||
| G90A0A - HOSE ASSY, INVERTER COOLING, NO.1 | ||||
| G90A0-52010 |
NHP130 |
1 | ||
| G90B0 - HOSE ASSY, INVERTER COOLING, NO.2 | ||||
| G90B0-52010 |
NHP130 |
1 | ||
| G922E - HOSE, HYBRID WATER PUMP INLET | ||||
| G922E-52010 |
NHP130 |
1 | ||
| G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1 | ||||
| G922F-52020 |
NHP130 |
1 | ||
| G922KA - CONNECTOR, HYBRID WATER HOSE, NO.1 | ||||
| G922K-33030 |
NHP130 |
1 | ||
| G922KB - CONNECTOR, HYBRID WATER HOSE, NO.2 | ||||
| G922K-52010 |
NHP130 |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G92A0-52011 |
NHP130 |
1 | ||
| G92A0-52010 |
NHP130 |
1 | ||
| Common parts | ||||
| 88718-48360 | ||||
| 90105-W0033 | ||||
| 90119-W0191 | ||||
| 90119-W0236 | ||||
| 90466-W0007 | ||||
| 90469-22001 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91673-A0820 | ||||
| 91673-J0622 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8431 | ||||
