NHP130L-CHXGBW (2017)
Toyota Yaris/Hybrid(Frp)

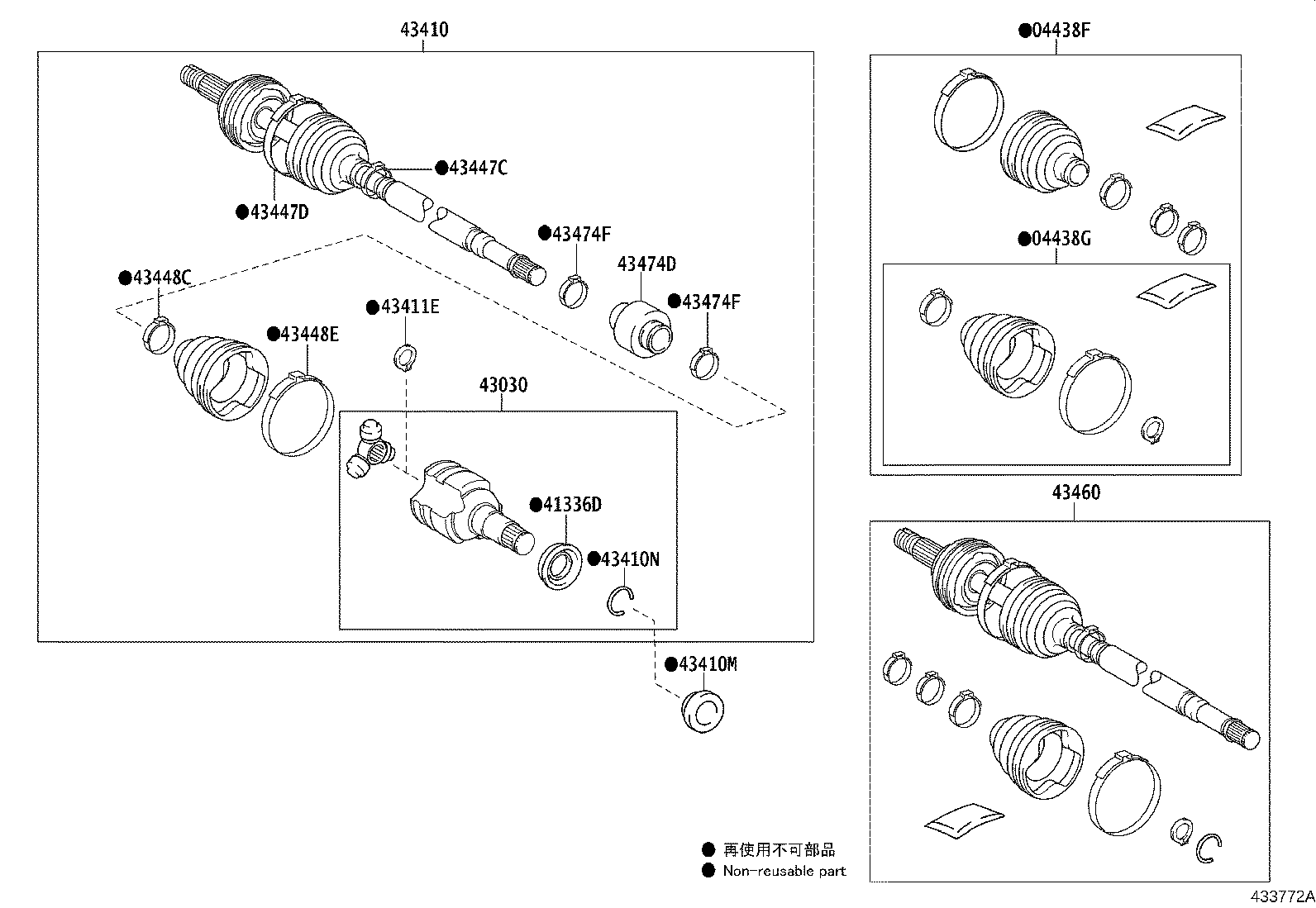

ILLUST NO. 1 OF 2(1703- )NHP130
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0D480 |
NHP130 |
1 | ||
| 04427-0D300 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 04427-0D483 |
NHP130 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0D220 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 04437-0D310 |
NHP130 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-05140 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 41336-05140 |
NHP130,NLP130 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-0D170 |
NHP130 |
1 | ||
| 43403-0D170 |
NHP130 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0D401 |
NHP130 |
1 | ||
| 43410-0D660 |
NHP130 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35065 |
NHP130,NLP130 |
1 | ||
| 90311-35065 |
NHP130,NLP130 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52055 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 90080-52055 |
NHP130,NLP130 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90080-52093 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 90080-52093 |
NHP130,NLP130 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0D260 |
NHP130;NLP130..N,R;NSP130..CVT..N;NLP130..5D..(G,S);NSP130..5D..CVT..(G,S) |
1 | ||
| 42345-0D440 |
NHP130,NSP131..CVT |
1 | ||
| 42345-0D630 |
NHP130,NSP131..CVT |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0D250 |
NHP130;NLP130..N,R;NSP130..CVT..N;NLP130..5D..(G,S);NSP130..5D..CVT..(G,S) |
1 | ||
| 42345-0D430 |
KSP130,NHP130,NSP131 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02240 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 42345-02240 |
NHP130,NLP130 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0D850 |
NHP130,NLP130 |
1 | ||
| 42345-0D850 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09V60 |
NHP130 |
1 | ||
| 43460-09Z40 |
NHP130 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0D220 |
NHP130 |
1 | ||
| 43474-0D370 |
NHP130 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0D770 |
NHP130 |
2 | ||
| 42345-0D770 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-0D770 |
NHP130 |
2 | ||
| 42345-0D770 |
NHP130;NLP130..N,R;NLP130..5D..(G,S) |
1 | ||
