NHP130L-CHXGBW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

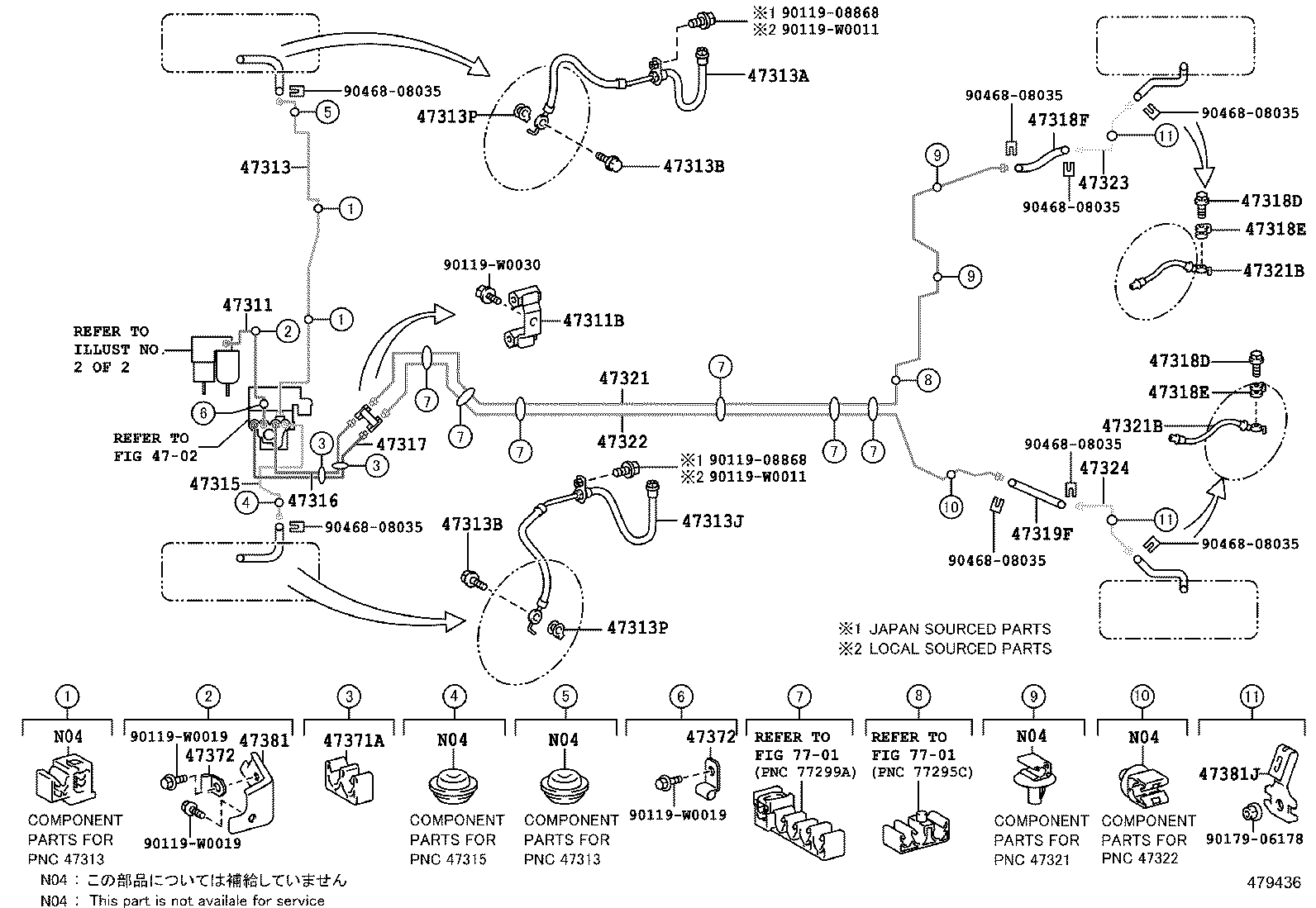

ILLUST NO. 1 OF 2(1407- )NHP130..LHD

Click highlighted areas on diagram

BRAKE TUBE

diagram 4702 47311 47311B 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47372 47381 47381J 7701 7701 9011908868 9011908868 90119W0011 90119W0011 90119W0019 90119W0019 90119W0019 90119W0030 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D311

NHP130..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D171

NHP130..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2050

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
90947-W2034

KSP130,NHP130,NLP130,NSP130

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2051

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
90947-W2035

KSP130,NHP130,NLP130,NSP130

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D231

NHP130..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D181

NHP130..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D181

NHP130..LHD

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NHP130

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

NHP130

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NHP130

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

NHP130

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2036

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2037

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D311

NHP130

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2038

NHP130

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-W2038

NHP130

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-0D311

NHP130

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D201

NHP130

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D201

NHP130

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00904

NHP130..LHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90461-10851

NHP130..LHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90461-10851

NHP130..LHD

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52030

NHP130

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
47381-52020

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 2
Common parts
90119-08868
90119-W0011
90119-W0019
90119-W0030
90179-06178
90468-08035
Linked diagrams
4702
7701

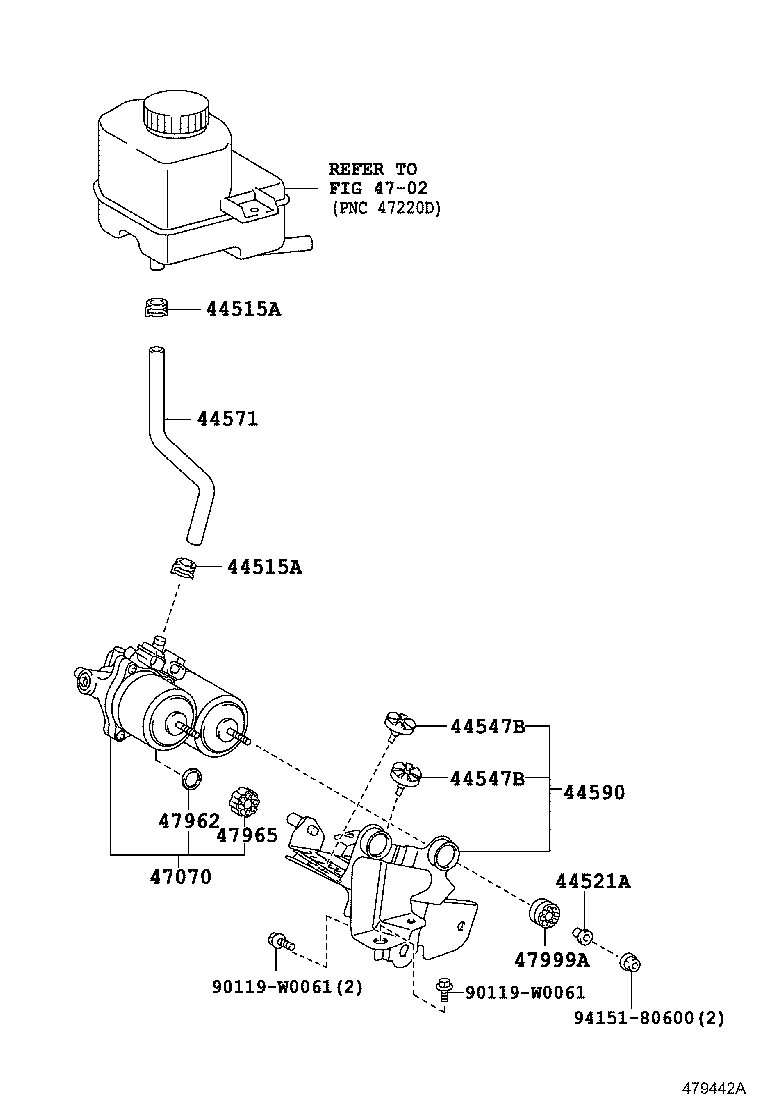

ILLUST NO. 2 OF 2(1407- )NHP130..LHD

Click highlighted areas on diagram

BRAKE BOOSTER PUMP

diagram 44515A 44515A 44521A 44547B 44547B 44571 44590 4702 47070 47962 47965 47999A 90119W0061 90119W0061 9415180600
Part # Description Qty Price
44515A - CLIP(FOR BRAKE ACTUATOR HOSE)
96137-51501

NHP130..LHD

 2
44515A - CLIP(FOR BRAKE ACTUATOR HOSE)
96137-51501

NHP130..LHD

 2
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-47010

NHP130

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

NHP130

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

NHP130

 2
44571 - HOSE, BRAKE ACTUATOR
44571-52030

NHP130..LHD

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D150

NHP130

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-12020

NHP130

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

NHP130

 1
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

NHP130

 1
47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-24010

NHP130

 2
Common parts
90119-W0061
94151-80600
Linked diagrams
4702
