KSP130R-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1805)1KRFE

Click highlighted areas on diagram

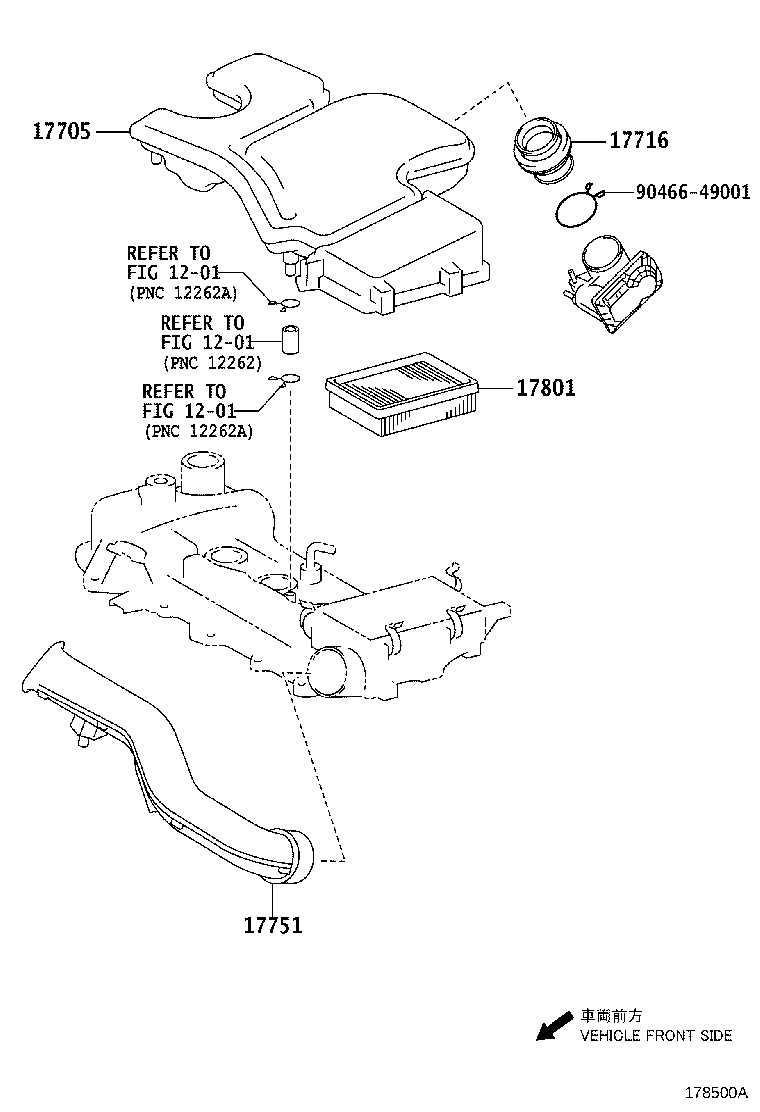

diagram 1201 1201 1201 17705 17716 17751 17801 9046649001
Part # Description Qty Price
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0Q030

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
17716 - SUPPORT,AIR CLEANER CAP
17716-40040

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0Q010

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0M030

1KRFE..KSP130

 1
17801-0M040

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
Common parts
90466-49001
Linked diagrams
1201
