KSP130R-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)

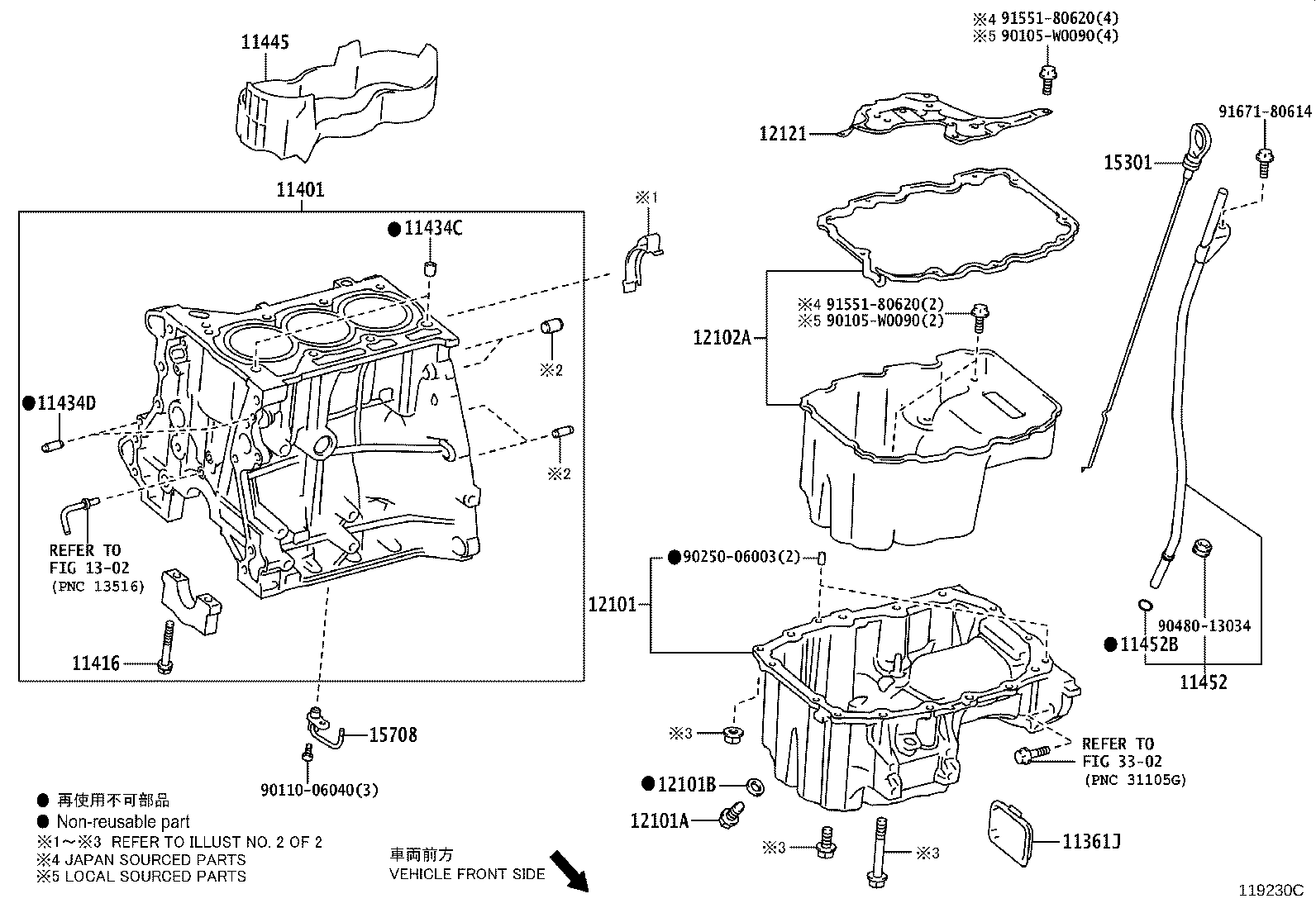

ILLUST NO. 1 OF 2(1407-1805)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-23020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10531 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
8 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-12002 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G L=12,OD=12 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G L=14,OD=6 |
4 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-40020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43037 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0Q021 |
1KRFE..KSP130 |
1 | ||
| 12102-0Q020 |
1KRFE..KSP130 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-40080 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G MADE IN JAPAN |
1 | ||
| 15301-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G MADE IN EUROPE |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
3 | ||
| Common parts | ||||
| 90105-W0090 | ||||
| 90110-06040 | ||||
| 90250-06003 | ||||
| 90480-13034 | ||||
| 91551-80620 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 3302 | ||||

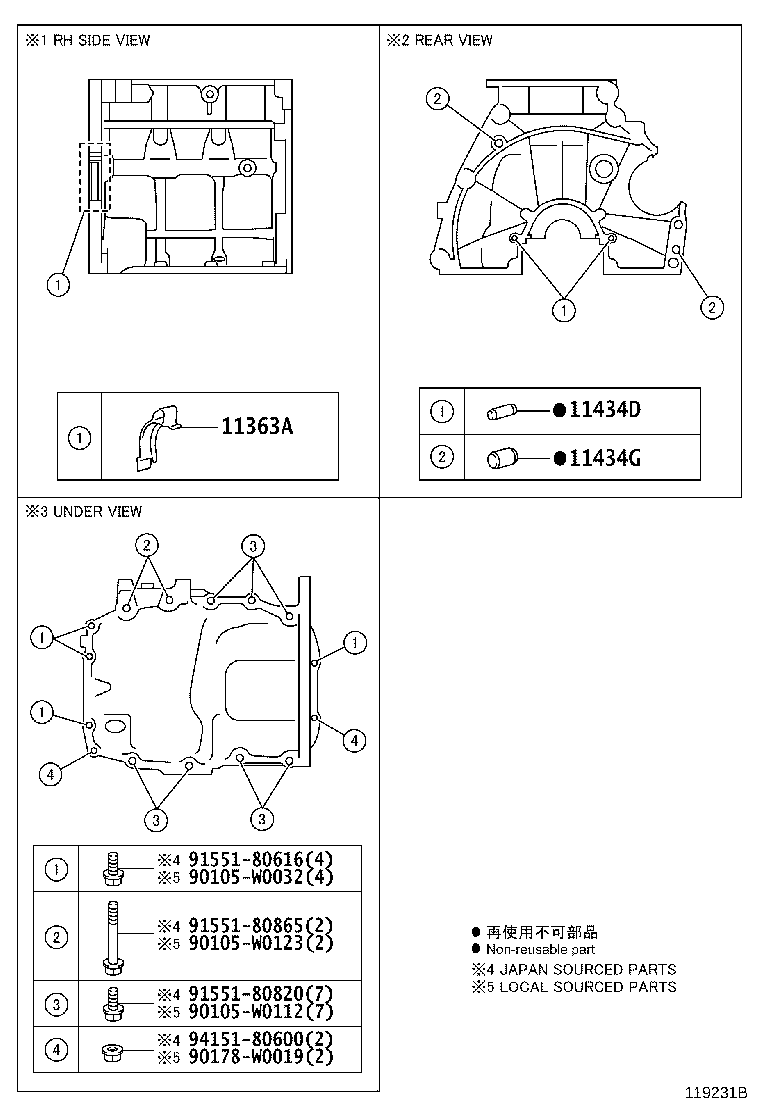

ILLUST NO. 2 OF 2(1407-1907)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (L) |
1 | ||
| 11363-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (J) |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G L=14,OD=6 |
4 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10232 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
2 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0112 | ||||
| 90105-W0123 | ||||
| 90178-W0019 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91551-80865 | ||||
| 94151-80600 | ||||
