KSP130R-CHMGKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

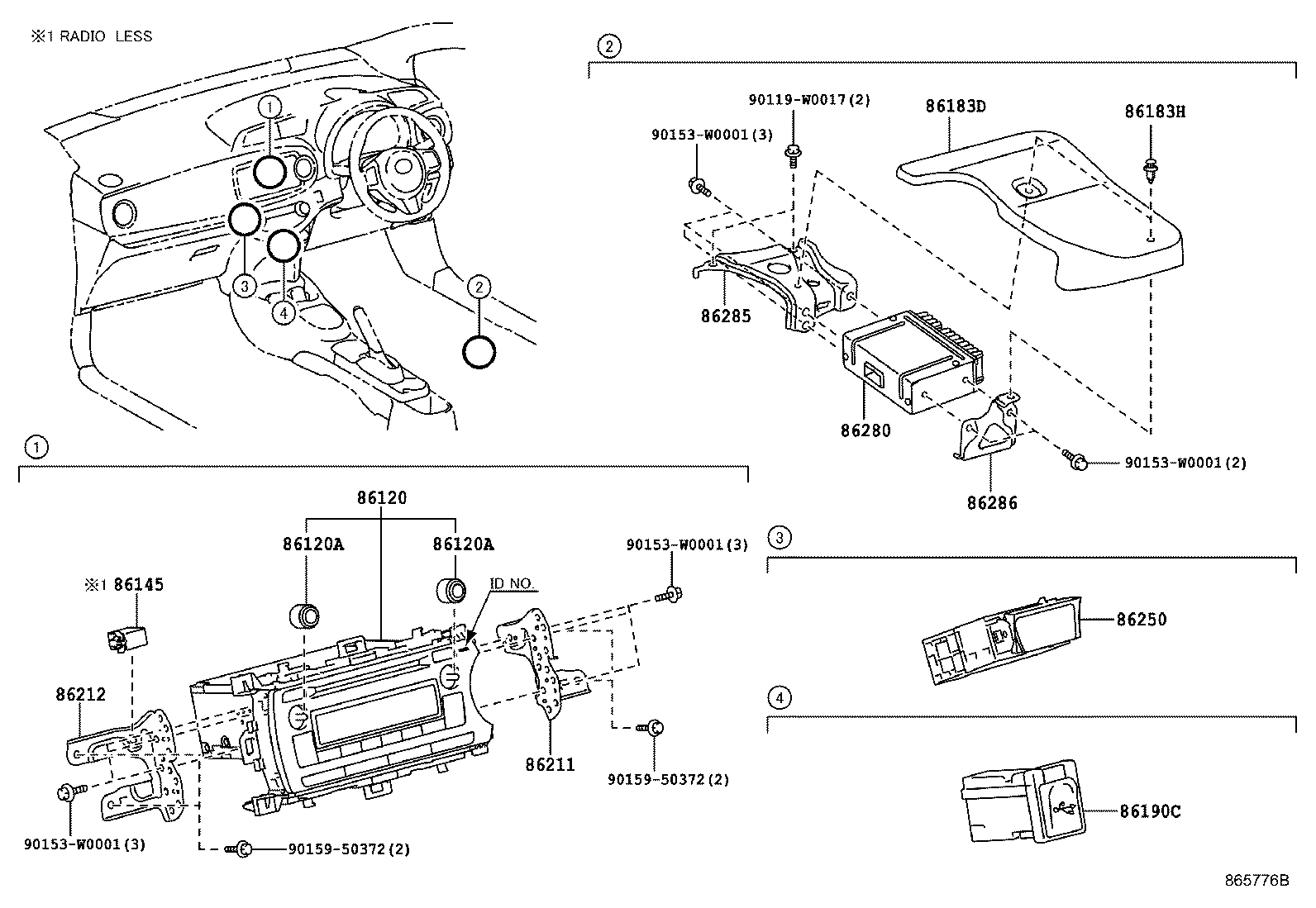

ILLUST NO. 1 OF 2(1407-1703)RHD

Click highlighted areas on diagram

RECEIVER & AMPLIFIER

diagram 86120 86120A 86120A 86145 86183D 86183H 86190C 86211 86212 86250 86280 86285 86286 90119W0017 90153W0001 90153W0001 90153W0001 90153W0001 9015950372 9015950372
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D650

KSP130,NLP130,NSP130..RHD..R

PANASONIC,ID=53865

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24149

KSP130,NLP130,NSP130..R

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24149

KSP130,NLP130,NSP130..R

 2
86145 - CONNECTOR, ANTENNA MALE
86145-52010

KSP130,NHP130,NLP130,NSP130..N,R

AUDIO-RADIO LESS & 6SPEAKER

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0D060

NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
86211 - BRACKET, RADIO, NO.1
86211-0D130

KSP130,NLP130,NSP130..R

 1
86211-0D210

NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)

 1
86211-0D210

KSP130,NLP130,NSP130..R

AUDIO-*DA & *BT & 6SPEAKER

 1
86212 - BRACKET, RADIO, NO.2
86212-0D130

KSP130,NLP130,NSP130..R

 1
86212-0D200

KSP130,NLP130,NSP130..R

AUDIO-*DA & *BT & 6SPEAKER

 1
86212-0D200

NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-0D040

NHP130..RHD;KSP130,NLP130,NSP130..RHD..N;KSP130,NLP130,NSP130..RHD..5D..(G,S)

 1
86250-0D040

KSP130,NLP130,NSP130..RHD..R

AUDIO-*DA & *BT & 6SPEAKER

 1
Common parts
90119-W0017
90153-W0001
90159-50372

ILLUST NO. 2 OF 2(1407- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 90119W0017 90119W0017
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
86011A - CONDENSER, RADIO SETTING
90980-04189

KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)

 1
Common parts
90119-W0017
