KSP130L-CHMRKW (2017)
Toyota Yaris/Hybrid(Frp)
Production
Mar 2017
-
Jun 2020
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1407-1805)1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 17705-0Q030 |
1KRFE..KSP130 |
1 | ||
| 17716 - SUPPORT,AIR CLEANER CAP | ||||
| 17716-0Q030 |
1KRFE..KSP130 |
1 | ||
| 17716-40040 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 17716-40040 |
1KRFE..KSP130 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Q010 |
1KRFE..KSP130 |
1 | ||
| 17751-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0M030 |
1KRFE..KSP130 |
1 | ||
| 17801-0M040 |
1KRFE..KSP130 (L) |
1 | ||
| 17801-21060 |
1KRFE..KSP130 (J) |
1 | ||
| 17801-0M040 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90466-49001 | ||||
| Linked diagrams | ||||
| 1201 | ||||

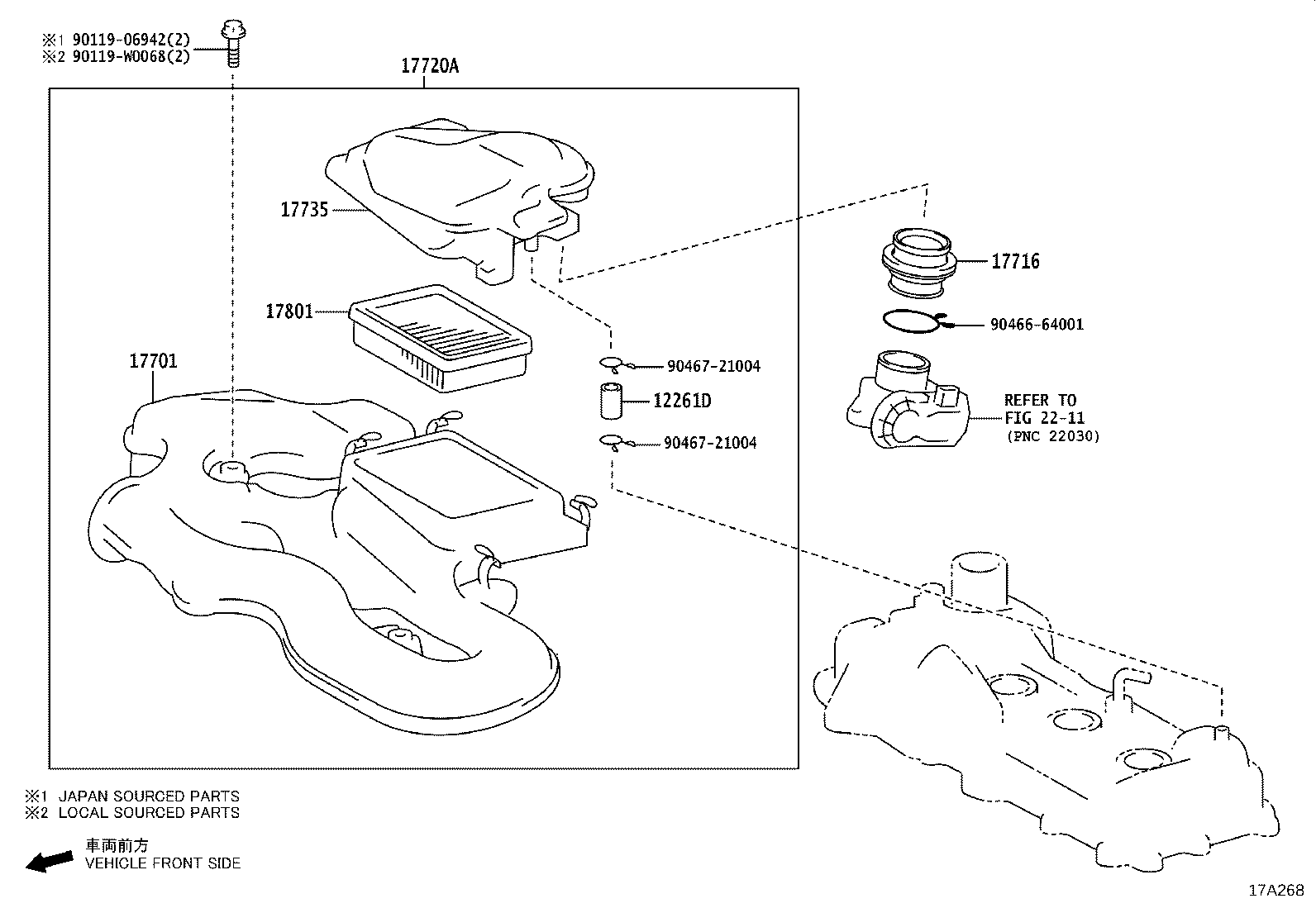

(1805- )1KRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261D - HOSE, VENTILATION | ||||
| 12262-40050 |
1KRFE..KSP130 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17711-0Q021 |
1KRFE..KSP130 |
1 | ||
| 17711-0Q020 |
1KRFE..KSP130 |
1 | ||
| 17716 - SUPPORT,AIR CLEANER CAP | ||||
| 17716-0Q030 |
1KRFE..KSP130 |
1 | ||
| 17716-40040 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 17716-40040 |
1KRFE..KSP130 |
1 | ||
| 17720A - CLEANER ASSY, AIR W/DUCT | ||||
| 17720-0Q021 |
1KRFE..KSP130 |
1 | ||
| 17720-0Q020 |
1KRFE..KSP130 |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0Q010 |
1KRFE..KSP130 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0M030 |
1KRFE..KSP130 |
1 | ||
| 17801-0M040 |
1KRFE..KSP130 (L) |
1 | ||
| 17801-21060 |
1KRFE..KSP130 (J) |
1 | ||
| 17801-0M040 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90119-W0068 | ||||
| 90466-64001 | ||||
| 90467-21004 | ||||
| Linked diagrams | ||||
| 2211 | ||||
