KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)
(1407- )KSP130..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

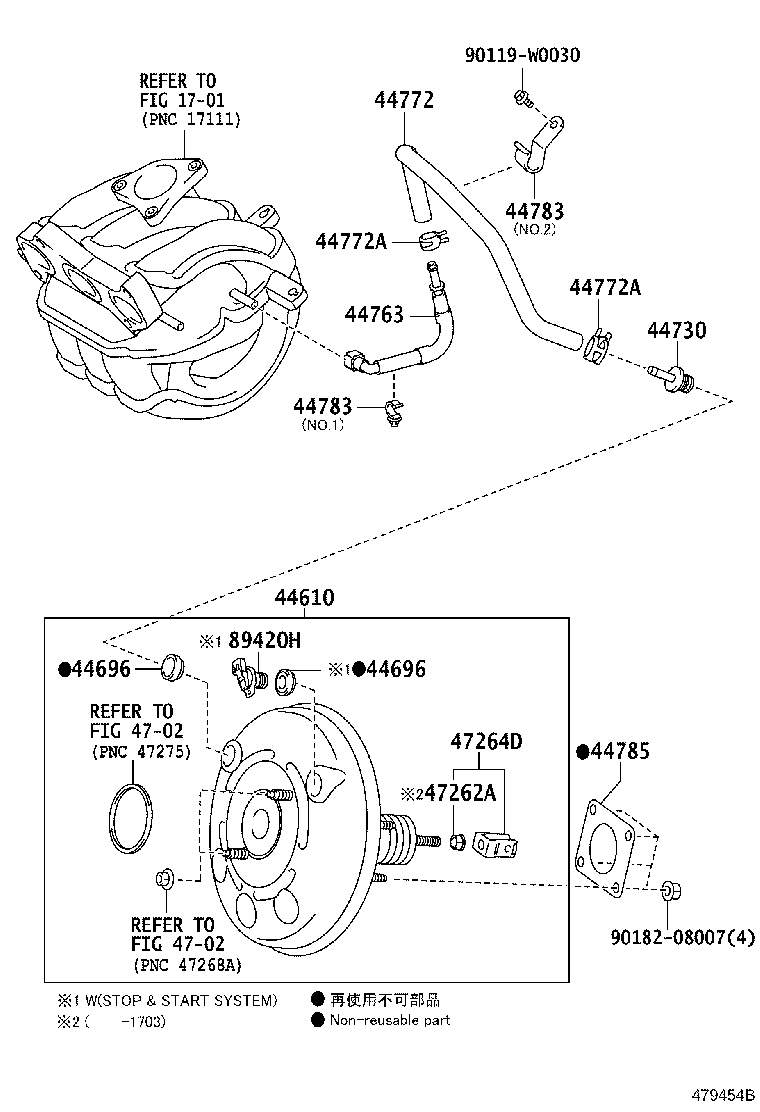

| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-09C20 |
KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) |
1 | ||
| 44610-09C10 |
NSP130..LHD..5D..6F..S;KSP130,NSP130..LHD..MTM..(N,R) VSC-WITHOUT |
1 | ||
| 44610-09C30 |
KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 44692-0D020 |
KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
2 | ||
| 44692-0D020 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 44692-0D020 |
KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
2 | ||
| 44692-0D020 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-0D010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-0D220 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52270 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-W0008 |
KSP130..N,R;KSP130..5D..G |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90466-W0008 |
KSP130..N,R;KSP130..5D..G |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52070 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G NO.1 |
1 | ||
| 44783-70010 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G NO.2 |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52070 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G NO.1 |
1 | ||
| 44783-70010 |
KSP130..LHD..(N,R);KSP130..LHD..5D..G NO.2 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 47262-05010 |
KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-09010 |
KSP130,NLP130,NSP130..LHD..(N,R);KSP130,NLP130,NSP130..LHD..5D..(G,S) |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-0D010 |
KSP130..LHD..3D;KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90182-08007 | ||||
| Linked diagrams | ||||
| 4702 | ||||
