KSP130L-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )KSP130

Click highlighted areas on diagram

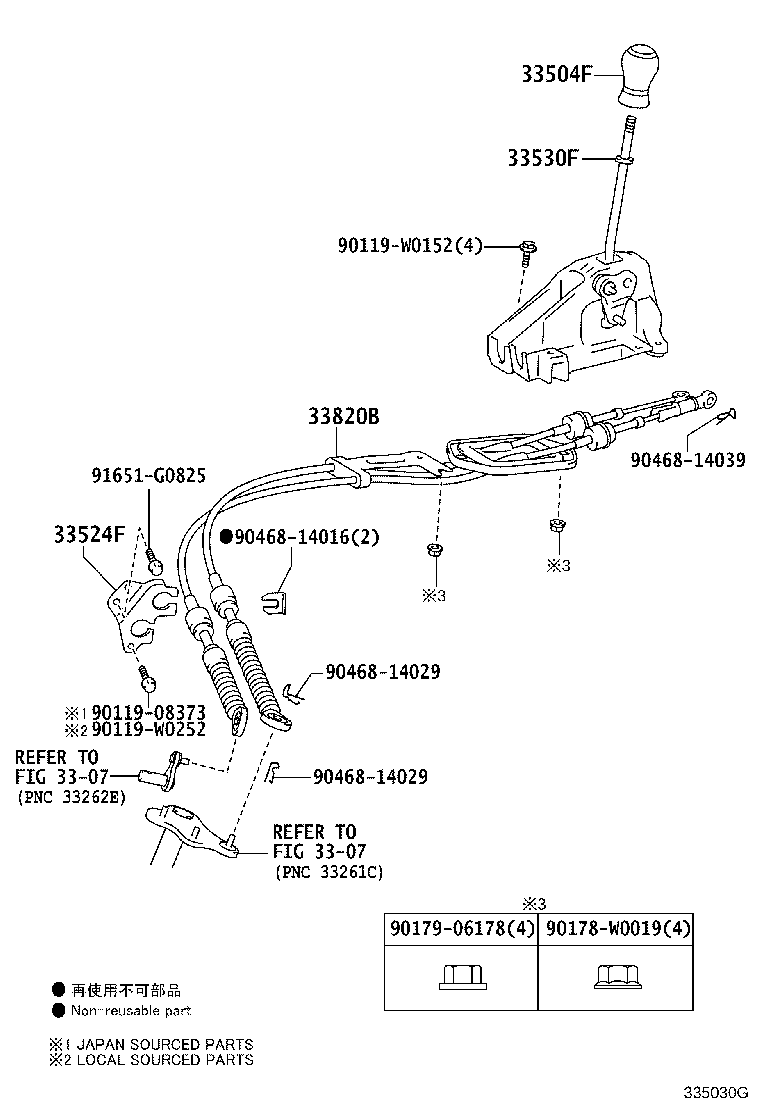

diagram 3307 3307 33504F 33524F 33530F 33820B 9011908373 90119W0152 90119W0252 90178W0019 9017906178 9046814016 9046814029 9046814029 9046814039 91651G0825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D250B2

KSP130..LHD..R

SHIFT LEVER & KNOB-LEATHER,SILVER/EU BLACK,TRIM0#

 1
33504-0D250

KSP130..LHD..N

SHIFT LEVER & KNOB-PVC

 1
33504-12380C0

KSP130..R

SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM0#

 1
33504-0D250B2

KSP130..N

SILVER/EU BLACK,TRIM1#,2#

 1
33504-12380C0

KSP130..R

BLACK,TRIM0#

 1
33504-12380C0

KSP130..LHD..N

SHIFT LEVER & KNOB-PVC,BLACK,TRIM1#,2#

 1
33504-0D250B2

KSP130..N

SILVER/EU BLACK,TRIM1#,2#

 1
33504-0D250B2

KSP130..LHD..R

SHIFT LEVER & KNOB-LEATHER,SILVER/EU BLACK,TRIM0#

 1
33504-0D250B2

KSP130..LHD..N

SHIFT LEVER & KNOB-PVC,SILVER/EU BLACK,TRIM1#,2#

 1
33504-0D290C1

KSP130..LHD..5D..N

SHIFT LEVER & KNOB-LEATHER,EU PIANO BLACK & EU BLACK,TRIM2#

 1
33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT
33524-52030

KSP130

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0D040

KSP130..N,R;KSP130..5D..G

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D090

KSP130..N,R;KSP130..5D..G

 1
Common parts
90119-08373
90119-W0152
90119-W0252
90178-W0019
90179-06178
90468-14016
90468-14029
90468-14039
91651-G0825
Linked diagrams
3307
