KSP130L-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )KSP130

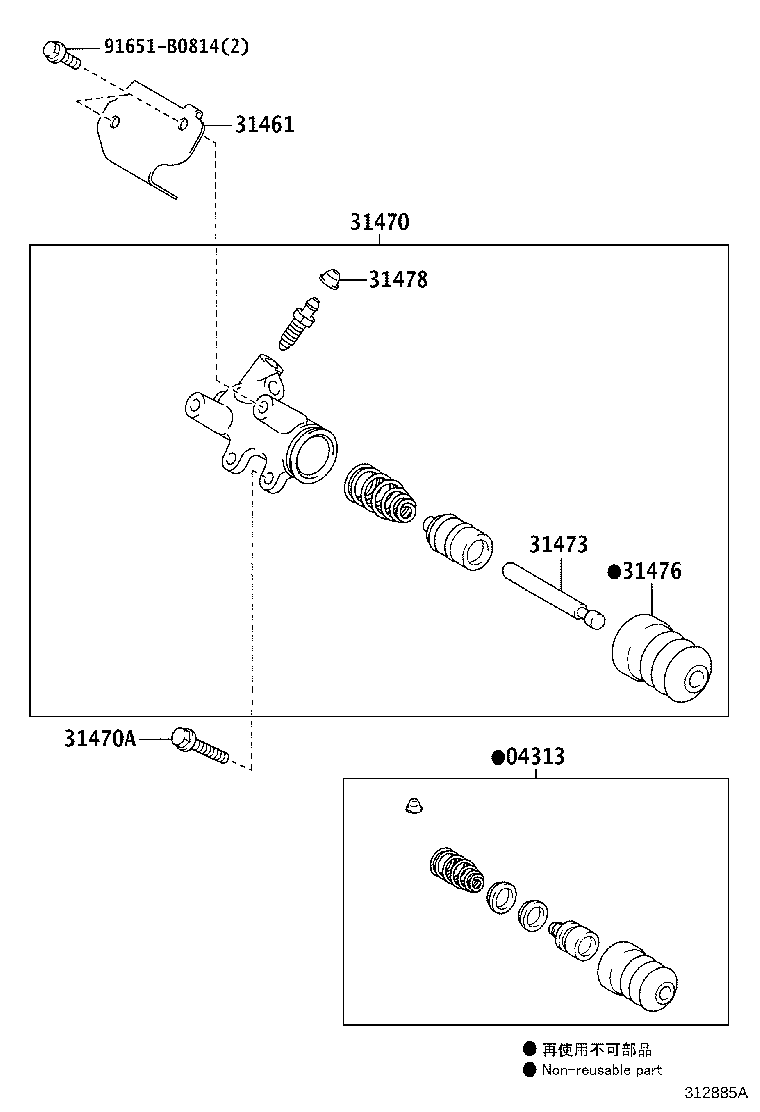

Click highlighted areas on diagram

diagram 04313 31461 31470 31470A 31473 31476 31478 91651B0814
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-52021

KSP130..N,R;KSP130..5D..G

 1
31461 - INSULATOR, RELEASE CYLINDER HEAT
31461-0D011

KSP130..N,R;KSP130..5D..G

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-52102

KSP130

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60822

KSP130

*8-1.25PX22-17.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30070

KSP130

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

KSP130

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

KSP130,NLP130,NSP130..MTM

 1
Common parts
91651-B0814
