KSP130L-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1710)1KRFE

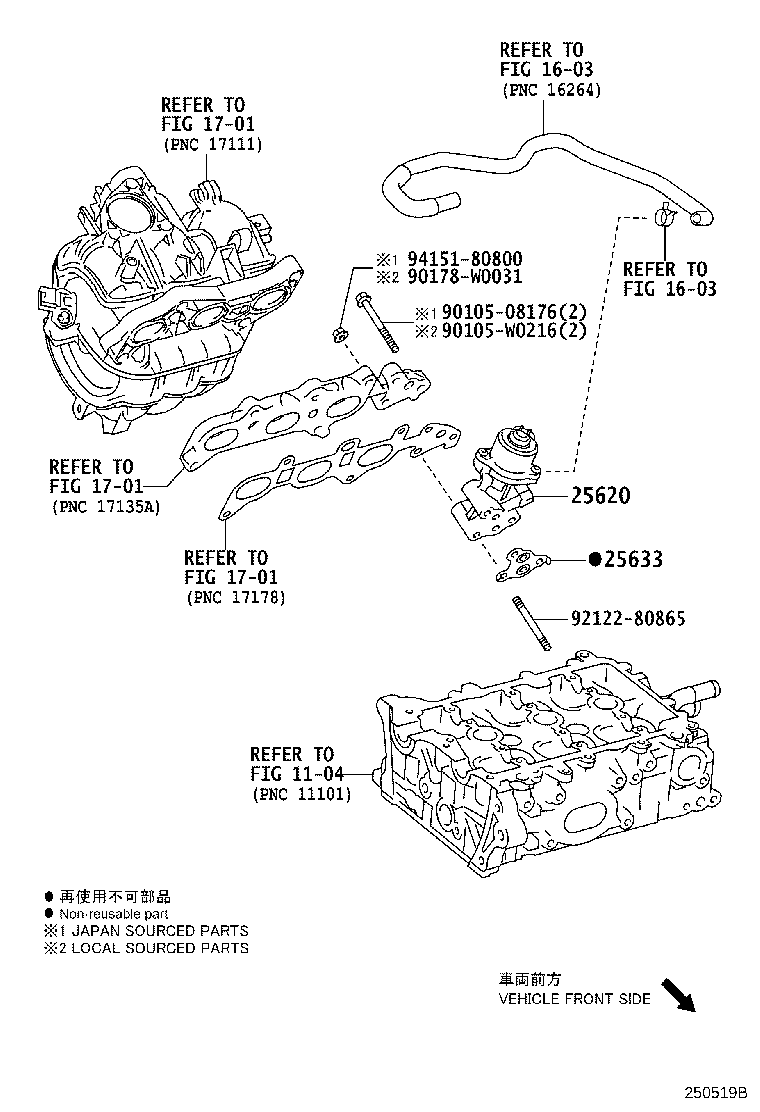

Click highlighted areas on diagram

diagram 1104 1603 1603 1701 1701 1701 25620 25633 9010508176 90105W0216 90178W0031 9212280865 9415180800
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-40030

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
25633 - GASKET, EGR VALVE
25633-0Q020

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
Common parts
90105-08176
90105-W0216
90178-W0031
92122-80865
94151-80800
Linked diagrams
1104
1603
1701
