KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)

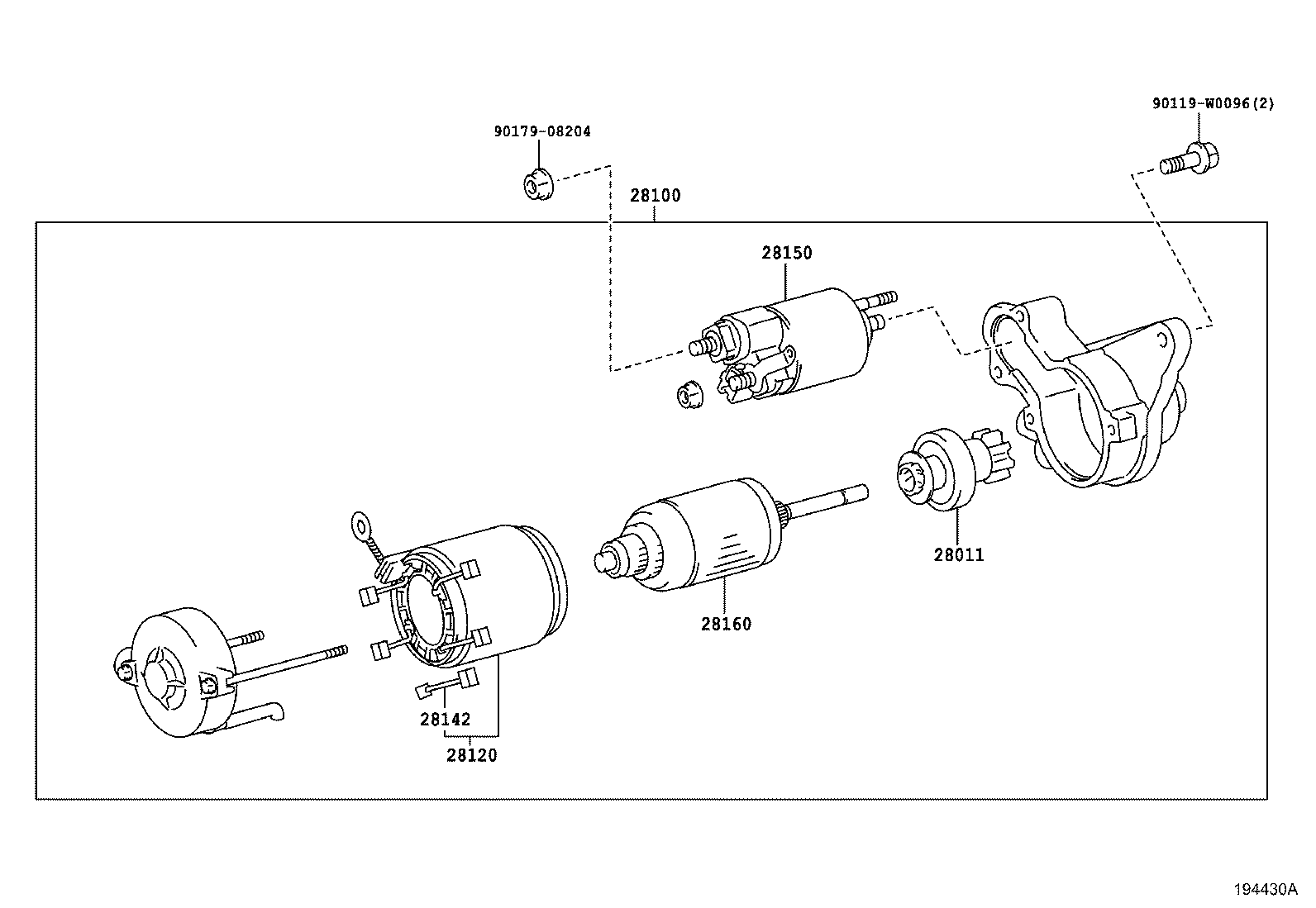

(1407- )1KRFE
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28011-40070 |
1KRFE..KSP130 |
1 | ||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Q080 |
1KRFE..KSP130 12V 0.8KW |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q081 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-40120 |
1KRFE..KSP130 |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10020 |
1KRFE..KSP130 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28150-40070 |
1KRFE..KSP130 |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-40070 |
1KRFE..KSP130 |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||

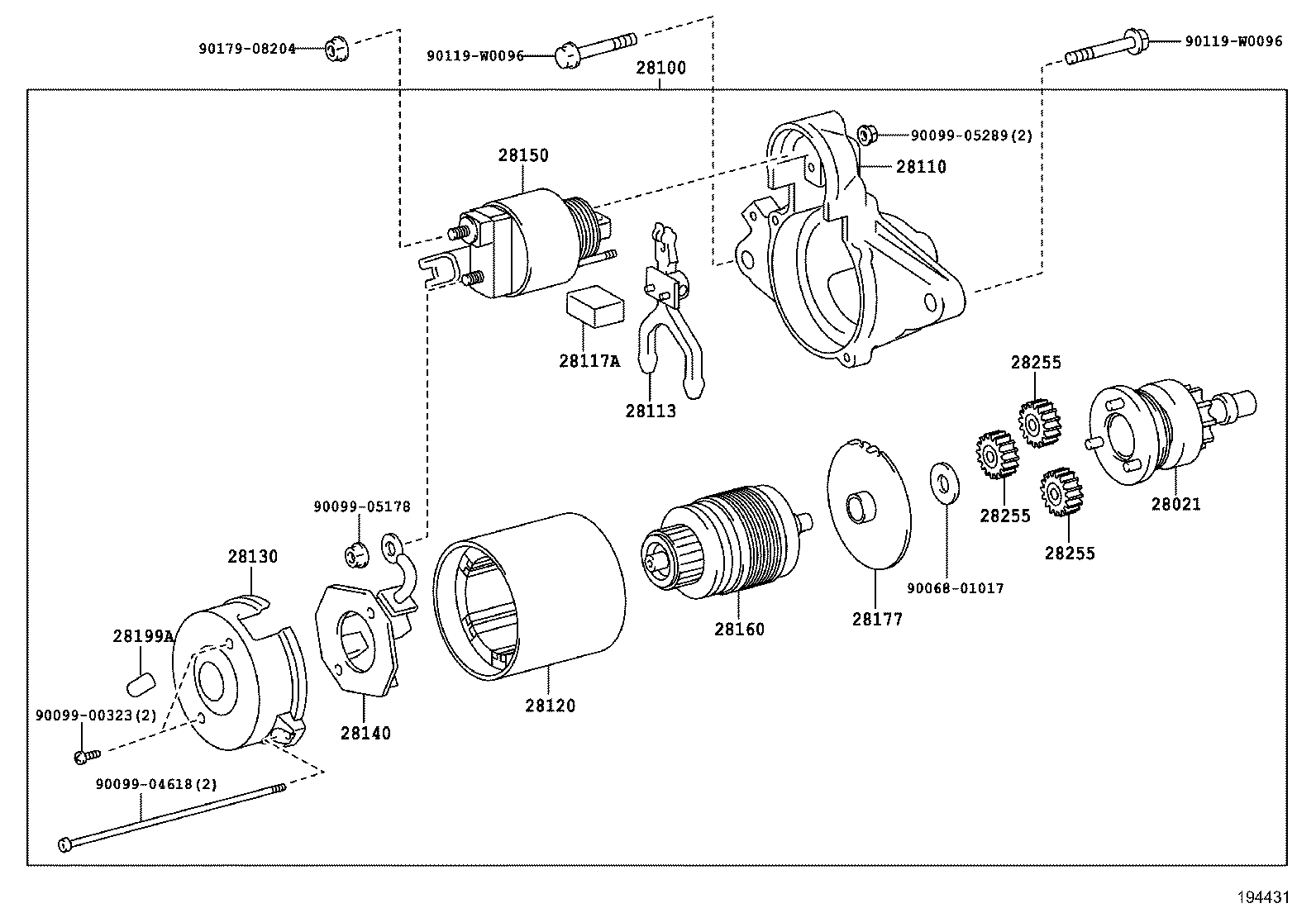

(1407- )1KRFE
12V 1.3KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-0J050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28021-0J050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Q080 |
1KRFE..KSP130 12V 0.8KW |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q081 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28110-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28110-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28113-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28117-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-40120 |
1KRFE..KSP130 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28130-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28130-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28140-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28150-40070 |
1KRFE..KSP130 |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-40070 |
1KRFE..KSP130 |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28177-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-0D180 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28199-0D180 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
3 | ||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
3 | ||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
3 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
3 | ||
| 28255-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
3 | ||
| Common parts | ||||
| 90068-01017 | ||||
| 90099-00323 | ||||
| 90099-04618 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||

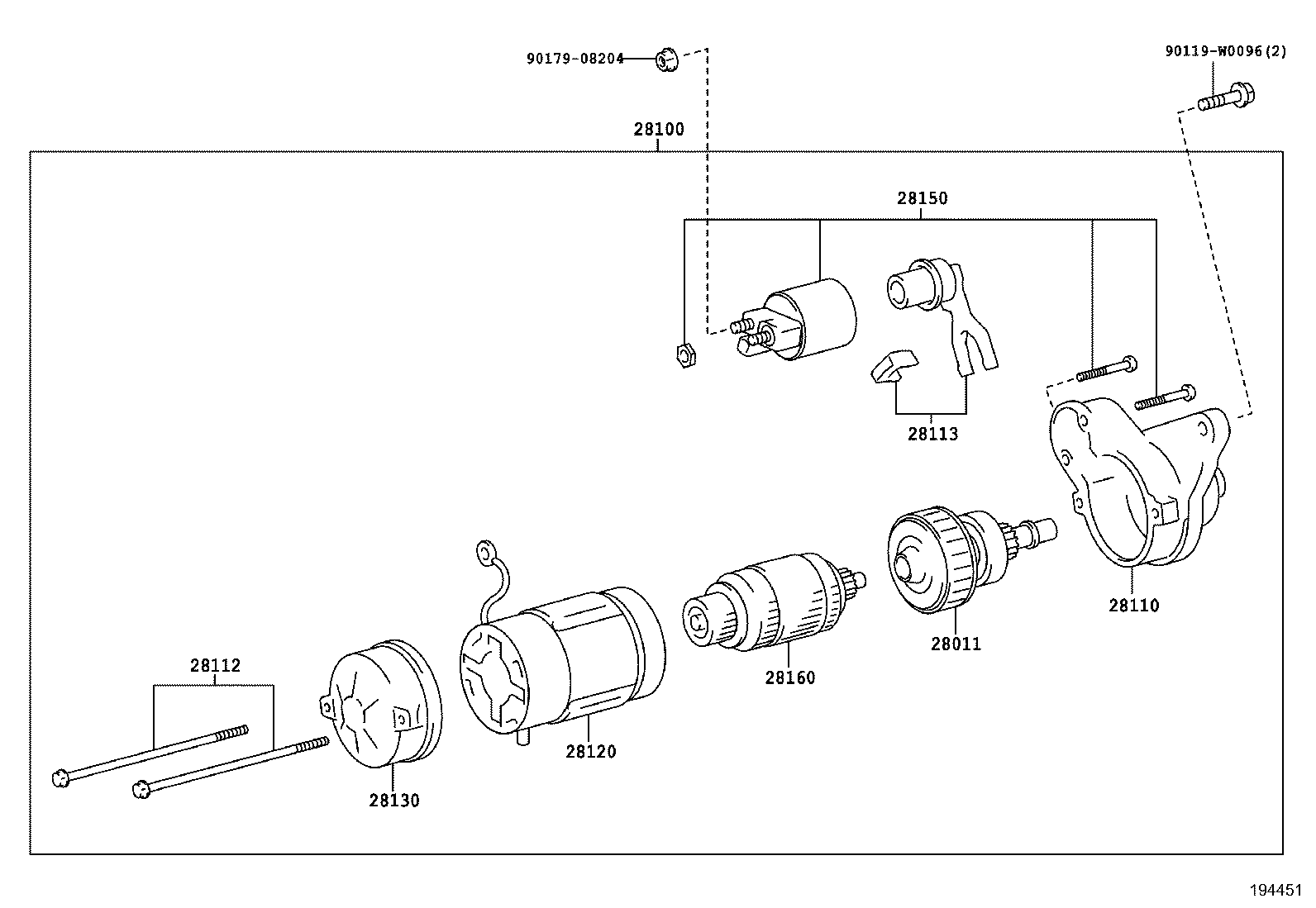

(1407- )1KRFE
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28011-40070 |
1KRFE..KSP130 |
1 | ||
| 28011-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0Q080 |
1KRFE..KSP130 12V 0.8KW |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM) |
1 | ||
| 28100-0Q120 |
1KRFE..KSP130..LHD..(N,R) 12V 1.0KW,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 1.3KW,COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28100-0Q081 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28110-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28110-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28110-0Q050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28112 - BOLT, HOUSING SET | ||||
| 28112-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28112-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28112-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28113-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28113-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28113-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28120-0Q050 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28120-40120 |
1KRFE..KSP130 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28130-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28130-37050 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28130-0Q120 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28150-40070 |
1KRFE..KSP130 |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28150-40090 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28150-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 28160-0Q120 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 28160-40070 |
1KRFE..KSP130 |
1 | ||
| 28160-0D180 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90119-W0096 | ||||
| 90179-08204 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
