KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)

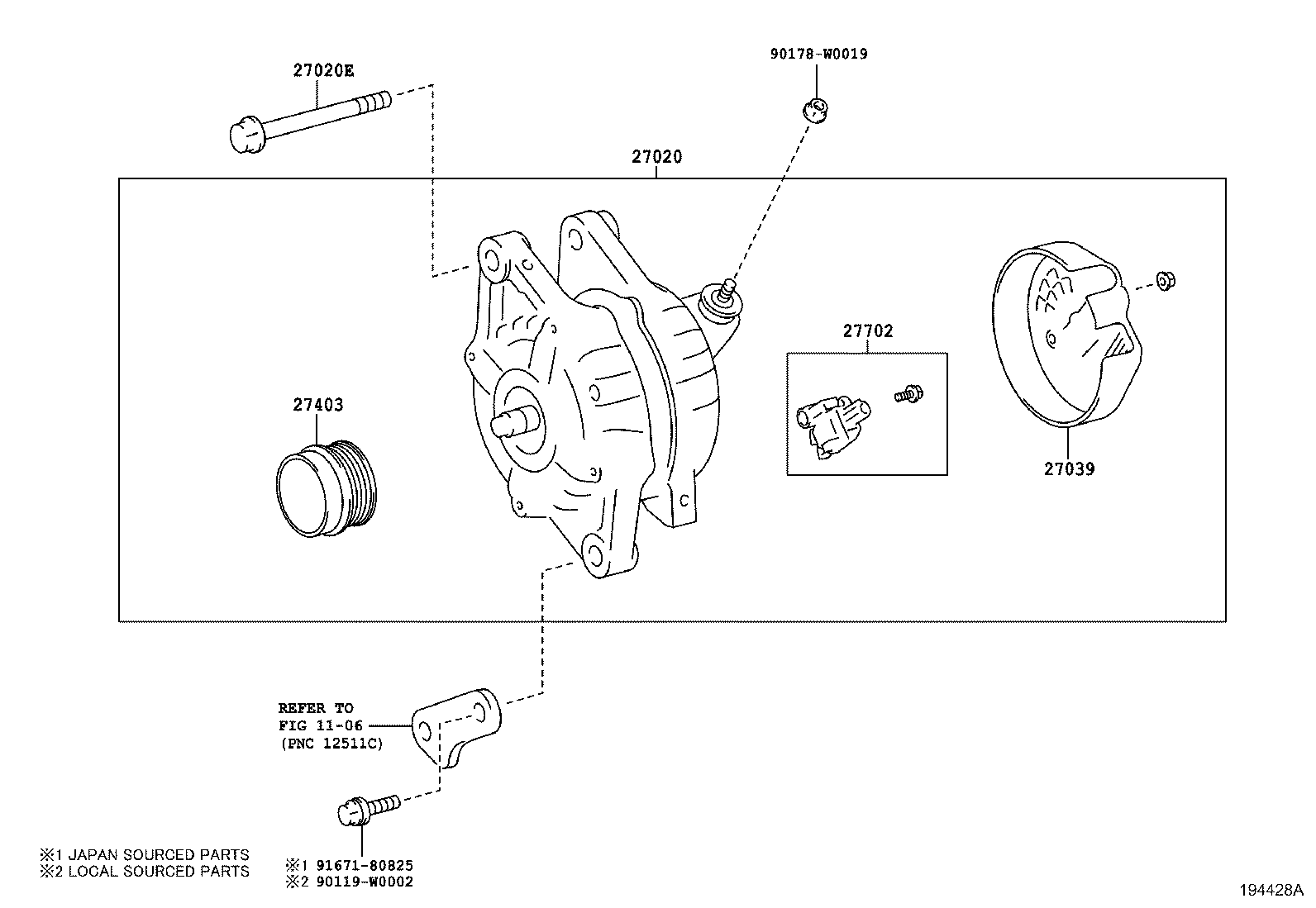

(1407- )1KRFE
12V 85A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q200 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G 12V 85A |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 100A,COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 100A,COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Q140 |
1KRFE,1NRFE..KSP130,NSP130..N,R;1KRFE,1NRFE..KSP130,NSP130..5D..(G,S) |
1 | ||
| 27039-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27403 - PULLEY SET, ALTERNATOR | ||||
| 27403-0Q180 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH | ||||
| 27702-0Q140 |
1KRFE,1NRFE..KSP130,NSP130..N,R;1KRFE,1NRFE..KSP130,NSP130..5D..(G,S) |
1 | ||
| Common parts | ||||
| 90119-W0002 | ||||
| 90178-W0019 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||

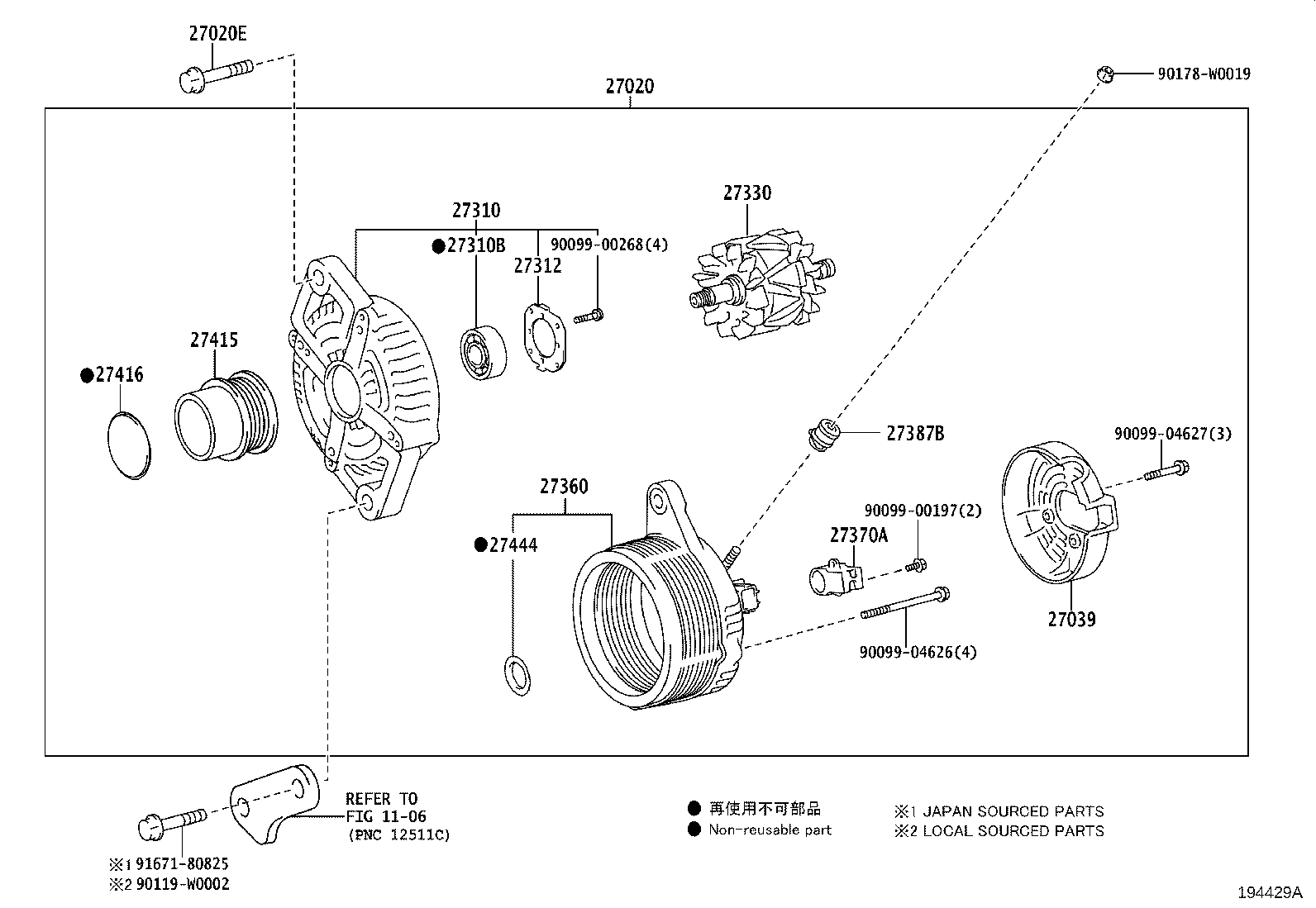

(1407- )1KRFE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Q200 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G 12V 85A |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 100A,COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R) 12V 100A,WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27060-0Q151 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G 12V 100A,COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0Q140 |
1KRFE,1NRFE..KSP130,NSP130..N,R;1KRFE,1NRFE..KSP130,NSP130..5D..(G,S) |
1 | ||
| 27039-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27039-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Q131 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27310-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27310-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27310-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27310-0Q131 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 90099-10223 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27312-72100 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27312-72100 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27330-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27330-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27330-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27330-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27360-0Q131 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27360-0Q131 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27360-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27360-0Q131 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27370-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27370-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27370-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27370-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27387-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27387-0Y150 |
1KRFE,1NRFE..KSP130,NSP130..LHD..(N,R);1KRFE,1NRFE..KSP130,NSP130..LHD..5D..(G,S) COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27387-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27387-0Y150 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W220 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27415-0W220 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27415-0W220 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27415-0W220 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27415-0W220 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27416-0W020 |
1KRFE..KSP130..LHD COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27416-0W020 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27416-0W020 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27416-0W020 |
1KRFE..KSP130..LHD..3D;1KRFE..KSP130..LHD..5D..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27444-21190 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 27444-21190 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 27444-21190 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM) |
1 | ||
| 27444-21190 |
1KRFE..KSP130..LHD..(N,R) WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90119-W0002 | ||||
| 90178-W0019 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
