KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)

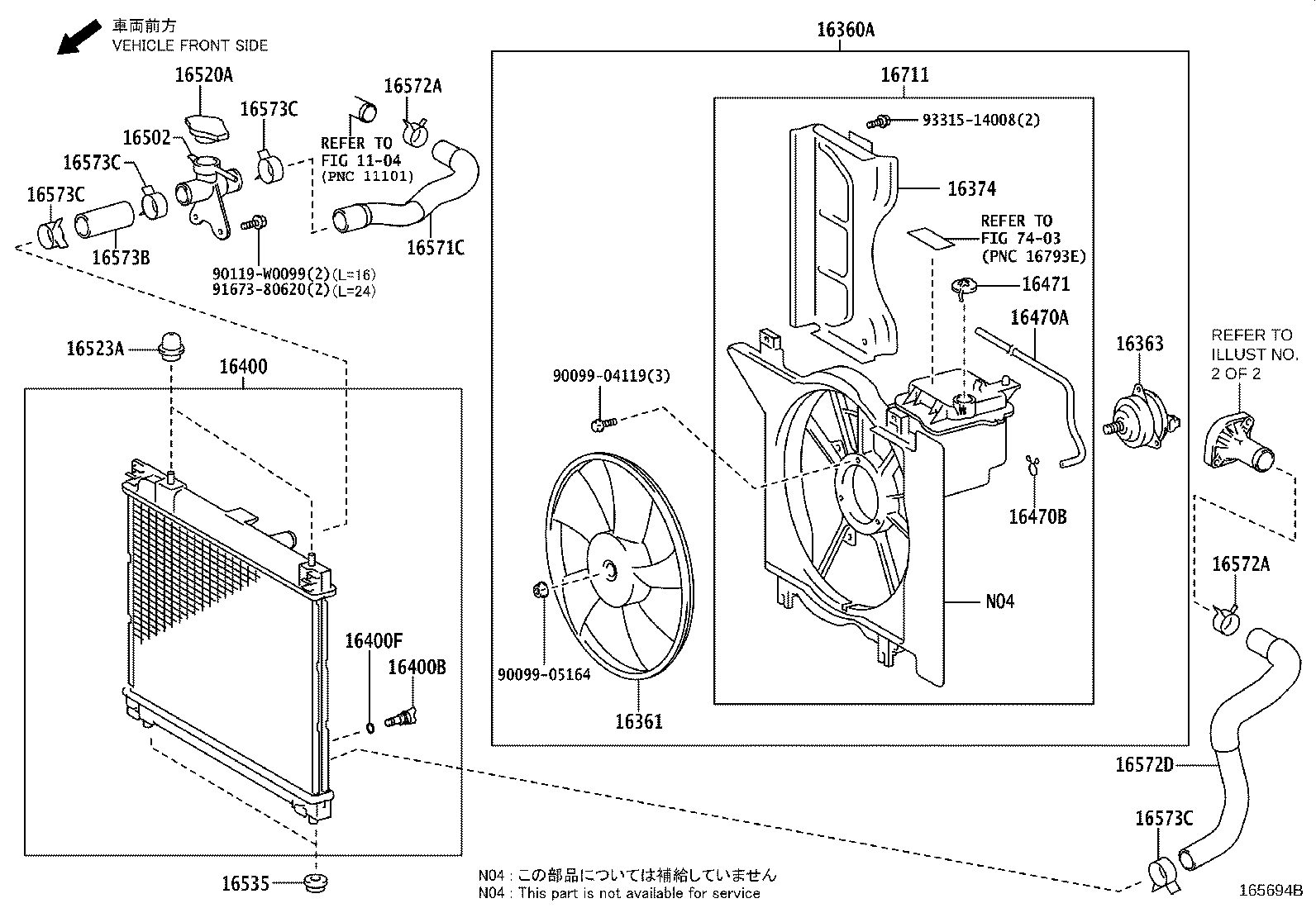

ILLUST NO. 1 OF 2(1407- )1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-0Q031 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16361 - FAN | ||||
| 16361-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0D090 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Q040 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0Q040 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12067 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G L=330 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-36020 |
1KRFE..KSP130 |
1 | ||
| 16401-31520 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-W0005 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Q021 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0015 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-W0015 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Q040 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-W0011 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-W0099 | ||||
| 91673-80620 | ||||
| 93315-14008 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7403 | ||||

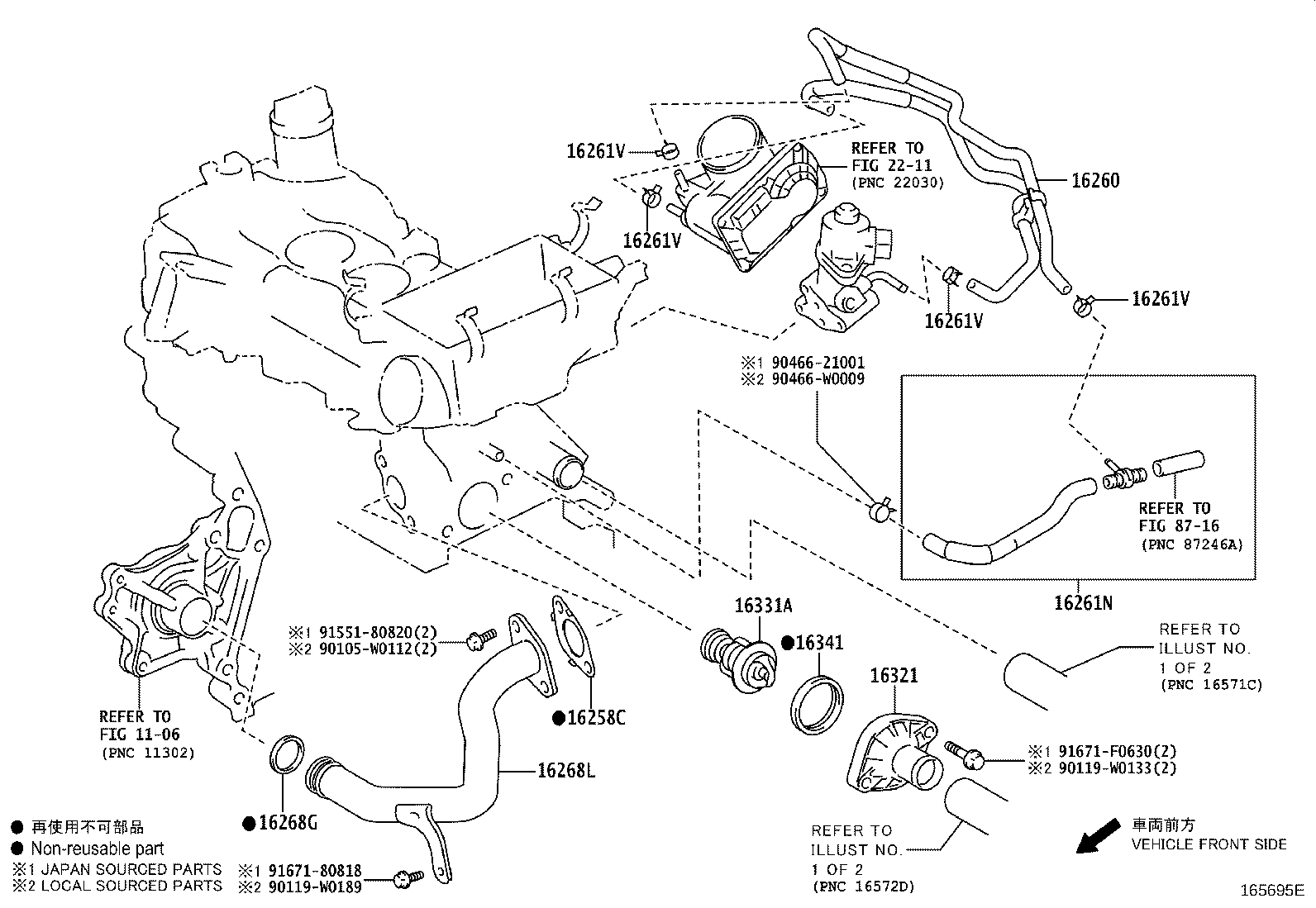

ILLUST NO. 2 OF 2(1407-1805)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40021 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0Q090 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16260-40180 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-0Q010 |
1KRFE..KSP130 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-0Q020 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 16268-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (L) |
1 | ||
| 16321-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03150 |
1KRFE..KSP130 *WAX 80-93 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KSP130 |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0133 | ||||
| 90119-W0189 | ||||
| 90466-21001 | ||||
| 90466-W0009 | ||||
| 91551-80820 | ||||
| 91671-80818 | ||||
| 91671-F0630 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 8716 | ||||
