KSP130L-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )1KRFE

Click highlighted areas on diagram

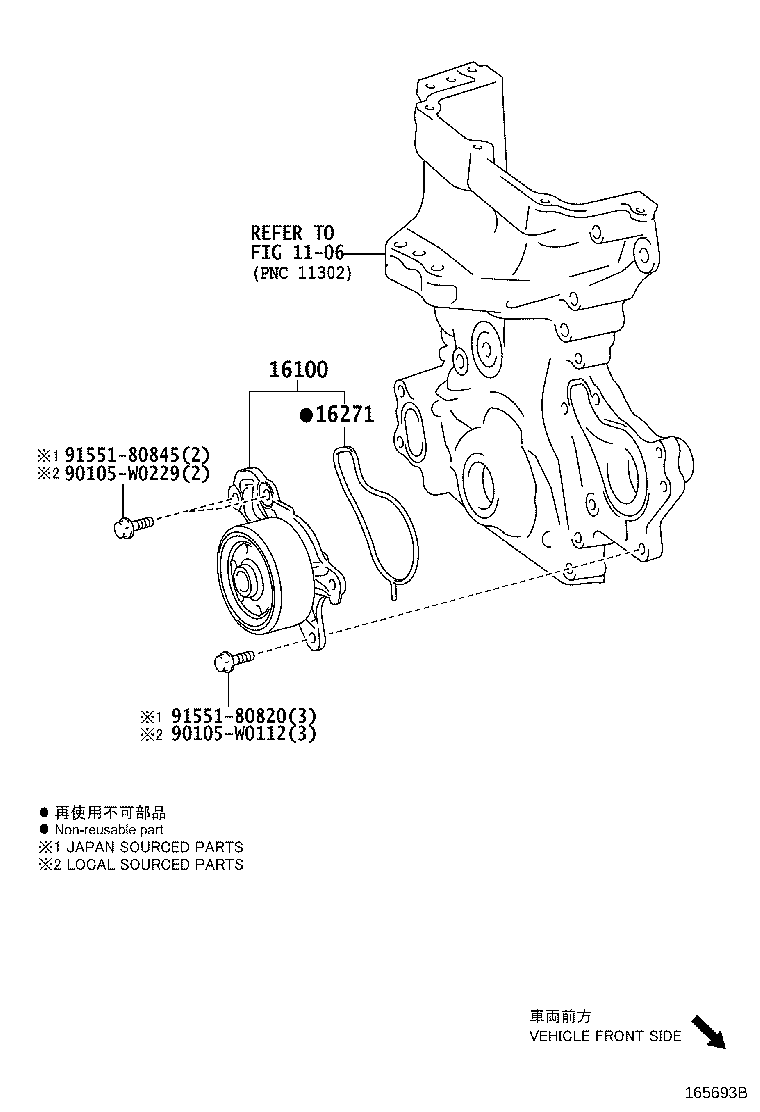

diagram 1106 16100 16271 90105W0112 90105W0229 9155180820 9155180845
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09640

1KRFE..KSP130

 1
16100-09641

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
16271 - GASKET, WATER PUMP
16271-0Q020

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
Common parts
90105-W0112
90105-W0229
91551-80820
91551-80845
Linked diagrams
1106
