KSP130L-CHMNKW (2014)

Toyota Yaris/Hybrid(Frp)

Production Jul 2014 - Mar 2017
Engine 1KRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )1KRFE

Click highlighted areas on diagram

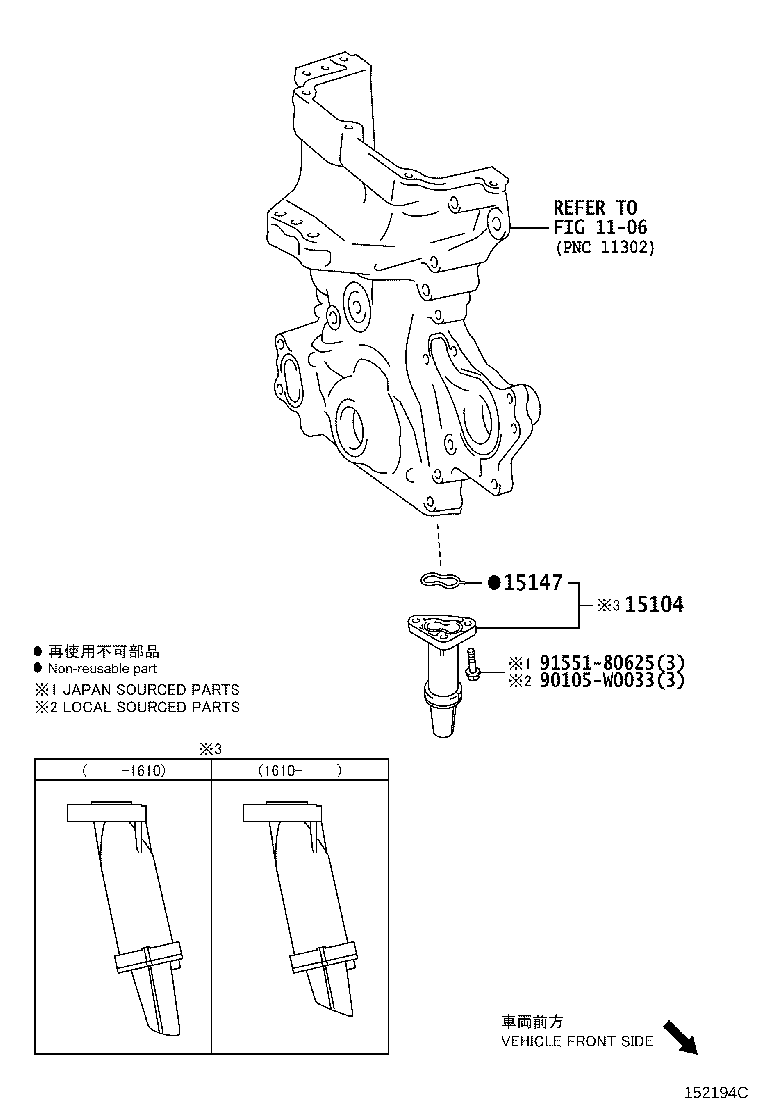

diagram 1106 15104 15147 90105W0033 9155180625
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-0Q020

1KRFE..KSP130

 1
15104-0Q021

1KRFE..KSP130

 1
15147 - GASKET, OIL STRAINER
15147-40040

1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G

 1
Common parts
90105-W0033
91551-80625
Linked diagrams
1106
