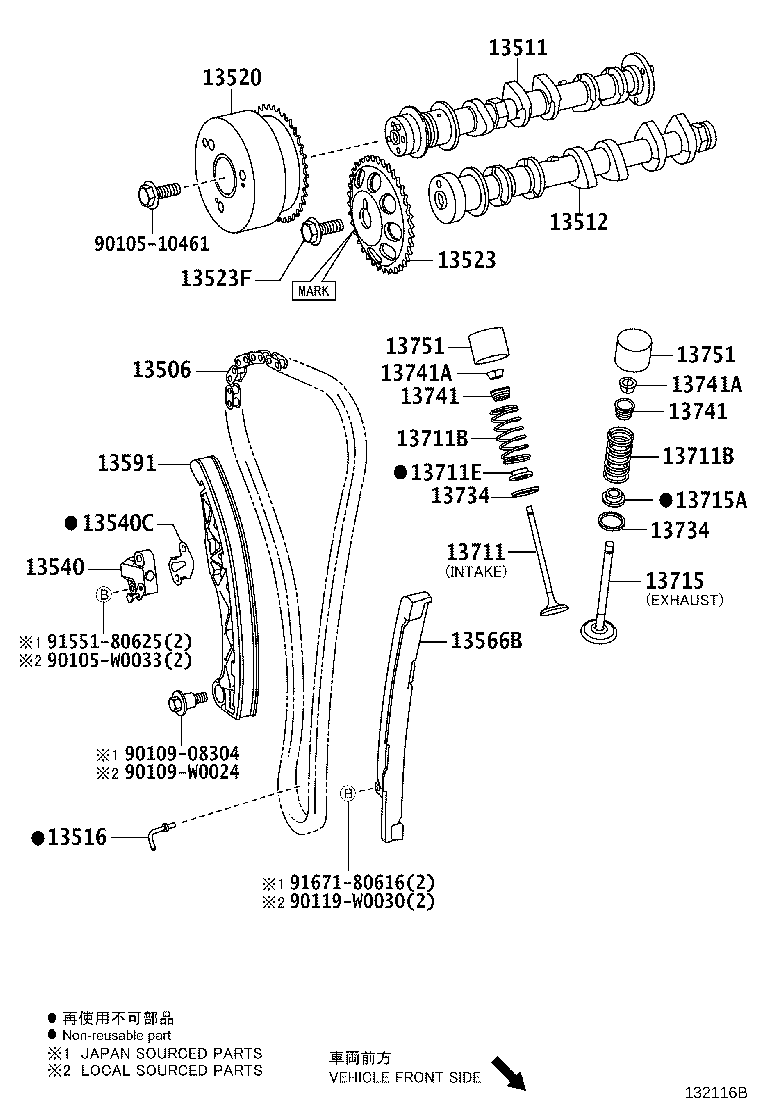

KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)
(1407-1805)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13516 - JET, OIL | ||||
| 13516-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-40020 |
1KRFE..KSP130 (J) |
1 | ||
| 13520-0Q010 |
1KRFE..KSP130 (L) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G MARK I |
1 | ||
| 13523-22020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G MARK IN |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90119-10889 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (L) |
1 | ||
| 13540-21020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-W0012 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-W0012 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
12 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90080-31064 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G INTAKE SIDE,(L) |
6 | ||
| 90913-02093 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G INTAKE SIDE,(J) |
6 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
6 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90080-31065 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G EXHAUST SIDE,(L) |
6 | ||
| 90913-02092 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G EXHAUST SIDE,(J) |
6 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-40010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (J) |
12 | ||
| 13741-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (L) |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (J) |
12 | ||
| 13741-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G (L) |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-0Q720 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.16 |
12 | ||
| 13751-0Q750 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.22 |
12 | ||
| 13751-0Q760 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.24 |
12 | ||
| 13751-0Q710 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.14 |
12 | ||
| 13751-0Q700 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.12 |
12 | ||
| 13751-0Q780 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.28 |
12 | ||
| 13751-0Q790 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.30 |
12 | ||
| 13751-0Q740 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.20 |
12 | ||
| 13751-0Q730 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.18 |
12 | ||
| 13751-0Q770 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.26 |
12 | ||
| 13751-0Q850 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.42 |
12 | ||
| 13751-0Q810 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.34 |
12 | ||
| 13751-0Q800 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.32 |
12 | ||
| 13751-0Q870 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.46 |
12 | ||
| 13751-0Q860 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.44 |
12 | ||
| 13751-0QA40 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.60 |
12 | ||
| 13751-0Q880 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.48 |
12 | ||
| 13751-0Q840 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.40 |
12 | ||
| 13751-0QA00 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.52 |
12 | ||
| 13751-0QA30 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.58 |
12 | ||
| 13751-0QA80 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.68 |
12 | ||
| 13751-0Q890 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.50 |
12 | ||
| 13751-0QA20 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.56 |
12 | ||
| 13751-0Q820 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.36 |
12 | ||
| 13751-0QA50 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.62 |
12 | ||
| 13751-0QA10 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.54 |
12 | ||
| 13751-0QA60 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.64 |
12 | ||
| 13751-0Q830 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.38 |
12 | ||
| 13751-0QA70 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.66 |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-0Q720 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.16 |
12 | ||
| 13751-0Q750 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.22 |
12 | ||
| 13751-0Q760 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.24 |
12 | ||
| 13751-0Q710 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.14 |
12 | ||
| 13751-0Q700 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.12 |
12 | ||
| 13751-0Q780 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.28 |
12 | ||
| 13751-0Q790 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.30 |
12 | ||
| 13751-0Q740 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.20 |
12 | ||
| 13751-0Q730 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.18 |
12 | ||
| 13751-0Q770 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.26 |
12 | ||
| 13751-0Q850 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.42 |
12 | ||
| 13751-0Q810 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.34 |
12 | ||
| 13751-0Q800 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.32 |
12 | ||
| 13751-0Q870 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.46 |
12 | ||
| 13751-0Q860 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.44 |
12 | ||
| 13751-0QA40 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.60 |
12 | ||
| 13751-0Q880 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.48 |
12 | ||
| 13751-0Q840 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.40 |
12 | ||
| 13751-0QA00 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.52 |
12 | ||
| 13751-0QA30 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.58 |
12 | ||
| 13751-0QA80 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.68 |
12 | ||
| 13751-0Q890 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.50 |
12 | ||
| 13751-0QA20 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.56 |
12 | ||
| 13751-0Q820 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.36 |
12 | ||
| 13751-0QA50 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.62 |
12 | ||
| 13751-0QA10 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.54 |
12 | ||
| 13751-0QA60 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.64 |
12 | ||
| 13751-0Q830 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.38 |
12 | ||
| 13751-0QA70 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G T=5.66 |
12 | ||
| Common parts | ||||
| 90105-10461 | ||||
| 90105-W0033 | ||||
| 90109-08304 | ||||
| 90109-W0024 | ||||
| 90119-W0030 | ||||
| 91551-80625 | ||||
| 91671-80616 | ||||
