KSP130L-CHMNKW (2014)
Toyota Yaris/Hybrid(Frp)
Production
Jul 2014
-
Mar 2017
Engine
1KRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1407-1805)1KRFE

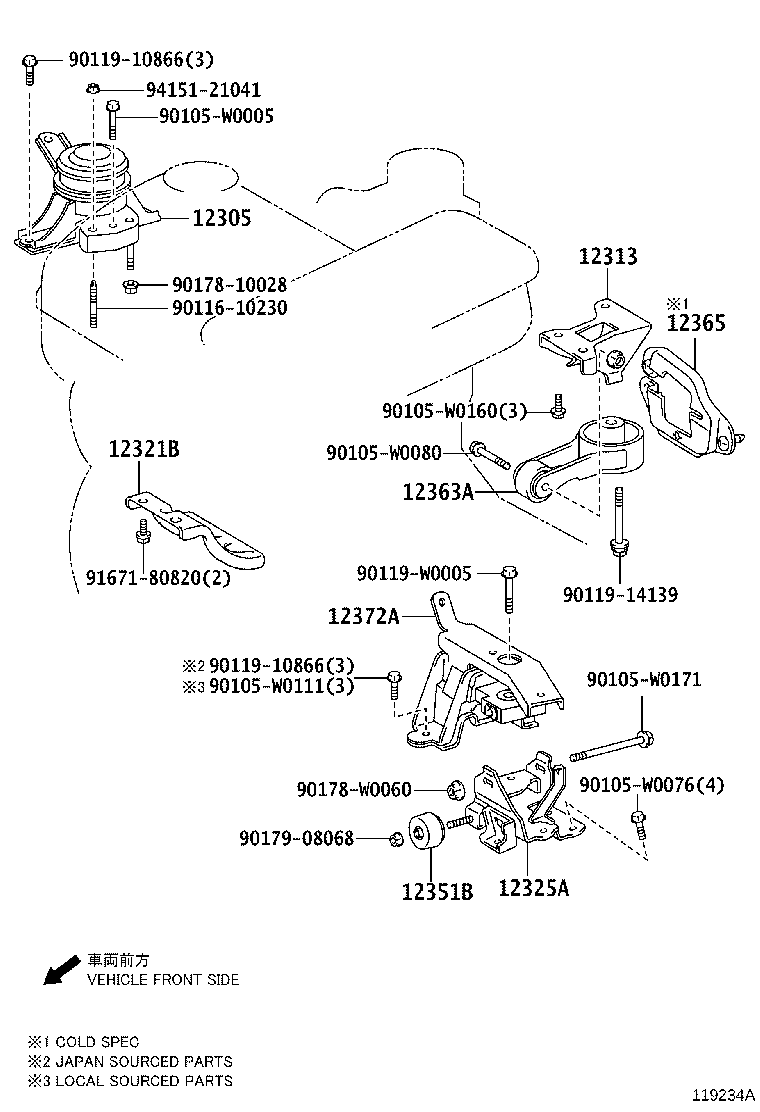

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Q022 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-0D080 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0Q010 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0Q030 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| 12365 - COVER, ENGINE MOVING CONTROL ROD | ||||
| 12365-40010 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITH(REAR HEATER DUCT) |
1 | ||
| 12365-40010 |
1KRFE..KSP130..LHD..(N,R);1KRFE..KSP130..LHD..5D..G COLD AREA SPEC&WITHOUT(REAR HEATER DUCT) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0Q020 |
1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G |
1 | ||
| Common parts | ||||
| 90105-W0005 | ||||
| 90105-W0076 | ||||
| 90105-W0080 | ||||
| 90105-W0111 | ||||
| 90105-W0160 | ||||
| 90105-W0171 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90119-W0005 | ||||
| 90178-10028 | ||||
| 90178-W0060 | ||||
| 90179-08068 | ||||
| 91671-80820 | ||||
| 94151-21041 | ||||
