NLP22R-CHMRXW (2001)
Toyota Yaris/Echo Verso

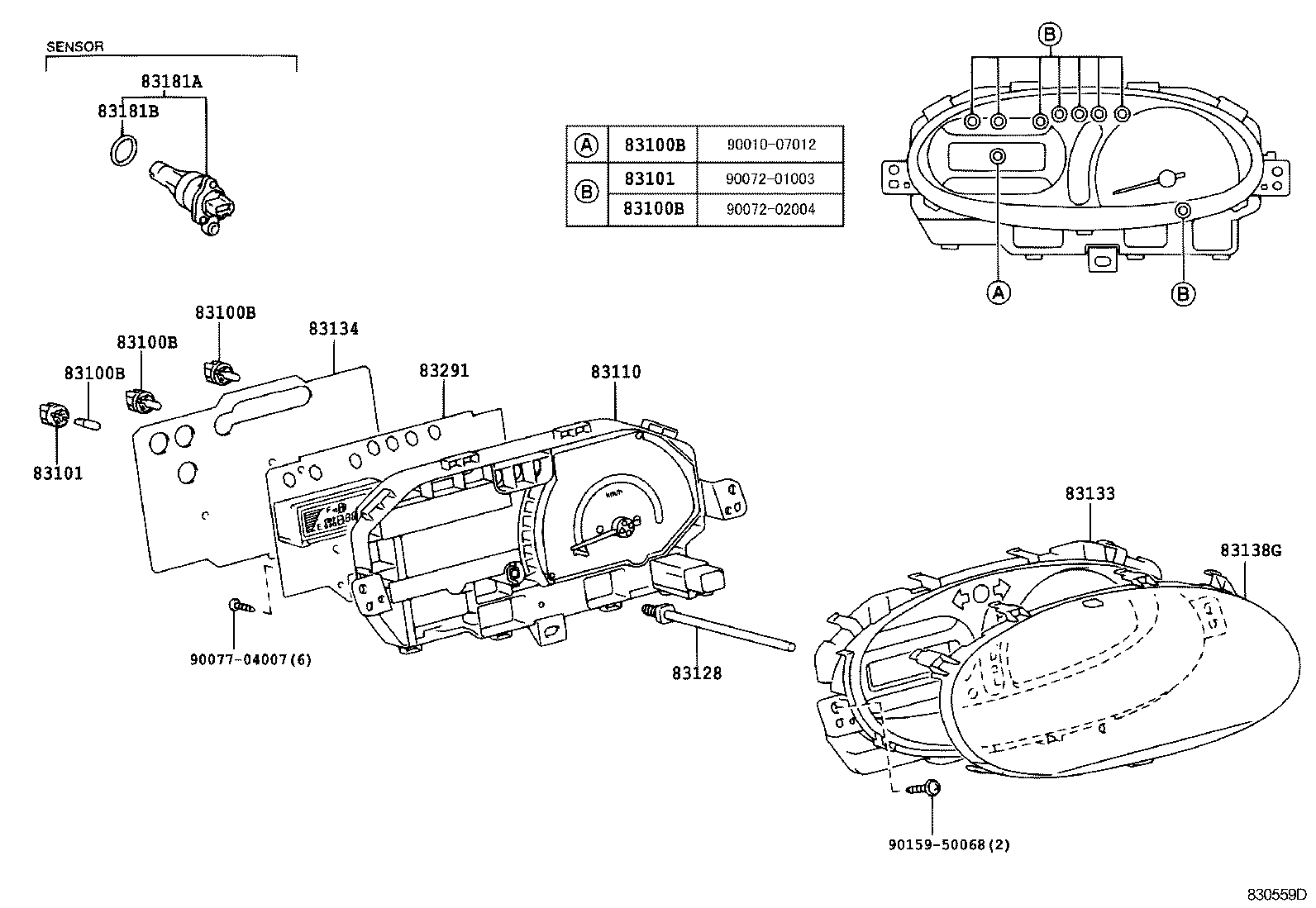

ILLUST NO. 1 OF 2(9908-0211)RHD
ANALOGUE METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83221-52210 |
NLP2#..RHD KM/H |
1 | ||
| 83221-52200 |
NLP2#..RHD MILE/H+KM/H |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-52040 |
NCP2#,NLP2#..4FC,5F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83811-52100 |
NCP2#,NLP2#..RHD DIGITAL METER |
1 | ||
| 83811-52280 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52340 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83821-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52250 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83852-52710 |
NLP2#..RHD DIGITAL METER |
1 | ||
| 83852-5C610 |
NLP2#..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52370 |
NLP2#..RHD ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83291-52380 |
NLP2#..RHD ANALOGUE METER,KM/H |
1 | ||
| 83291-52500 |
NLP2#..RHD DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83291-52780 |
NLP2#..RHD DIGITAL METER,KM/H |
1 | ||
| 83291-52480 |
NLP2#..RHD DIGITAL METER W/TACHO,MILE/H+KM/H |
1 | ||
| 83291-52770 |
NLP2#..RHD DIGITAL METER,MPH & KM/H |
1 | ||
| Common parts | ||||
| 90077-04007 | ||||
| 90159-50068 | ||||

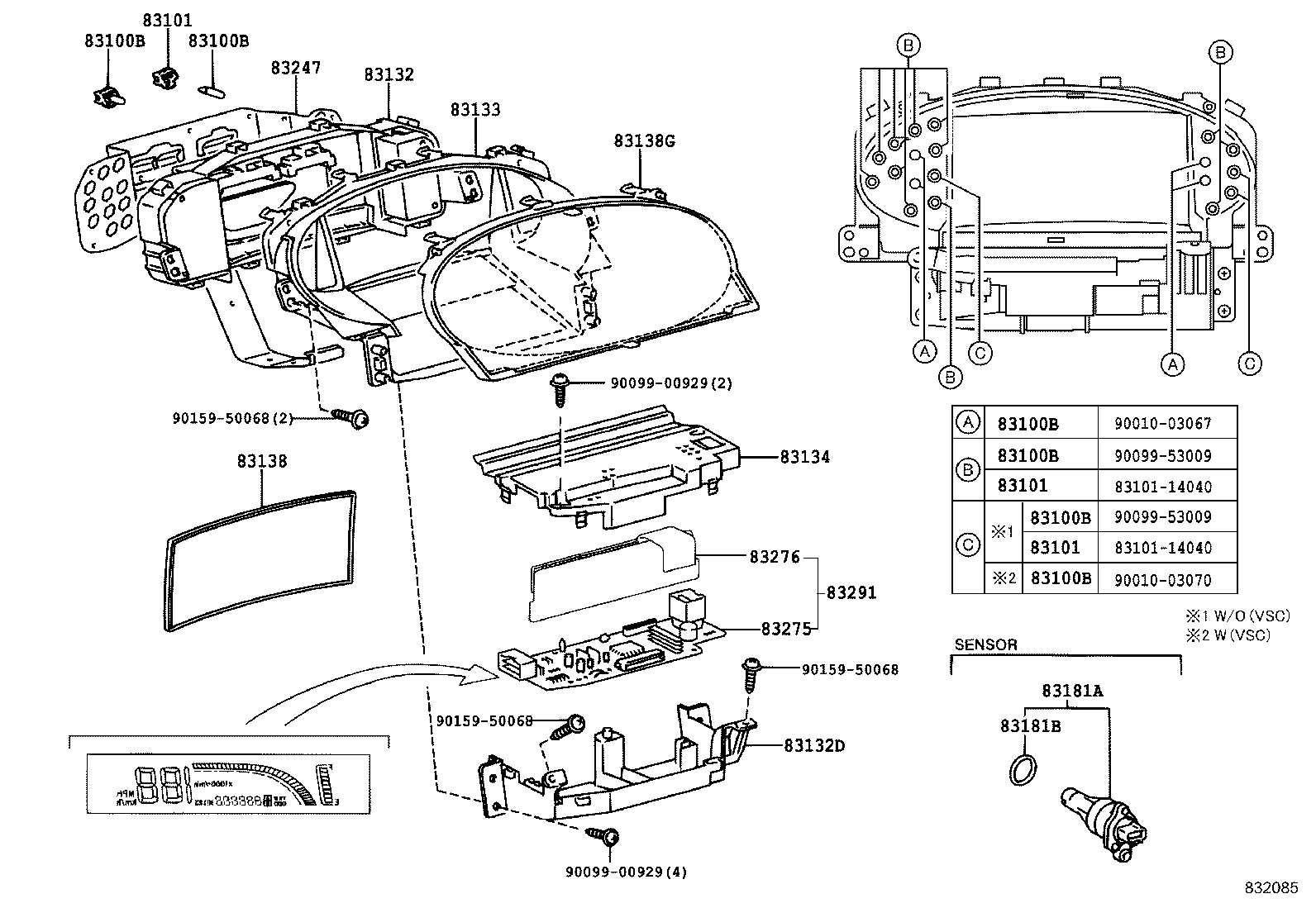

ILLUST NO. 1 OF 2(9908-0211)RHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C610 |
NLP2#..RHD |
1 | ||
| 83841-52650 |
NLP2#..RHD |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83842-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83811-52100 |
NCP2#,NLP2#..RHD DIGITAL METER |
1 | ||
| 83811-52280 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52340 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83821-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
NCP2#,NLP2# |
1 | ||
| 83852-52110 |
NCP2#,NLP2# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52250 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83852-52710 |
NLP2#..RHD DIGITAL METER |
1 | ||
| 83852-5C610 |
NLP2#..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52650 |
NLP2#..RHD |
1 | ||
| 83861-5C610 |
NLP2#..RHD |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52370 |
NLP2#..RHD ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83291-52380 |
NLP2#..RHD ANALOGUE METER,KM/H |
1 | ||
| 83291-52500 |
NLP2#..RHD DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83291-52780 |
NLP2#..RHD DIGITAL METER,KM/H |
1 | ||
| 83291-52480 |
NLP2#..RHD DIGITAL METER W/TACHO,MILE/H+KM/H |
1 | ||
| 83291-52770 |
NLP2#..RHD DIGITAL METER,MPH & KM/H |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||

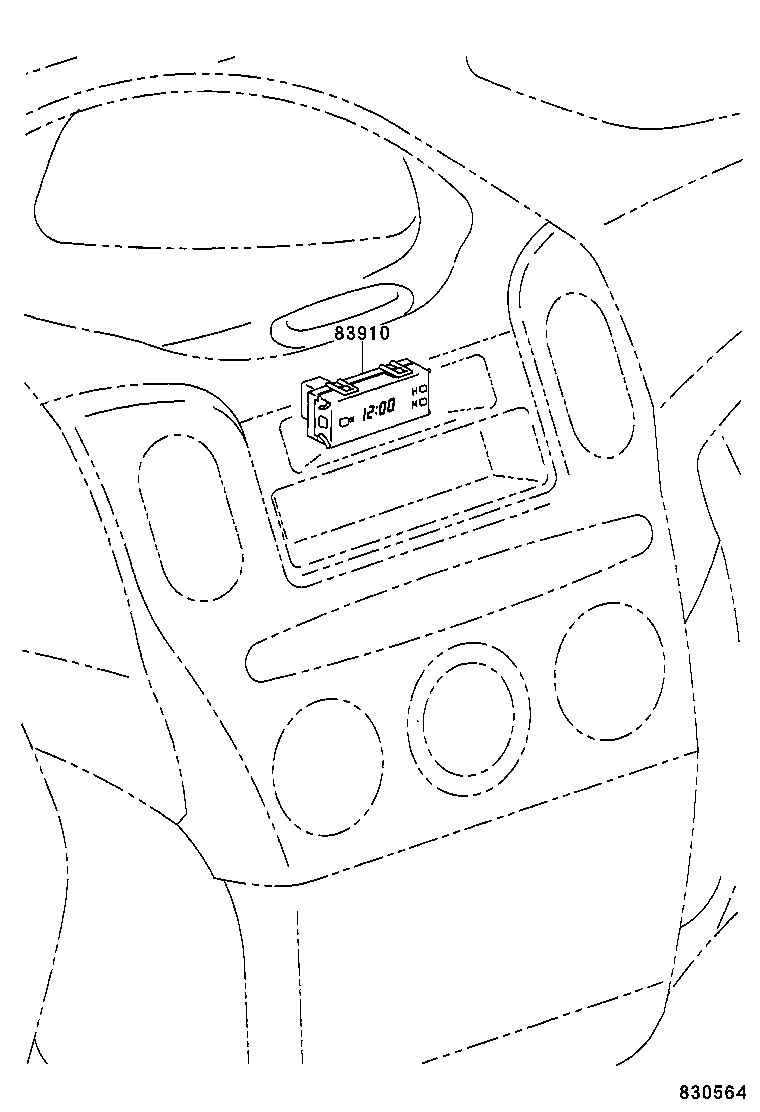

ILLUST NO. 2 OF 2(9908-0509)
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
NCP2#,NLP2# |
1 | ||
| 83910-20720 |
NCP2#,NLP2# |
1 | ||

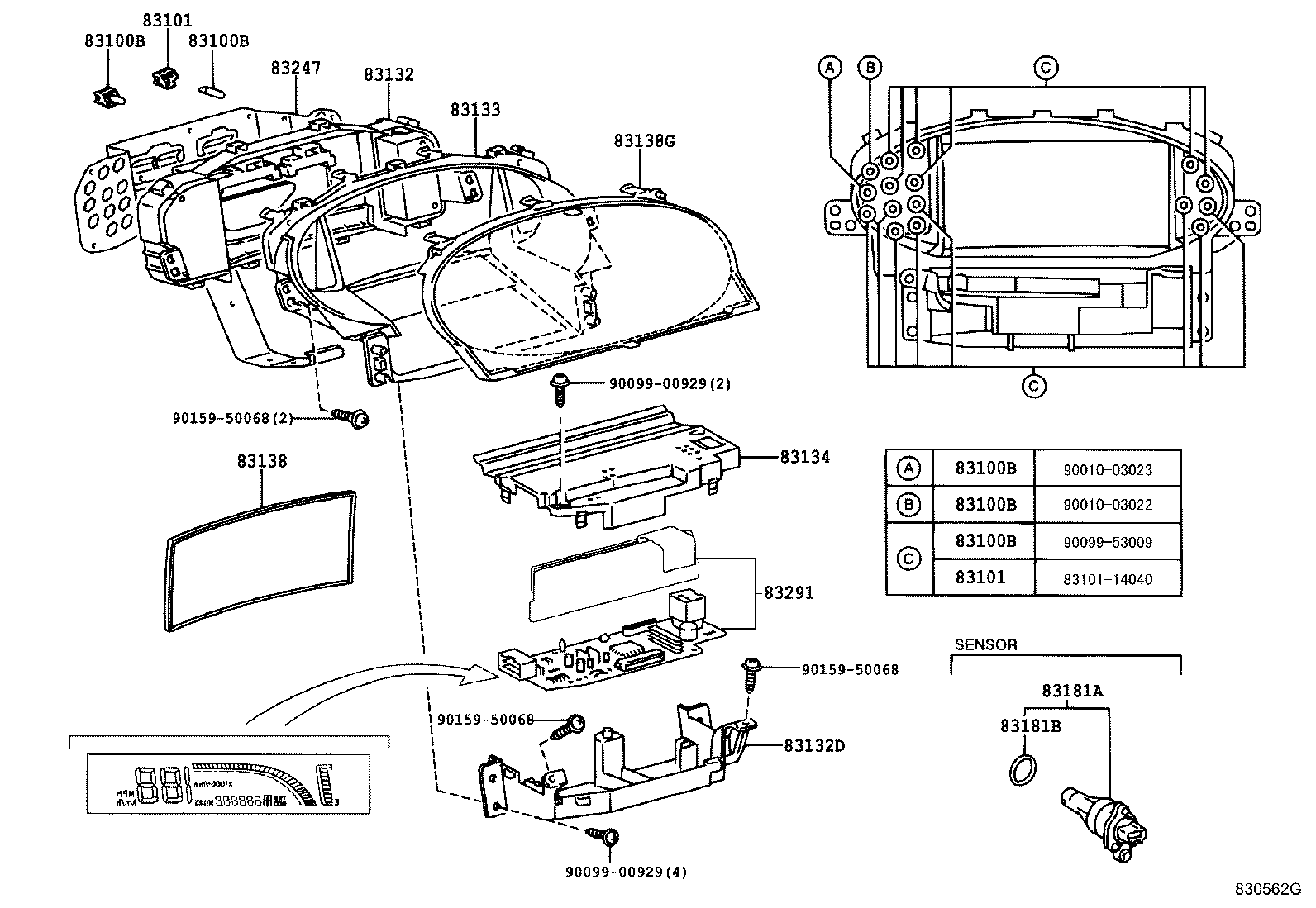

ILLUST NO. 1 OF 2(0211- )RHD
DIGITAL METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-07012 |
NCP2#,NLP2#..4FC,5F 14V 2W,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90010-03067 |
NCP2#,NLP2# 14V 1.12W |
1 | ||
| 90010-03022 |
NCP2#,NLP2# 14V 1.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET) |
1 | ||
| 90010-03023 |
NCP2#,NLP2# 14V 1.4W,W(BLUE CAP),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90072-02004 |
NCP2#,NLP2#..4FC,5F 14V 1.1W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
NCP2#,NLP2# 14V0.84W W/O(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 90072-01003 |
NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# |
1 | ||
| 83101-14040 |
NCP2#,NLP2# DIGITAL METER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-5C610 |
NLP2#..RHD |
1 | ||
| 83841-52650 |
NLP2#..RHD |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83842-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83811-52100 |
NCP2#,NLP2#..RHD DIGITAL METER |
1 | ||
| 83811-52280 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-52340 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83821-52100 |
NCP2#,NLP2#..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-52110 |
NCP2#,NLP2# |
1 | ||
| 83852-52110 |
NCP2#,NLP2# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-52250 |
NCP2#,NLP2#..RHD..(4FC,5F) |
1 | ||
| 83852-52710 |
NLP2#..RHD DIGITAL METER |
1 | ||
| 83852-5C610 |
NLP2#..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181-12020 |
NCP2#,NLP2# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 96711-24030 |
NCP2#,NLP2# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-52650 |
NLP2#..RHD |
1 | ||
| 83861-5C610 |
NLP2#..RHD |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83275-52770 |
NLP2#..RHD DIGITAL METER,MPH & KM/H |
1 | ||
| 83275-52780 |
NLP2#..RHD DIGITAL METER,KM/H |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-52770 |
NLP2#..RHD DIGITAL METER,MPH & KM/H |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-52370 |
NLP2#..RHD ANALOGUE METER,MILE/H+KM/H |
1 | ||
| 83291-52380 |
NLP2#..RHD ANALOGUE METER,KM/H |
1 | ||
| 83291-52500 |
NLP2#..RHD DIGITAL METER W/TACHO,KM/H |
1 | ||
| 83291-52780 |
NLP2#..RHD DIGITAL METER,KM/H |
1 | ||
| 83291-52480 |
NLP2#..RHD DIGITAL METER W/TACHO,MILE/H+KM/H |
1 | ||
| 83291-52770 |
NLP2#..RHD DIGITAL METER,MPH & KM/H |
1 | ||
| Common parts | ||||
| 90099-00929 | ||||
| 90159-50068 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
