NLP22R-CHMRXW (2001)

Toyota Yaris/Echo Verso

Production Oct 2001 - Sep 2005
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )1NDTV

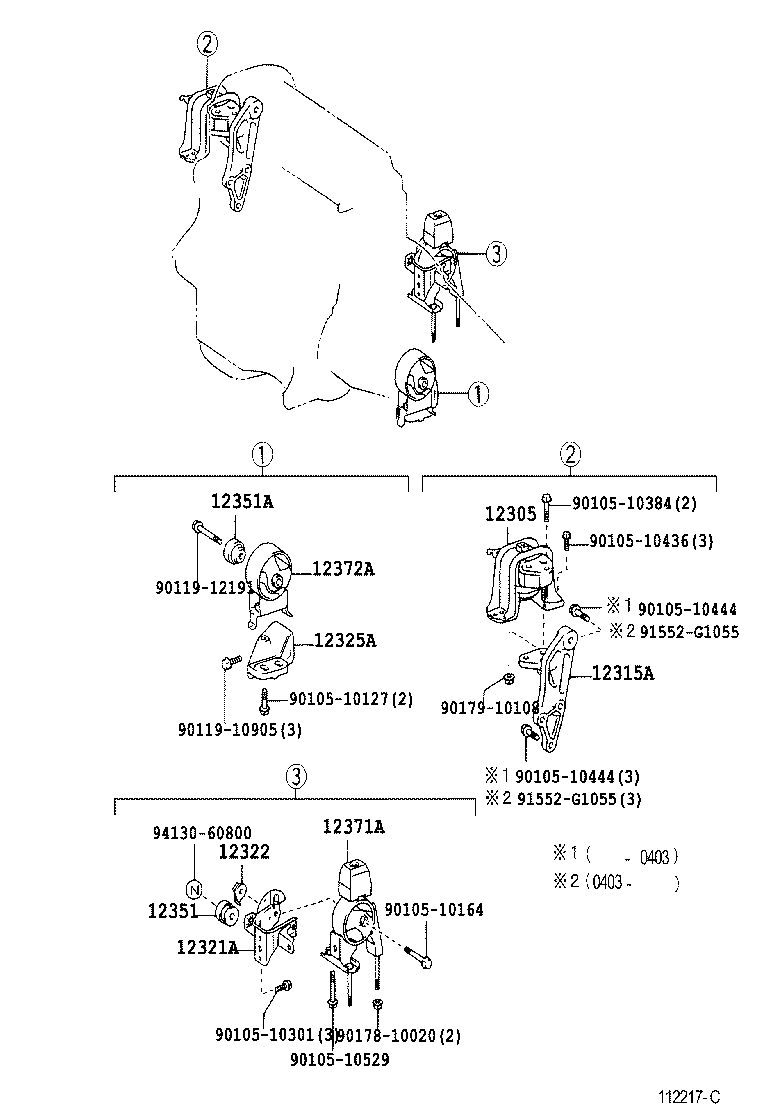

Click highlighted areas on diagram

diagram 12305 12315A 12321A 12322 12325A 12351 12351A 12371A 12372A 9010510127 9010510164 9010510301 9010510384 9010510436 9010510444 9010510444 9010510529 9011910905 9011912191 9017810020 9017910108 91552G1055 91552G1055 9413060800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-33020

1NDTV..NLP2#

 1
12305-33020

1NDTV..NLP2#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-33020

1NDTV..NLP2#

 1
12315-33020

1NDTV..NLP2#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-21100

1NDTV..NLP2#

 1
12321-21100

1NDTV..NLP2#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-23020

1N#,2NZFE..NCP2#,NLP2#

 1
12322-23020

1N#,2NZFE..NCP2#,NLP2#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21020

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12325-21020

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-11130

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12351-11130

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-11030

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12351-11030

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-33020

1NDTV..NLP2#

 1
12371-33020

1NDTV..NLP2#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-23010

1N#,2NZFE..NCP2#,NLP2#..5F

 1
12372-23010

1N#,2NZFE..NCP2#,NLP2#..5F

 1
Common parts
90105-10127
90105-10164
90105-10301
90105-10384
90105-10436
90105-10444
90105-10529
90119-10905
90119-12191
90178-10020
90179-10108
91552-G1055
94130-60800
